APC SYH2K6RMT Accessory
Part #: SYH2K6RMT | SKU: APC92519

APC Back-UPS ES, 550VA/330W, Input 120V/Output 120V

APC SYH2K6RMT Accessory

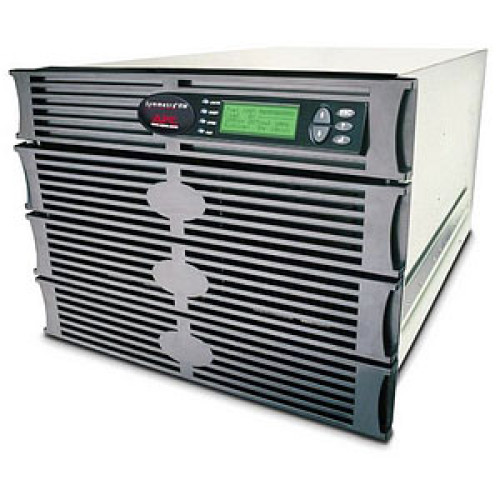

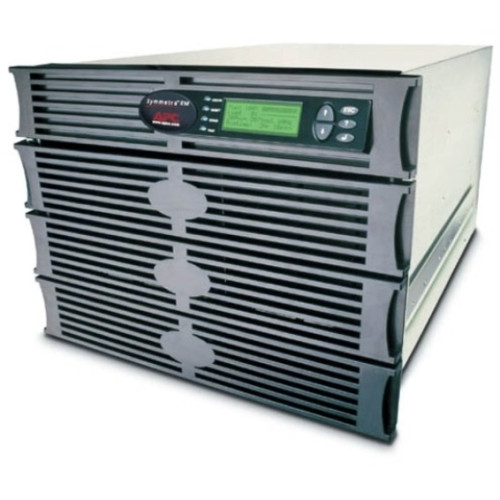

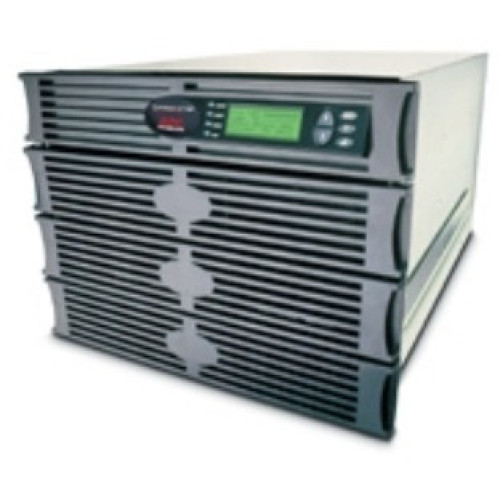

Part Details: APC Symmetra RM 2kVA Scalable to 6kVA UPS - 12.3 Minute Full Load - 6kVA - SNMP Manageable

Need a different version of the APC Back-UPS Series Accessory? View all 485 configurations

MSRP: $7,345.00 Price: $5,592.33

Additional Information

Manufacturer	APC
Model Name	Back-UPS Series

APC Back-UPS Series Specs (pdf)

Technical Information

Receptacles:
- 2 x NEMA L6-20R
- 1 x NEMA L6-30R
Plug/Connector Type:
- Hard Wire 3-wire PH + PH + G
- NEMA L6-30P

General Information

Product Type: Dual Conversion Online UPS
Product Series: RM
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Name: Symmetra RM 2kVA Scalable to 6kVA UPS
Product Line: Symmetra

Physical Characteristics

Height: 14"
Width: 19"
Depth: 29"
Form Factor: 8U Rack-mountable
Weight (Approximate): 164 lb
Power Cord/Cable: 6 ft

Interfaces/Ports

Modular Slots: 2 x SmartSlot

Other

Certifications & Standards:
- CSA
- FCC Part 15 Class A
- UL 1778
Additional Information:
- Automatic restart of loads after UPS shutdown
- InfraStruXure Manager Compatible
- Predictive failure notification
- Automatic self-test
- Power conditioning
- Frequency and voltage regulation
- Input Power Factor Correction
- Cold-start capable
- Safety-agency approved
- Crest Factor up to 5 : 1

Power Description

Input Voltage Range:
- 208 V AC Nominal
- 155 V AC to 276 V AC Mains Operation
Load Capacity: 6 kVA/4.20 kW
Input Voltage: 220 V AC
Output Voltage:
- 208 V AC Nominal
- 240 V AC Nominal
Frequency:
- 50 to 60 Hz Input
- 57 to 63 Hz Output
Waveform Type: Sine Wave

Management

Network Management: SNMP Manageable
Battery Management: Intelligent Battery Management
Alarm:
- On Battery
- Low Battery
- Configurable Delay
Bypass Switch:
- Automatic
- Manual
Emergency Power OFF: Yes
Overload Protection: Resettable circuit breakers

Environmental Conditions

Altitude:
- 0 ft to 10000 ft Operating
- 0 ft to 50000 ft Storage
Humidity:
- 0 to 95% Relative Humidity Operating
- 0 to 95% Relative Humidity Storage
Temperature:
- 32°F (0°C) to 104°F (40°C) Operating
- 5°F (-15°C) to 113°F (45°C) Storage
Thermal Dissipation: 430 BTU/h

Battery Information

Batteries: Spill-proof, Maintenance-free Sealed Lead Acid User Replaceable Hot-swappable
Backup/Run Time:
- 0.21 Hour 1.40 kW Full Load
- 0.49 Hour 700 W Half Load
Additional Battery Connections: 4

Warranty

Limited Warranty: 2 Year
Parts Warranty/Labor: 2 Year

Controls/Indicators

Control Panel: Multi-function LCD status and control console

Scalability

Power Range: 2 kVA to 6 kVA / 1.40 kW to 4.20 kW
