APC SYH4K6RMT-P1 Accessory
Part #: SYH4K6RMT-P1 | SKU: APC91264

APC Back-UPS ES, 550VA/330W, Input 120V/Output 120V

APC SYH4K6RMT-P1 Accessory

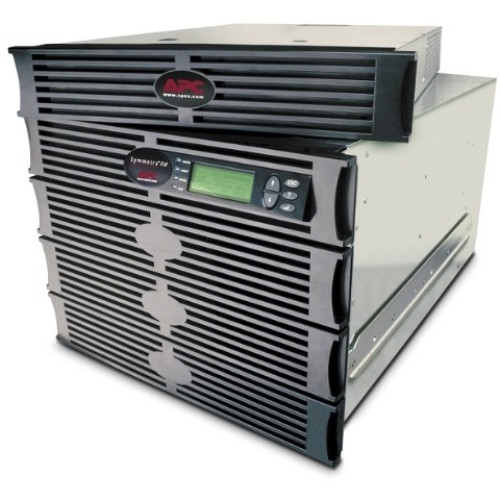

Part Details: APC Symmetra RM 4kVA UPS - 12.2 Minute Full Load - 4kVA - SNMP Manageable
MSRP: $14,435.00 Price: $10,985.16

Additional Information

Manufacturer APC
Model Name Back-UPS Series

Technical Information

  • Receptacles:
    • 12 x NEMA 5-20R
    • 2 x NEMA L6-20R
  • Plug/Connector Type:
    • NEMA L6-30P (30A Twist-Lock)
    • Hard Wire 3-wire 2PH + G
  • Dataline Protection: RJ-45 10/100Base-TX

General Information

  • Product Type: Dual Conversion Online UPS
  • Product Series: RM
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Name: Symmetra RM 4kVA UPS
  • Product Line: Symmetra

Physical Characteristics

  • Height: 18"
  • Width: 19"
  • Depth: 29"
  • Form Factor: 10U Rack-mountable
  • Weight (Approximate): 324 lb
  • Color: Black
  • Power Cord/Cable: 6 ft

Interfaces/Ports

  • Modular Slots: 1 x SmartSlot

Other

  • Package Contents:
    • Symmetra UPS
    • Software CD
    • Rack Mounting Brackets
    • Rack Mounting support rails
    • User Manual
    • Symmetra UPS
    • Software CD
    • Rack Mounting Brackets
    • Rack Mounting support rails
    • User Manual
  • Certifications & Standards:
    • CSA
    • FCC Part 15 Class A
    • UL 1778
  • Additional Information:
    • Automatic Self Test
    • Battery modules connected in parallel
    • Input Power Factor Correction
    • LCD AlphaNumeric Display
    • N+1 Redundancy
    • Scalable Power Capacity
    • Scalable Run Time
    • Software
    • Wide input voltage range

Environmental Conditions

  • Altitude:
    • 0 ft to 10000 ft Operating
    • 0 ft to 50000 ft Storage
  • Cooling Type: System fan
  • Humidity:
    • 0 to 95% Relative Humidity Operating
    • 0 to 95% Non-condensing Relative Humidity Storage
  • Temperature:
    • 32°F (0°C) to 104°F (40°C) Operating
    • 5°F (-15°C) to 113°F (45°C) Storage
  • Thermal Dissipation: 1686 BTU/h

Power Description

  • Input Voltage Range:
    • 208 V AC Nominal
    • 155 V AC to 276 V AC Mains Operation
  • Load Capacity: 4 kVA/2.80 kW
  • Input Voltage: 220 V AC
  • Output Voltage: 120 V AC Nominal
  • Circuit Breaker: Input -
  • Frequency: 60 Hz
  • Waveform Type: Sine Wave

Management

  • Network Management: SNMP Manageable
  • Battery Management: Intelligent Battery Management
  • Alarm:
    • Low Battery
    • On Battery
  • Bypass Switch:
    • Automatic
    • Manual
  • Emergency Power OFF: Yes

Battery Information

  • Batteries: Spill-proof, Maintenance-free Sealed Lead Acid User Replaceable Hot-swappable
  • Backup/Run Time:
    • 0.20 Hour 2.80 kW Full Load
    • 0.48 Hour 1.40 kW Half Load
  • Battery Recharge Time: <4 Hour Standard

Scalability

  • Modules:
    • 2 x Battery Module
    • 2 x Power Module
  • Power Range: 4 kVA to 6 kVA /

Controls/Indicators

  • Status Indicators:
    • Overload
    • Replace Battery
  • Control Panel: Multi-function LCD status and control console

Warranty

  • Limited Warranty: 2 Year
  • Parts Warranty/Labor: 2 Year
Extended Details
