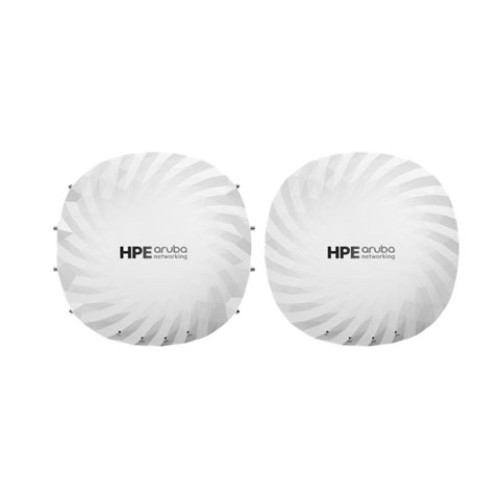

HPE Aruba S1G80A Wireless Access Points
Part #: S1G80A | SKU: HPE767364

High-end Wi-Fi 7 access points built for maximum capacity and failover. Three-band operation across 2.4, 5, and 6 GHz delivers up to 18.7 Gbps, with optional 28.8 Gbps in dual-6 GHz. Tri-band coexistence tech and dual 10 GbE interfaces provide resilient, gap-free service. Onboard Bluetooth, Zigbee, GNSS, and pressure sensors support location and IoT integration. Fully managed in the cloud with AI-based RF tuning and streamlined provisioning.

Key Features

802.11be Wi-Fi 7 with MLO and high-order QAM
4×4 MIMO on each of three bands for 12 streams
Boost mode: dual-6 GHz for 28.8 Gbps
Advanced tri-band filtering for interference suppression
Dual 10 GbE Smart Rate ports with encrypted MACsec
Embedded Bluetooth 5.4 & Zigbee radios
GNSS and barometric sensor for accurate mapping
Automated RF optimization via ClientMatch & AirMatch
Zero-touch deployment via cloud-native platform

Technical Specifications

Bands Supported: 2.4 GHz, 5 GHz, 6 GHz (simultaneous)
Aggregate Data Rate: 18.7 Gbps (tri-band), 28.8 Gbps (6 GHz only)
Spatial Streams: Up to 4×4 per band (12 total)
Ethernet Uplinks: Dual 10 GbE (PoE-PD, 802.3af/at/bt)
IoT: Bluetooth 5.4, IEEE 802.15.4/Zigbee
Location Sensors: GNSS receiver, barometer
Security: WPA3, Enhanced Open, MACsec, TPM
Management: Cloud OS-10 & Central with AI analytics
Power Supply: 12 V DC or PoE classes 3–6
Temperature/Humidity: 0 °C–50 °C, 5–95% RH
Dimensions: 260 × 260 × 57 mm
Weight: 1.53 kg (unit only)
Certifications: Wi-Fi Alliance, CE, FCC/ISED, UL2043, IEC 62368-1

HPE Aruba S1G80A Wireless Access Points

Part Details: Wireless Access Points - HPE Aruba 750 Series - AP‑754 (US) Tri‑radio 4x4 Wi‑Fi 7 External Antennas TAA Campus Access Point

Need a different version of the HPE Aruba 750 Series Wireless Access Points? View all 20 configurations

MSRP: $3,234.00 Price: $2,390.19

Additional Information

Antenna	External
Antenna Gain	6.3 dB
Environment	Indoor
MIMO	4x4
Manufacturer	HPE Aruba
Model Name	750 Series
Wireless Type	Wi-Fi 7
