Avery-Dennison AD-302 M730 RFID Tag

Call For Price

See all options

Specs & Info
All Options

Avery Dennison Smartrac Product Data Sheet

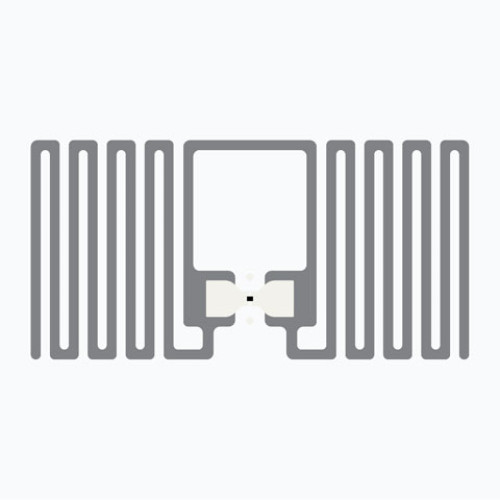

AD-302 M730 Overview

Introducing the AD-302 M730, a top-tier RFID inlay engineered for excellence across various sectors such as apparel and healthcare. Functioning within the UHF frequency range of 860 - 960 MHz, this inlay incorporates the Impinj M730 chip, providing a distinct TID and supporting pre-serialized EPC, with comprehensive performance testing for assured dependability.

Specifications:

Frequency Range: UHF 860 - 960 MHz
Chip Type: Impinj M730
Antenna Size: 30 x 15 mm / 1.20 x 0.60 in
Global Standard: ISO 18000-63, EPC Class 1 Gen 2
Use Cases: Perfect for tagging small items like children's accessories, fashion jewelry, sunglasses, pharmaceuticals, and healthcare products.
RoHS Adherence: EU Directive 2011/65/EC and Directive (EU) 2015/863
REACH Adherence: Regulation (EC) No. 1907/2006

Features and Advantages:

Optimized for accessory and cosmetic applications, the AD-302 M730 delivers outstanding performance and enhanced close-coupling capabilities. Available in dry, wet, and paper label formats, it caters to diverse tagging needs. Compliance with ISO 9001:2015 Quality and ISO 14001:2015 Environmental standards guarantees a cutting-edge solution for retail settings.

Technical Characteristics:

Sensitivity and Read Distance: Engineered for effective operation in practical environments.
EPC and Memory Capacity: 128-bit EPC memory with no user memory.
TID Memory: 96-bit with a 48-bit unique serial number.
Format Options: Offered in dry inlay, wet inlay, and label forms.
Cut Dimension: 33 x 18 mm / 1.299 x 0.709 in
Substrate Material: 40# Paper
Overall Thickness: From 11.5 - 18.2 mils (292-462 microns)
Temperature Range: -40 °C to 85 °C / -40 °F to 185 °F
Certification: ARC Spec Q

Handling and Usage:

The AD-302 M730 is susceptible to ESD, and it is crucial to adhere to standard industry guidelines to reduce environmental effects and static electricity. Customers are advised to conduct thorough testing under actual usage conditions to confirm it meets specific needs. Avery Dennison may alter or cease product offerings without prior notice.

For more details or questions, please reach out to Avery Dennison at rfid.averydennison.com/contact or dial +1-678-617-2359.

Avery-Dennison AD-302 M730 Specs (pdf)

Refine Your Options

Avery-Dennison RF101084 RFID Tag
Part #: RF101084 | SKU: AVE759175

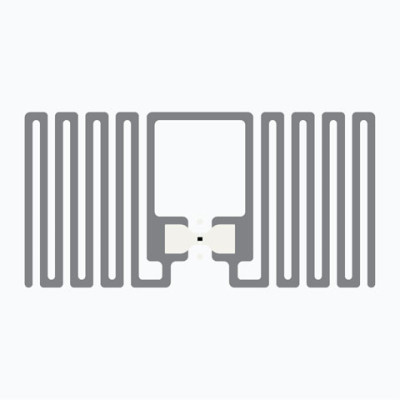

RFID Tag - Avery-Dennison AD-302 M730 - RFID Paper Label - 1.3 x 0.7 - Impinj Monza M730 Chip - AD-302 inlay - UHF Frequency - Ideal for Children Accessories - Fashion Jewelry and Sunglasses - Pharmaceutical and Healthcare.
