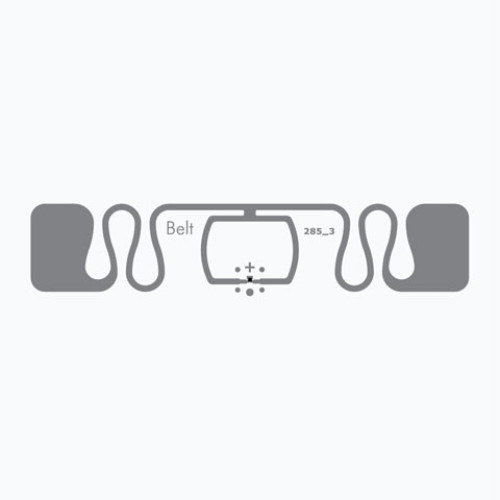

Avery-Dennison AD Belt M730 RFID Tag

The AD Belt M730 is an advanced RFID inlay and tag that serves a multitude of sectors, including global retail, logistics, and supply chain management. Operating in the UHF frequency range of 860 - 960 MHz, it incorporates the Impinj M730 chip, celebrated for its superior adaptive RF tuning. This feature guarantees optimal functionality across a wide range of materials, even in challenging environments with materials like cardboard and plastic that typically have low detuning properties.Notable specifications of the AD Belt M730 include an efficiently sized antenna measuring 70 x 14 mm (2.76 x 0.55 in) and adherence to global standards such as ISO 18000-63 and EPC Class 1 Gen 2. The inlay is offered in various formats—dry, wet, and paper tag—providing flexibility for different application requirements.Industries such as apparel, logistics, and automotive will find the AD Belt M730 particularly advantageous, offering solutions for home essentials, inventory management, and supply chain processes. It complies with the RoHS EU Directive 2011/65/EC and Directive (EU) 2015/863, in addition to the REACH Regulation (EC) No 1907/2006, ensuring it meets environmental and safety regulations.The Impinj M730 IC inside the AD Belt M730 provides 128-bit EPC memory and a 96-bit serialized TID with a 48-bit serial number, supporting the GS1 UHF Gen2v2 standard worldwide. This inlay is endorsed by the RFID Research Center (ARC) at the University of Auburn and fulfills various retail application inlay categories, ensuring its reliability and effectiveness across different uses.Regar...

• Impinj M730 chip with adaptive RF tuning for optimal performance across various materials.
• Dimensions: 70 x 14 mm (2.76 x 0.55 in) with orientation sensitivity.
• Offering: dry inlay, wet inlay, and label formats.
• Temperature Range: -40 °C to 85 °C (-40 °F to 185 °F).
• Endorsed by the RFID Research Center (ARC) at the University of Auburn.

• Global retail: apparel tagging and inventory management.
• Logistics and supply chain: asset tracking and process optimization.
• Automotive: parts tracking and inventory management.
