Avery-Dennison AD Belt M750 RFID Tag

Call For Price

See all options

Specs & Info
All Options

Avery Dennison Smartrac Product Specifications Sheet AD Belt M750 AD-Belt-M750-05-23-EN-DS

Introduction Introducing the AD Belt M750, a superior UHF RFID inlay tailored for worldwide retail, logistics, and supply-chain operations. Functioning within the UHF frequency range of 860 - 960 MHz, it incorporates the Impinj M750 chip, celebrated for its outstanding efficiency on challenging surfaces such as cardboard and plastic, as well as in demanding, close-proximity scenarios.

Technical Specifications

Frequency Range: UHF 860 - 960 MHz
Integrated Chip: Impinj M750

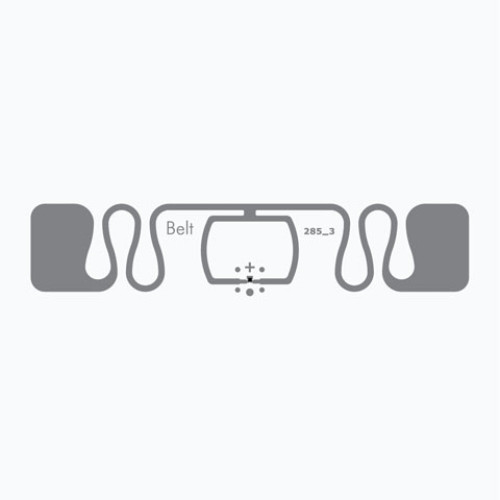

Antenna Size: 70 x 14 mm / 2.76 x 0.55 in
Global Standard: ISO 18000-63, EPC Class 1 Gen 2
EPC & User Memory: 96-bit and 32-bit
TID Memory: 96 bits of Serialized TID with a 48-bit serial number

Features and Advantages

The AD Belt M750 excels in performance across a variety of materials and challenging settings due to its advanced adaptive RF tuning capabilities. It features enhanced read and write sensitivity, facilitating rapid and precise reading among numerous tags. Moreover, it offers a privacy mode that boosts loss prevention and protects consumer privacy by rendering the tag undetectable to RAIN readers.

Ideal Uses

The AD Belt M750 is perfect for:

Clothing
Logistics
Automotive
Home Goods
Supply Chain Operations
Inventory and Logistics

Regulatory Compliance

The AD Belt M750 adheres to:

RoHS: EU Directive 2011/65/EC and Directive (EU) 2015/863
REACH: Regulation (EC) No 1907/2006
ISO 9001:2015 Quality Management
ISO 14001:2015 Environmental Management

Technical Details

Technical Details - Format Options: Available in dry inlay, wet inlay, and label versions

Die-Cut Size: 73 x 17 mm / 2.87 x 0.67 in
Inlay Material: PET
Surface Material: Mid-gloss paper
Liner Material: Siliconized paper
Standard Pitch: 20 mm / 0.787 in
Web Width: 80 mm / 3.15 in
Core Diameter: 76 mm / 3 in
Reel Quantity: 20,000 pcs/reel for dry and wet inlays, 5,000 pcs/reel for labels
Temperature Range: -40 °C to 85 °C / -40 °F to 185 °F

Avery-Dennison AD Belt M750 Specs (pdf)

Refine Your Options

Avery-Dennison 3007492 RFID Tag
Part #: 3007492 | SKU: AVE759153

RFID Tag - Avery-Dennison AD Belt M750 - RFID Paper Label - 2.87 x 0.67 - Impinj Monza M750 Chip - AD Belt inlay - UHF Frequency - Ideal for Home Essentials - Supply Chain Management - Inventory and Logistics.
