Bogen ANS501 Public Address Equipment
Part #: ANS501 | SKU: BOG18348

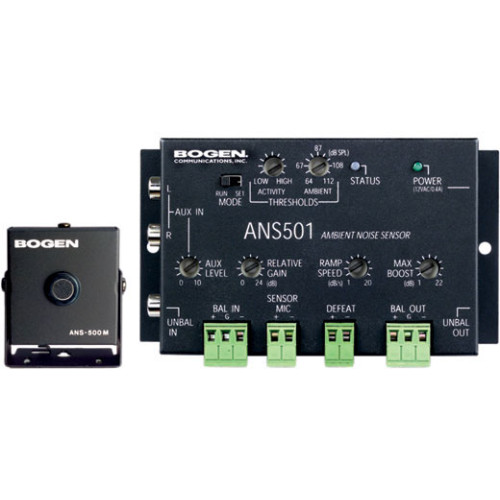

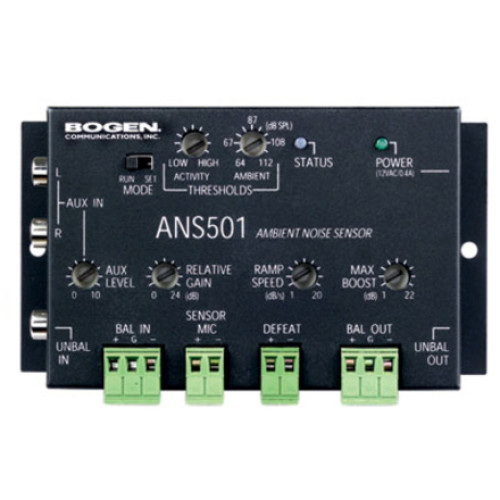

ANS501 Ambient Noise Sensor from Bogen consists of a control module, a microphone module and a 12V/0.4A wall-mounted power supply. The system is designed to electronically adjust the level of a page announcement in an area where ambient noise levels are continuously changing. Up to four microphone modules can be wired in parallel to monitor larger locations. ANS501 Ambient Noise Sensor includes controls for maximum boost, activity threshold, relative gain, AUX input level, ramp speed and ambient MIC input threshold. All wiring connections to the control module are made via pluggable screw terminals or RCA jacks.

Bogen ANS501 Public Address Equipment

Part Details: 22 dB Gain, 5 Hz to 80 kHz, < 0.007% distortion, 1 dB/s to 20 dB/s Gain Ramp Speed, RCA connector

Need a different version of the Bogen ANS501 Public Address Equipment? View all 1 configurations

MSRP: $843.44 Price: $432.13

Additional Information

Manufacturer	Bogen
Model Name	ANS501

Bogen ANS501 Specs (pdf)

General Information

Product Type: Audio Detector
Brand Name: Bogen
Manufacturer: Bogen Communications International, Inc
Product Model: ANS501
Product Name: ANS501 Noise Sensor

Physical Characteristics

Height: 3"
Width: 5.3"
Depth: 1.3"
Weight (Approximate): 12 oz

Other

Package Contents:
- ANS501 Noise Sensor
- ANS500M Sensor Microphone
- Instruction Manual
- Power Supply
- ANS501 Noise Sensor
- ANS500M Sensor Microphone
- Instruction Manual
- Power Supply
Additional Information:
- Connect up to 4 sensor microphones for large area coverage
- Remote defeat connections
- Activity threshold control
- Gain ramp speed control
- Maximum boost control
- Run/Set mode switch
- Relative gain control

Warranty

Limited Warranty: 2 Year
