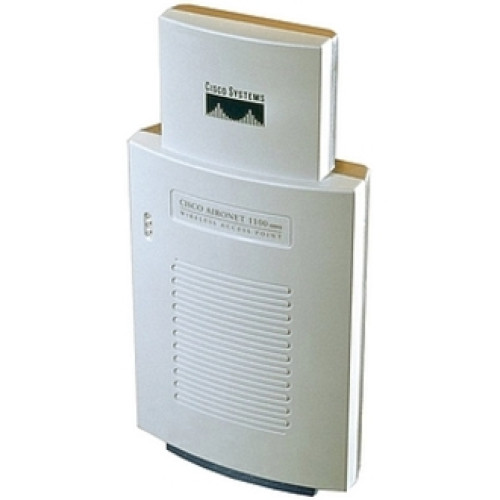

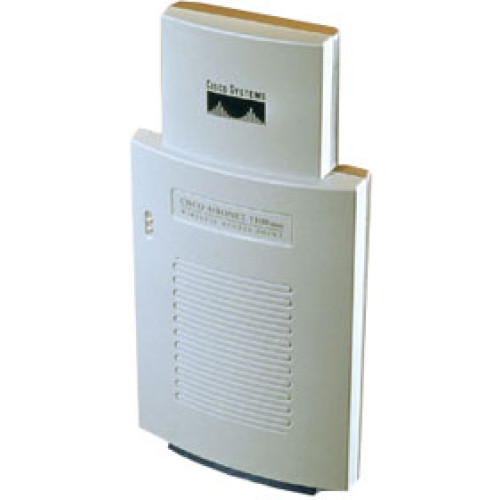

Cisco AIR-AP1121G-A-K9 Access Point
Part #: AIR-AP1121G-A-K9 | SKU: CIS40425

The Cisco Aironet 1100 Series Access Point provides a secure affordable and easy-to-use wireless LAN solution that combines mobility and flexibility with the enterprise-class features required by networking professionals. Taking advantage of the Cisco Wireless Security Suite for the strongest enterprise security available and of Cisco IOS Software for ease-of-use and familiarity the Cisco Aironet 1100 Series Access Point delivers manageability performance investment protection and scalability in a cost-effective package with a low total cost of ownership. The Cisco Aironet 1100 Series features a single upgradable 802.11b radio integrated diversity dipole antennas and an innovative mounting system for easy installation in a variety of locations and orientations.

Cisco AIR-AP1121G-A-K9 Access Point

Part Details: Cisco Aironet 1100 Access Point - 54Mbps - 1 x 10/100Base-TX

Need a different version of the Cisco Aironet 1100 Series Access Point? View all 2 configurations

Additional Information

Manufacturer	Cisco
Model Name	Aironet 1100 Series

Cisco Aironet 1100 Series Specs (pdf)

Technical Information

Wireless LAN Standard: IEEE 802.11b/g
ISM Band: Yes
Indoor Antenna Range: 410 ft
Outdoor Antenna Range: 700 ft
ISM Minimum Frequency: 2.41 GHz
Antenna Gain: 2.2 dBi
Antenna Type: Diversity Dipole Antenna
Wireless Transmission Speed: 54 Mbps
ISM Maximum Frequency: 2.40 GHz
Wireless Security:
- Authentication:
- 802.1X support including LEAP, PEAP, EAP-TLS, EAP-TTLS and EAP-SIM to yield mutual authentication and dynamic, per-user, per-session WEP keys
- MAC address and by standard 802.11 authentication mechanisms
- Supports Wi-Fi Protected Access (WPA)
- Encryption:
- Support for static and dynamic IEEE 802.11 WEP keys of 40 bits and 128 bits
- Pre-standard TKIP WEP enhancements: key hashing (per-packet keying), message integrity check (MIC) and broadcast key rotation
- Supports Wi-Fi Protected Access (WPA)

General Information

Product Type: Wireless Access Point
Product Series: 1100
Brand Name: Cisco
Manufacturer: Cisco-IMSourcing
Product Name: Aironet 1100 Access Point
Product Line: Aironet

Physical Characteristics

Height: 8.1"
Depth: 1.5"
Form Factor:
- Wall Mountable
- Ceiling Mountable
Weight (Approximate): 10.50 oz

Interfaces/Ports

Fast Ethernet Port: Yes

Other

Package Contents:
- Cisco Aironet 1100 Series Access point power pack
- Wall or ceiling mounting bracket
- Security hasp adapter
- Cubical partition mounting bracket assembly
- Horizontal surface mounting holster
- Mounting hardware kit
- Product registration card
- S11W7K9-12213JA: Cisco 1100 Series IOS Wireless LAN
- Cisco Aironet 1100 Series Access point power pack
- Wall or ceiling mounting bracket
- Security hasp adapter
- Cubical partition mounting bracket assembly
- Horizontal surface mounting holster
- Mounting hardware kit
- Product registration card
- S11W7K9-12213JA: Cisco 1100 Series IOS Wireless LAN
Certifications & Standards:
- Wi-Fi
- FCC configuration
- Safety:
- UL 60950
- UL 2043
- CSA 22.2 No. 950-95
- IEC 60950- EN 60950
- Radio Approvals:
- FCC Part 15.247
- RSS-139-1, RSS-210 (Canada)
- EN 300.328 (Europe)
- Telec 33 (Japan)
- AS/NZ 3548 (Australia and New Zealand)
- EMI and Susceptibility (Class B):
- FCC Par 15.107 and 15.109
- ICES-003 (Canada)
- VCCI (Japan)
- EN 301.489-1 and -17 (Europe)
- Other:
- IEEE 802.11b
- FCC Bulletin OET-65C
- RSS-102
Additional Information:
- Uplink: Autosensing 802.3 10/100BaseT Ethernet
- Network architecture type: Infrastructure, star topology

Warranty

Additional Warranty Information:
- Product does not ship from original manufacturer
- Product may not be eligible for original manufacturer warranty, rebates or programs
- Direct replacement warranty provided by Ingram Micro (1 year for components, 3 year for systems)
- Product ships from IMSourcing facility within 2-3 days or from stock
- Product may ship in non-standard packaging
- All returns processed directly from IMSourcing
- Product condition subject to availability
- Replacement parts are from our Service inventory and meet our rigorous inspection and quality standards. Some will be new, some are manufacturer certified refurbished, some are considered 'as new' and have been tested, refurbished or remanufactured. All are fully warranted
- Where applicable, -IM indicates an Ingram Micro certified pre-owned product

Management & Protocols

Management:
- CiscoWorks
- CiscoView
- Resource Manager Essentials
- Campus Manager
- Telnet
- SNMP

Power Description

Input Voltage:
- 110 V AC
- 220 V AC
Power Source: Power Supply

Extended Details
