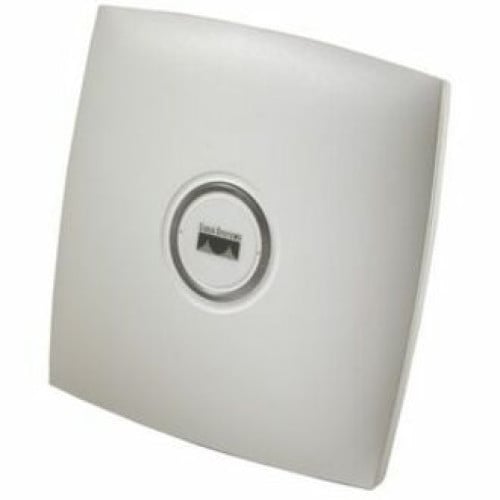

Cisco AIR-AP1131AG-A-K9 Access Point
Part #: AIR-AP1131AG-A-K9 | SKU: CIS40435

The Cisco Aironet 1130AG Series packages high capacity, high security, and enterprise-class features delivering WLAN access for a low total cost of ownership. Designed for WLAN coverage in offices and similar RF environments, this unobtrusive access point features integrated antennas and dual IEEE 802.11a/g radios for robust and predictable coverage, delivering a combined capacity of 108 Mbps. The competitively priced Cisco Aironet 1130AG Series is ready to install and easy to manage, reducing the cost of deployment and ongoing maintenance.

Cisco AIR-AP1131AG-A-K9 Access Point

Part Details: Cisco Aironet 1130AG 802.11a/b/g Access Point - 54Mbps - 1 x

Need a different version of the Cisco Aironet 1130AG Series Access Point? View all 2 configurations

Additional Information

Manufacturer	Cisco
Model Name	Aironet 1130AG Series

Cisco Aironet 1130AG Series Specs (pdf)

Technical Information

Wireless LAN Standard:
- IEEE 802.11a/b/g
- IEEE 802.11a/b/g
ISM Band:
- Yes
- Yes
UNII Band:
- Yes
- Yes
Indoor Antenna Range:
- 450 ft
- 450 ft
Outdoor Antenna Range:
- 950 ft
- 950 ft
ISM Minimum Frequency:
- 2.41 GHz
- 2.41 GHz
UNII Minimum Frequency:
- 5.15 GHz
- 5.15 GHz
Antenna Gain:
- 4.5 dBi
- 4.5 dBi
Antenna Type:
- Omnidirectional Antenna
- Omnidirectional Antenna
Total Number of Antennas:
- 2
- 2
Wireless Transmission Speed:
- 54 Mbps
- 54 Mbps
ISM Maximum Frequency:
- 2.40 GHz
- 2.40 GHz
UNII Maximum Frequency:
- 5 GHz
- 5 GHz
Wireless Security:
- Authentication:
- 802.1X support, including Cisco LEAP, EAP-Flexible Authentication via Secure Tunneling (EAP-FAST), Protected EAP- Generic Token Card (PEAP-GTC), PEAP-Microsoft Challenge Authentication Protocol Version 2 (PEAP-MSCHAPv2), EAP-Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), and EAP-Subscriber Identity Module (EAP-SIM) to yield mutual authentication and dynamic, per-user, per-session encryption keys (WPA and WPA2)
- MAC address and standard 802.11 authentication mechanisms
- Encryption:
- AES-CCMP encryption (WPA2)
- TKIP encryption enhancements: key hashing (per-packet keying), message integrity check (MIC) and broadcast key rotation via Cisco TKIP or WPA TKIP
- Support for static and dynamic IEEE 802.11 WEP keys of 40 bits and 128 bits
- IEEE 802.1X
- EAP-FAST
- PEAP-GTC
- PEAP-MSCHAPv2
- EAP-TLS
- EAP-TTLS
- EAP-SIM
- WPA
- WPA2
- TKIP
- 40/128-bit WEP

General Information

Product Type:
- Wireless Access Point
- Wireless Access Point
Product Series:
- 1100
- 1100
Brand Name:
- Cisco
- Cisco-IMSourcing
Manufacturer:
- Cisco Systems, Inc
- Cisco-IMSourcing
Product Model:
- 1131AG
- 1131AG
Product Name:
- Aironet 1131AG 802.11a/b/g Access Point
- Aironet 1131AG 802.11a/b/g Access Point
Product Line:
- Aironet
- Aironet

Physical Characteristics

Height:
- 7.5"
- 7.5"
Depth:
- 1.3"
- 1.3"
Form Factor:
- Wall Mountable
- Ceiling Mountable
- Wall Mountable
- Ceiling Mountable
Weight (Approximate):
- 1.50 lb
- 1.50 lb

Interfaces/Ports

Fast Ethernet Port:
- Yes
- Yes
Management Port:
- Yes
- Yes
Ethernet Port: Yes
Gigabit Ethernet Port: No
10Gigabit Ethernet Port: No

Other

Package Contents:
- Aironet 1131AG 802.11a/b/g Wireless Access Point
- Cisco 1130 Series IOS Wireless LAN (S113W7K9-12307JA)
- Quick Start Guide: Cisco Aironet 1130AG Series Access Point
- Safety Warnings for Cisco Aironet 1130AG Series Access Points
- Cisco product registration and Cisco documentation feedback cards
- One mounting plate
- Two suspended ceiling adjustable T-rail clips (accommodates standard and recessed T-rails)
- One security hasp adapter
- Four 6 x 32 x ¼ in. flat head Phillips machine screws
- One 8 x 32 x 3/16 in. pan head Phillips machine screw
- 2 No. 8 plastic wall anchors
- 2 No. 8 x 32 x 1 in. pan head screws
- Aironet 1131AG 802.11a/b/g Wireless Access Point
- Cisco 1130 Series IOS Wireless LAN (S113W7K9-12307JA)
- Quick Start Guide: Cisco Aironet 1130AG Series Access Point
- Safety Warnings for Cisco Aironet 1130AG Series Access Points
- Cisco product registration and Cisco documentation feedback cards
- One mounting plate
- Two suspended ceiling adjustable T-rail clips (accommodates standard and recessed T-rails)
- One security hasp adapter
- Four 6 x 32 x ¼ in. flat head Phillips machine screws
- One 8 x 32 x 3/16 in. pan head Phillips machine screw
- 2 No. 8 plastic wall anchors
- 2 No. 8 x 32 x 1 in. pan head screws
- Aironet 1131AG 802.11a/b/g Access Point
- Cisco 1130 Series IOS Wireless LAN (S113W7K9-12307JA)
- Quick Start Guide
- Cisco Product Registration And Cisco Documentation Feedback Cards
- 1 x Mounting Plate
- 2 x Suspended Ceiling Adjustable T-Rail Clips (Accommodates Standard And Recessed T-Rails)
- 1 x Security Hasp Adapter
- 4 x Flat Head Phillips Machine Screws
- 1 x Pan Head Phillips Machine Screw
- 2 x Plastic Wall Anchors
- 2 x Pan Head Screws
- Aironet 1131AG 802.11a/b/g Access Point
- Cisco 1130 Series IOS Wireless LAN (S113W7K9-12307JA)
- Quick Start Guide
- Cisco Product Registration And Cisco Documentation Feedback Cards
- 1 x Mounting Plate
- 2 x Suspended Ceiling Adjustable T-Rail Clips (Accommodates Standard And Recessed T-Rails)
- 1 x Security Hasp Adapter
- 4 x Flat Head Phillips Machine Screws
- 1 x Pan Head Phillips Machine Screw
- 2 x Plastic Wall Anchors
- 2 x Pan Head Screws
Certifications & Standards:
- Wi-Fi
- FCC configuration
- Safety:
- UL 60950-1
- CAN/CSA-C22.2 No. 60950-1
- UL 2043
- IEC 60950-1
- EN 60950-1
- FIPS 140-2 Pre-Validation List
- Common Criteria
- Radio Approvals:
- FCC Part 15.247, 15.407
- RSS-210 (Canada)
- EN 300.328, EN 301.893 (Europe)
- ARIB-STD 33 (Japan)
- ARIB-STD 66 (Japan)
- ARIB-STD T71 (Japan)
- AS/NZS 4268.2003 (Australia and New Zealand)
- EMI and Susceptibility (Class B):
- FCC Part 15.107 and 15.109
- ICES-003 (Canada)
- VCCI (Japan)
- EN 301.489-1 and -17 (Europe)
- Security:
- WPA2
- WPA
- 802.11ix
- 802.1X
- AES
- TKIP
- FIPS 140-2 Pre-Validation List
- Common Criteria (when running Cisco IOS software)
- Other:
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- FCC Bulletin OET-65C
- RSS-102
- Wi-Fi
- FCC configuration
- Safety:
- UL 60950-1
- CAN/CSA-C22.2 No. 60950-1
- UL 2043
- IEC 60950-1
- EN 60950-1
- FIPS 140-2 Pre-Validation List
- Common Criteria
- Radio Approvals:
- FCC Part 15.247, 15.407
- RSS-210 (Canada)
- EN 300.328, EN 301.893 (Europe)
- ARIB-STD 33 (Japan)
- ARIB-STD 66 (Japan)
- ARIB-STD T71 (Japan)
- AS/NZS 4268.2003 (Australia and New Zealand)
- EMI and Susceptibility (Class B):
- FCC Part 15.107 and 15.109
- ICES-003 (Canada)
- VCCI (Japan)
- EN 301.489-1 and -17 (Europe)
- Security:
- WPA2
- WPA
- 802.11ix
- 802.1X
- AES
- TKIP
- FIPS 140-2 Pre-Validation List
- Common Criteria (when running Cisco IOS software)
- Other:
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- FCC Bulletin OET-65C
- RSS-102
Additional Information:
- System Memory:
- 32 MB RAM
- 16 MB FLASH

Warranty

Limited Warranty: 1 Year
Additional Warranty Information:
- Product does not ship from original manufacturer
- Product may not be eligible for original manufacturer warranty, rebates or programs
- Direct replacement warranty provided by Ingram Micro (1 year for components, 3 year for systems)
- Product ships from IMSourcing facility within 2-3 days or from stock
- Product may ship in non-standard packaging
- All returns processed directly from IMSourcing
- Product condition subject to availability
- Replacement parts are from our Service inventory and meet our rigorous inspection and quality standards. Some will be new, some are manufacturer certified refurbished, some are considered 'as new' and have been tested, refurbished or remanufactured. All are fully warranted
- Where applicable, -IM indicates an Ingram Micro certified pre-owned product
- Product does not ship from original manufacturer
- Product may not be eligible for original manufacturer warranty, rebates or programs
- Direct replacement warranty provided by Ingram Micro (1 year for components, 3 year for systems)
- Product ships from IMSourcing facility within 2-3 days or from stock
- Product may ship in non-standard packaging
- All returns processed directly from IMSourcing
- Product condition subject to availability
- Replacement parts are from our Service inventory and meet our rigorous inspection and quality standards. Some will be new, some are manufacturer certified refurbished, some are considered 'as new' and have been tested, refurbished or remanufactured. All are fully warranted
- Where applicable, -IM indicates an Ingram Micro certified pre-owned product

Management & Protocols

Management:
- Telnet
- Console port
- Simple Network Management Protocol (SNMP)
- Trivial File Transfer Protocol (TFTP)
- CiscoWorks Resource Manager Essentials (RME)
- CiscoWorks Software Image Manager (SWIM)
- CiscoWorks Campus Manager
- CiscoWorks WLSE
- CiscoWorks CiscoView
- Telnet
- Simple Network Management Protocol (SNMP)
- Trivial File Transfer Protocol (TFTP)
- CiscoWorks Resource Manager Essentials (RME)
- CiscoWorks Software Image Manager (SWIM)
- CiscoWorks Campus Manager
- CiscoWorks WLSE
- CiscoWorks CiscoView

Power Description

Input Voltage:
- 110 V AC
- 220 V AC
- 110 V AC
- 220 V AC
Power Source:
- Power Supply
- Power Supply
