Additional Information
| Environment | Outdoor |
|---|---|
| Manufacturer | Cisco |
| Model Name | Aironet 1550 Series |

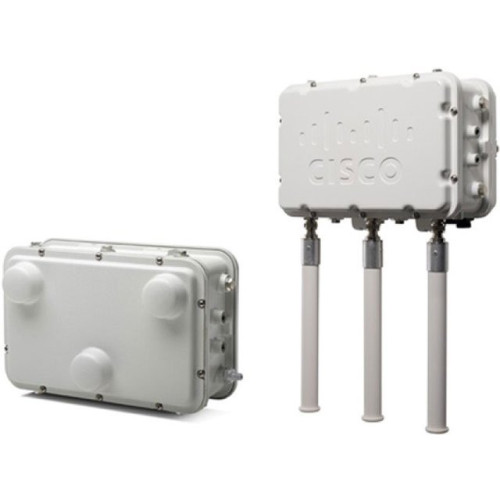

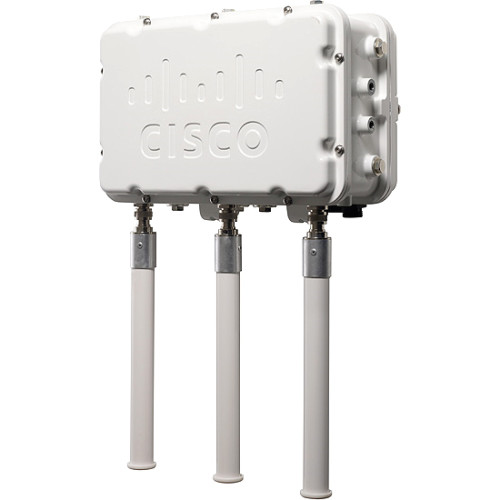

Cisco Aironet 1550 Series Specs
Technical Information
- Wireless LAN Standard: IEEE 802.11n
- ISM Band: Yes
- UNII Band: Yes
- ISM Minimum Frequency: 2.40 GHz
- UNII Minimum Frequency: 5.73 GHz
- Antenna Gain:
- 4 dBi
- 7 dBi
- Antenna Type: Omnidirectional Antenna
- Total Number of Antennas: 3
- Wireless Transmission Speed: 300 Mbps
- ISM Maximum Frequency: 2.48 GHz
- UNII Maximum Frequency: 5.85 GHz
- Features:
- MIMO Technology
- Quality of Service (QoS)
- Wireless Security:
- WPA
- WPA2
- MAC Address Filtering
- AES
- IEEE 802.1x
- IEEE 802.11i
- EAP
- EAP-PEAP
- EAP-TLS
- EAP-TTLS
- LEAP
- IPSec
- L2TP
- VPN Pass-through
General Information
- Product Type: Wireless Access Point
- Product Series: 1550
- Brand Name: Cisco
- Manufacturer: Cisco Systems, Inc
- Product Model: 1552H
- Product Name: Aironet 1552H Wireless Access Point
- Product Line: Aironet
Physical Characteristics
- Height: 6.4"
- Width: 12"
- Depth: 7.8"
- Form Factor: Pole-mountable
- Weight (Approximate): 17.30 lb
Interfaces/Ports
- Ethernet Port: Yes
- Fast Ethernet Port: Yes
- Gigabit Ethernet Port: Yes
- 10Gigabit Ethernet Port: No
- Number of Network (RJ-45) Ports: 1
- PoE (RJ-45) Port: Yes
Other
- Certifications & Standards:
- IEEE Standards:
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.11i
- IEEE 802.1x
- Safety:
- UL 60950, 2nd Edition
- CAN/CSA-C22.2 No. 60950, 2nd Edition
- IEC 60950, 2nd Edition
- EN 60950, 2nd Edition
- Immunity:
- EN61000-4-5 Level 4 AC Surge Immunity
- EN61000-4-4 Level 4 Electrical Fast Transient Burst Immunity
- EN61000-4-3 Level 4 EMC Field Immunity
- EN61000-4-2 Level 4 ESD Immunity
- EN60950 Overvoltage Category IV
- Radio approvals:
- FCC Part 15.247, 15.407
- FCC Bulletin OET-65C
- RSS-210
- RSS-102
- AS/NZS 4268.2003
- EN 300 328
- EN 301 893
- EMI and susceptibility:
- FCC part 15.107, 15.109
- ICES-003
- EN 301 489-1, -17
Power Description
- Input Voltage: 12 V DC
- Power Source: AC Adapter
Warranty
- Limited Warranty: 90 Day
I/O Expansions
- Expansion Slots: 1 x SFP (mini-GBIC)
