| Manufacturer | Cisco |
|---|---|
| Model Name | ASA 5500 Series Adaptive Security Appliance |

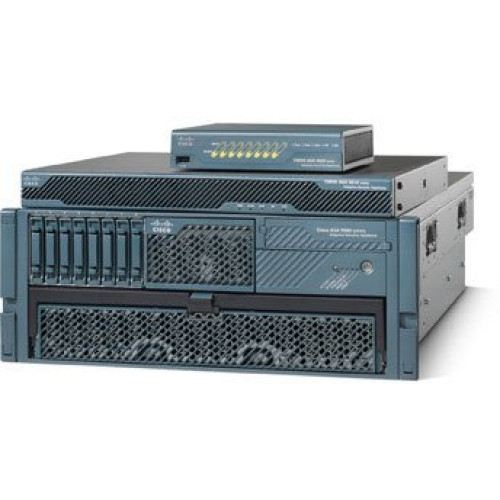

Cisco ASA 5500 Series Adaptive Security Appliance Specs
Technical Information
- Encryption Standard:
- 3DES
- AES
- 3DES
- AES
- Firewall Protection:
- Intrusion Prevention
- Antivirus
- Access Control
- Worm Scanning
- Intrusion Prevention
- Antivirus
- Access Control
- Worm Scanning
- Virtualization:
- 50000 x Concurrent Connection
- 50 x 802.1Q VLAN Support
- 250 x IPSec VPN Peer
- 9000 x Connections Per Second
- 2 x SSL VPN Peer
- 50000 x Concurrent Connection
- 50 x 802.1Q VLAN Support
- 250 x IPSec VPN Peer
- 9000 x Connections Per Second
- 2 x SSL VPN Peer
- 50000 x Concurrent Connection
- 50 x 802.1Q VLAN Support
- 250 x IPSec VPN Peer
- 9000 x Connections Per Second
- 2 x SSL VPN Peer
- 50000 x Concurrent Connection
- 50 x 802.1Q VLAN Support
- 250 x IPSec VPN Peer
- 9000 x Connections Per Second
- 2 x SSL VPN Peer
General Information
- Product Type:
- Network Security/Firewall Appliance
- Network Security/Firewall Appliance
- Product Series:
- 5500
- 5500
- Brand Name:
- Cisco
- Cisco
- Manufacturer:
- Cisco Systems, Inc
- Cisco-IMSourcing
- Product Model:
- 5510
- 5510
- Product Name:
- 5510 Adaptive Security Appliance
- 5510 Adaptive Security Appliance
Physical Characteristics
- Compatible Rack Unit:
- 1U
- 1U
- Height:
- 1.8"
- 1.8"
- Width:
- 17.5"
- 17.5"
- Depth:
- 14.3"
- 14.3"
- Form Factor:
- Rack-mountable
- Desktop
- Rack-mountable
- Desktop
- Weight (Approximate):
- 20 lb
- 20 lb
Interfaces/Ports
- USB:
- Yes
- Yes
- Total Number of Ports:
- 5
- 5
- Management Port:
- Yes
- Yes
Other
- Package Contents:
- ASA 5510 VPN/Firewall
- Power Cord 110V
- ASA 5500 Series Software
- ASA 5500 Strong Encryption License (3DES/AES)
- ASA/IPS SSM Slot Cover
- Cisco VPN Client Software
- ASA 5510 VPN/Firewall
- Power Cord 110V
- ASA 5500 Series Software
- ASA 5500 Strong Encryption License (3DES/AES)
- ASA/IPS SSM Slot Cover
- Cisco VPN Client Software
- ASA 5510 VPN/Firewall
- Power Cord 110V
- ASA 5500 Series Software
- ASA 5500 Strong Encryption License (3DES/AES)
- ASA/IPS SSM Slot Cover
- Cisco VPN Client Software
- ASA 5510 VPN/Firewall
- Power Cord 110V
- ASA 5500 Series Software
- ASA 5500 Strong Encryption License (3DES/AES)
- ASA/IPS SSM Slot Cover
- Cisco VPN Client Software
- Certifications & Standards:
- USB 2.0
- Safety:
- UL 1950
- CSA C22.2 No. 950
- EN 60950 IEC 60950
- AS/NZS3260, TS001
- Electromagnetic Compatibility (EMC):
- CE marking
- FCC Part 15 Class A
- AS/NZS 3548 Class A
- VCCI Class A
- EN55022 Class A
- CISPR22 Class A
- EN61000-3-2
- EN61000-3-3
- IEEE:
- IEEE 802.3
- IEEE 802.3u
- USB 2.0
- Safety:
- UL 1950
- CSA C22.2 No. 950
- EN 60950 IEC 60950
- AS/NZS3260, TS001
- Electromagnetic Compatibility (EMC):
- CE marking
- FCC Part 15 Class A
- AS/NZS 3548 Class A
- VCCI Class A
- EN55022 Class A
- CISPR22 Class A
- EN61000-3-2
- EN61000-3-3
- IEEE:
- IEEE 802.3
- IEEE 802.3u
- Additional Information:
- 2 Gigabit Ethernet + 3 Fast Ethernet interface upgrade available with Cisco ASA 5510 Security Plus license (L-ASA5510-SEC-PL=)
- Environmental Operating Ranges:
- Shock: 1.14 m/sec (45 in./sec) 1/2 sine input
- Vibration: 0.41 Grms2 (3 to 500 Hz) random input
- Acoustic Noise: 60 dBa max
- Environmental Nonoperating Ranges:
- Shock: 30 G
- Vibration: 0.41 Grms2 (3 to 500 Hz) random input
- 2 Gigabit Ethernet + 3 Fast Ethernet interface upgrade available with Cisco ASA 5510 Security Plus license (L-ASA5510-SEC-PL=)
- Environmental Operating Ranges:
- Shock: 1.14 m/sec (45 in./sec) 1/2 sine input
- Vibration: 0.41 Grms2 (3 to 500 Hz) random input
- Acoustic Noise: 60 dBa max
- Environmental Nonoperating Ranges:
- Shock: 30 G
- Vibration: 0.41 Grms2 (3 to 500 Hz) random input
Memory
- Memory Card Supported:
- CompactFlash (CF) Card
- CompactFlash (CF) Card
- Memory Technology:
- DRAM
- DRAM
- Flash Memory:
- 64 MB
- 64 MB
- Standard Memory:
- 1 GB
- 1 GB
I/O Expansions
- Number of Total Expansion Slots:
- 2
- 2
- Number of SSM Slots:
- 1
- 1
- Expansion Slot Type:
- SSM
- SSM
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
- 110 V AC
- 220 V AC
- Power Source:
- Power Supply
- Power Supply
Network & Communication
- Network Standard:
- 10/100Base-TX
- 10/100Base-TX
- Ethernet Technology:
- Fast Ethernet
- Fast Ethernet
Management & Protocols
- Manageable:
- Yes
- Yes
Warranty
- Limited Warranty: 90 Day
