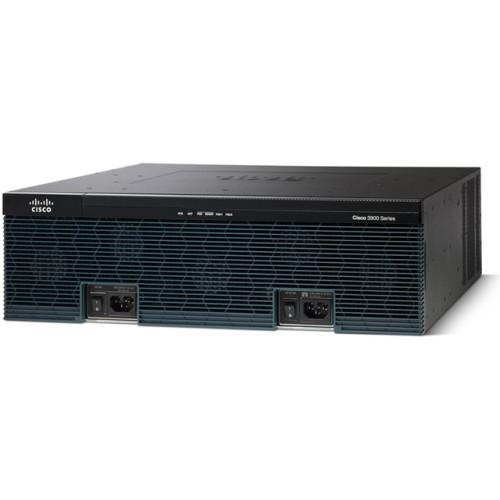

Cisco CISCO3945E/K9 Data Networking
Part #: CISCO3945E/K9 | SKU: CIS148452

The Cisco 3900 Series builds on the best-in-class offering of the existing Cisco 3800 Series Integrated Services Routers by now offering four platforms: the Cisco 3945E, Cisco 3925E, Cisco 3945, and Cisco 3925 Integrated Services Routers. The Cisco 3900 Series offers embedded hardware encryption acceleration, voice- and video-capable DSP slots, optional firewall, intrusion prevention, call processing, voicemail, and application services. In addition, the platforms support the industry?s widest range of wired and wireless connectivity options such as T1/E1, T3/E3, xDSL, copper, and fiber Gigabit Ethernet. The Cisco 3900 Series offers superior performance and flexibility for flexible network deployments from small business offices to large enterprise offices - all while providing industry-leading investment protection.

Cisco CISCO3945E/K9 Data Networking

Part Details: 3900 Series, 3945E with 4 onboard GE, C3900-SPE250/K9, 3 EHWIC slots, 3 DSP slots, 4 SM slots, 256MB CF default, 1 GB DRAM default, IP Base

Need a different version of the Cisco 3900 Series Accessory? View all 11 configurations

Additional Information

Manufacturer	Cisco
Model Name	3900 Series

Cisco 3900 Series Specs (pdf)

General Information

Product Type: Router
Product Series: 3900
Brand Name: Cisco
Manufacturer: Cisco Systems, Inc
Product Model: 3945E
Product Name: 3945E Integrated Services Router

Physical Characteristics

Compatible Rack Unit: 3U
Height: 5.3"
Width: 17.3"
Depth: 18.8"
Form Factor: Rack-mountable
Weight (Approximate): 39.02 lb

Interfaces/Ports

Total Number of Ports: 4
USB: Yes
Management Port: Yes
Number of Broadband (RJ-45) Ports: 4

Management & Protocols

Security Features:
- Cisco Security Manager
- Cisco IOS Firewall
- Cisco IOS Zone-Based Firewall
- Cisco IOS IPS
- Cisco IOS Content Filtering
- Flexible Packet Matching (FPM)
- AAA

I/O Expansions

Number of Total Expansion Slots: 13
Expansion Slot Type:
- Serial Module
- HWIC
- PVDM
- SFP (mini-GBIC)

Other

Package Contents:
- 3945E Integrated Services Router
- Cisco Services Performance Engine 250 (SPE250)
- 3945E Integrated Services Router
- Cisco Services Performance Engine 250 (SPE250)

Memory

Flash Memory: 256 MB
Standard Memory: 1 GB
Memory Card Supported: CompactFlash (CF) Card
Memory Technology: DRAM
Maximum Memory: 2 GB

Power Description

PoE (RJ-45) Port: Yes
Input Voltage:
- 110 V AC
- 220 V AC
Power Source: Power Supply

Network & Communication

Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T

Extended Details
