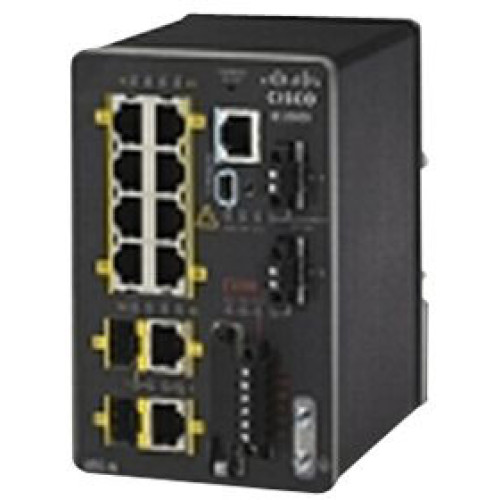

Cisco IE-2000-16TC-G-L Network Switch
Part #: IE-2000-16TC-G-L | SKU: CIS209671

The Cisco Industrial Ethernet 2000 Series Switches is a range of compact, industrially ruggedized access switches. Industrial Ethernet 2000 Series Switches provide customers with ease of use, secure access, and industry leading convergence using Cisco Resilient Ethernet Protocol (REP). Multiple industries such as automotive, oil and gas, mining, transportation, and energy companies are all increasingly requiring IP based networks in their production areas. The newest Industrial Ethernet 2000 Series Switches additions have been designed to support access layer connectivity and to meet the increasing needs for security, voice, and video traffic across industrial networks.

Cisco IE-2000-16TC-G-L Network Switch

Part Details: Industrial Ethernet 2000 Series Switches, Industrial Ethernet 2000 16 Port FE+ 2 Port SFP+ T/SFP, LITE

Need a different version of the Cisco Industrial Ethernet 2000 Series Data Networking? View all 2 configurations

MSRP: $3,223.37 Price: $2,365.53

Additional Information

Manufacturer	Cisco
Model Name	Industrial Ethernet 2000 Series

Cisco Industrial Ethernet 2000 Series Specs (pdf)

General Information

Product Type: Ethernet Switch
Product Series: IE-2000
Brand Name: Cisco
Manufacturer: Cisco Systems, Inc
Product Model: IE-2000-16TC-G-L
Product Name: IE-2000-16TC-G-L Ethernet Switch

Physical Characteristics

Height: 5.1"
Width: 5"
Depth: 5.3"
Form Factor:
- Desktop
- Rail-mountable
Weight (Approximate): 4.35 lb

Interfaces/Ports

Number of Network (RJ-45) Ports: 16
Stack Port: No
Total Number of Network Ports: 20
Token Ring Port: No
LRE Port: No
USB: Yes
Modular: No
Management Port: Yes
Uplink Port: Yes
Bypass: No

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Certifications & Standards:
- Safety:
- UL/CSA 60950-1
- EN 60950-1
- CB to IEC 60950-1 (with country deviations)
- NOM to NOM-019-SCF1 (through partners and distributors)
- CE Marking
- Hazard:
- ANSI/ISA 12.12.01 (Class 1, Div 2 A-D)
- EN 60079-0, -15 ATEX certification (Class I, Zone 2 A-D)
- EMC Emission and Community:
- FCC 47 CFR Part 15 Class A
- EN 55022A Class A
- VCCI Class A
- AS/NZS CISPR 22 Class A, AS/NZS CISPR 24
- CISPR11 Class A, CISPR22 Class A
- ICES 003 Class A
- KCC -Korea
- CE Marking
- C-Tick (Australia)
- Russia certification
- Brazil certification
- IEC/EN61000-4-2 (Electro Static Discharge), 15kV Air/8kV Contact
- IEC/EN 61000-4-3 (Radiated Immunity, 10 and 20V/m)
- IEC/EN 61000-4-4 (Fast Transients - 4kV power line, 4kV data line
- IEC/EN 61000-4-5 (Surge 2 kV/1 kV)
- IEC/EN 61000-4-6 (Conducted Immunity, 10V/emf)
- IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity)
- IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity)
- IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity)
- IEC/EN 61000-4-11 (AC power Voltage Immunity)
- IEC/EN 61000-4-29 (Voltage Dips Immunity)
- IEC/EN 61000-6-1 (Immunity for Light Industrial Environments)
- IEC/EN 61000-6-4 Class A
- EN 61326
- Shock and Vibration:
- IEC 60068-2-27 (Operational Shock: 30G 11ms, half sine)
- IEC 60068-2-27 (Non-Operational Shock 55-70G, trapezoidal)
- IEC 60068-2-6, IEC 60068-2-64 (Operational Vibration 2g@10-500Hz)
- IEC 60068-2-6, IEC 60068-2-64 (Non-operational Vibration)
- Industry:
- UL 508
- CSA C22.2 No. 142
- EN 61131-2 (Programmable Controllers)
- Protective Coating
- Substation (IEEE 1613, IEC 61850-3) KEMA
- Lloyd's Register Type Approval - ENV2 or ENV3
- British, German Lloyds
- Marine (LR, BV, GL, DnV, Rina ABS, KR)
- RA 156-165 Mhz 24 dBuV/M - Class A is 50 dBuV/M - Marine Band
- Railway EN 50155
- NEMA TS-2
- IP30
- ODVA Industrial EtherNet/IP
- PROFINETv2
- Corrosive Testing:
- ISO-12944-6
- IEC-60068-2-60
- Humidity:
- IEC 60068-52-2 (Salt Fog Mist, Test Kb) Marine environments
- IEC 60068 -2-3
- IEC 60068-2-30

Management & Protocols

Manageable: Yes
Management:
- Telnet
- HTTPS
- SNMPv3
- CNA
- VLAN
- QoS
- DHCP
- SSH
- CiscoWorks LAN Management Solution (LMS)
- Web Base Management

Media & Performance

Ethernet Technology:
- Fast Ethernet
- Gigabit Ethernet
Media Type Supported: Twisted Pair
Network Technology:
- 10/100Base-TX
- 10/100/1000Base-T
Twisted Pair Cable Standard: Category 5

Memory

Memory Card Supported: Secure Digital (SD) Card
Memory Technology: DRAM
Flash Memory: 64 MB
Maximum Memory: 1 GB
Standard Memory: 256 MB

I/O Expansions

Number of Total Expansion Slots: 4
Expansion Slot Type: SFP
Number of SFP Slots: 4
Shared SFP Slot: Yes

Power Description

PoE (RJ-45) Port: No
Redundant Power Supply: Yes
Power Source: Power Supply

Network & Communication

Layer Supported: 2

Warranty

Limited Warranty: 1 Year

Extended Details

Cisco IE-2000-16TC-G-L Network Switch Part #: IE-2000-16TC-G-L | SKU: CIS209671
