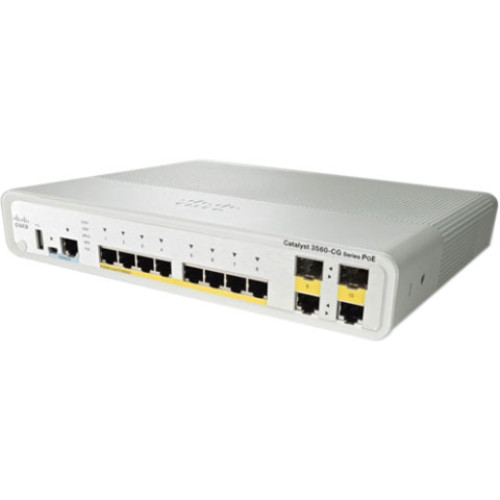

Cisco WS-C3560C-12PC-S Data Networking
Part #: WS-C3560C-12PC-S | SKU: CIS146754

The Cisco Catalyst 3560 Series is a line of fixed-configuration, enterprise-class switches that include IEEE 802.3af and Cisco pre-standard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. These are ideal access layer switches for small enterprise LAN access or branch-office environments. Combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection, they help you deploy new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks.

Cisco WS-C3560C-12PC-S Data Networking

Part Details: Catalyst3560Series, Catalyst 3560C Switch 12 FEPOE 2 x Dual Uplink, IP Base

Need a different version of the Cisco Catalyst 3560 Series Switch Data Networking? View all 28 configurations

Additional Information

Manufacturer	Cisco
Model Name	Catalyst 3560 Series Switch

Cisco Catalyst 3560 Series Switch Specs (pdf)

General Information

Product Type: Ethernet Switch
Product Series: 3560-C
Brand Name: Cisco
Manufacturer: Cisco Systems, Inc
Product Model: WS-C3560C-12PC-S
Product Name: Catalyst WS-C3560C-12PC-S Ethernet Switch
Product Line: Catalyst

Physical Characteristics

Height: 1.8"
Width: 10.6"
Depth: 9.4"
Form Factor:
- Desktop
- Wall Mountable
- Rack-mountable
Weight (Approximate): 4.10 lb

Interfaces/Ports

Number of PoE (RJ-45) Ports: 12
Total Number of Network Ports: 12
Port/Expansion Slot Details:
- 12 x Fast Ethernet Network
- 2 x Gigabit Ethernet Uplink
- 2 x Gigabit Ethernet Expansion Slot
Token Ring Port: No
LRE Port: No
USB: Yes
Uplink Port: Yes

Management & Protocols

Manageable: Yes
Management:
- DHCP
- QoS
- VLAN
- RMON 1,2,3,9
- CiscoWorks LMS
- SNMP v1,v2c,v3
- Syslog
- Telnet
- MIB
- Web-based Management
- CLI

Media & Performance

Ethernet Technology:
- Gigabit Ethernet
- Fast Ethernet
Media Type Supported: Twisted Pair
Network Technology:
- 10/100/1000Base-T
- 10/100Base-TX

Power Description

PoE (RJ-45) Port: No
Input Voltage:
- 110 V AC
- 220 V AC
Power Source: Power Supply

I/O Expansions

Number of Total Expansion Slots: 2
Expansion Slot Type: SFP
Number of SFP Slots: 2
Shared SFP Slot: Yes

Memory

Memory Technology: DRAM
Flash Memory: 64 MB
Standard Memory: 128 MB

Warranty

Limited Warranty: Lifetime

Network & Communication

Layer Supported: 2

Extended Details
