Cisco WS-X4248-RJ45V= Data Networking
Part #: WS-X4248-RJ45V= | SKU: CIS40753

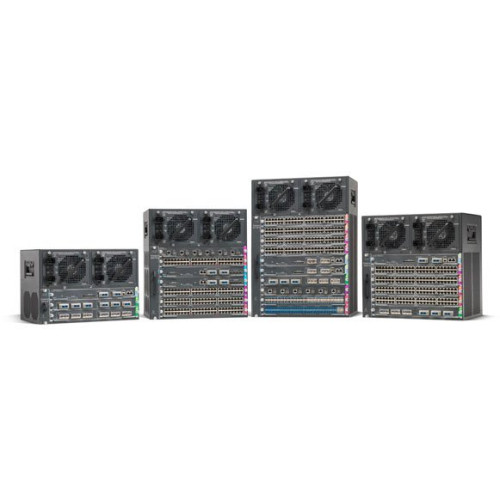

Each Cisco Catalyst 4500 Series chassis model has a different number of available card slots and can accommodate a variety of line card and supervisor options. Customers can choose 48-port 10/100, 10/100/1000 and Power over Ethernet line cards. These cards can be added to the chassis as needed to customize an access, distribution, or server aggregation platform.

Cisco WS-X4248-RJ45V= Data Networking

Part Details: Catalyst 4500 Series Switch, Catalyst 4500 (PoE 802.3af, 10/100, 48-Ports and RJ45)

Need a different version of the Cisco Catalyst 4500 Series Switch Data Networking? View all 23 configurations

Additional Information

Manufacturer	Cisco
Model Name	Catalyst 4500 Series Switch

Cisco Catalyst 4500 Series Switch Specs (pdf)

General Information

Product Type: Switching Module
Brand Name: Cisco
Manufacturer: Cisco Systems, Inc
Product Model: WS-X4248-RJ45V=
Product Name: 48-port IEEE 802.3af-compliant PoE Switching Module

Technical Information

Application/Usage: Switching Network

Physical Characteristics

Dimensions: 1.2" Height x 14.4" Width x 16" Depth

Interfaces/Ports

Interfaces/Ports: 48 x 10/100Base-TX LAN
Interfaces/Ports Details: 48 x RJ-45 10/100Base-TX LAN

Other

Compatibility:
- Catalyst 4503 Switch
- Catalyst 4506 Switch
- Catalyst 4507R Switch
- Catalyst 4510R Switch
- Catalyst 4003 Switch
- Catalyst 4006 Switch
- Catalyst 4503 Switch
- Catalyst 4506 Switch
- Catalyst 4507R Switch
- Catalyst 4510R Switch
- Catalyst 4003 Switch
- Catalyst 4006 Switch
System Requirements:
- One Expansion Slot
- Minimum Software Requirements:
- Cisco IOS Software Release: 12.2(18)EW
- Catalyst OS Version: 8.3(1)GLX
Additional Information:
- To provide PoE with the 48-port PoE 10/100BASE-TX switching module in a Catalyst 4006 switch, you must have a power entry module (PEM) and a power shelf installed
- Power over Ethernet: Up to 15.4 W per powered device on all 48 ports (to a 312 W total on the Catalyst 4006)
- Auto MDIX is not supported
- Power regulation: Internal on the switching module
- Enterprise and commercial: Designed to power IP phones, wireless base stations, video cameras, and other IEEE-compliant powered devices

Environmental Conditions

Altitude: -196.85 ft to 13123.36 ft Operating
Humidity: 10% to 90% Non-condensing Relative Humidity

Media & Performance

Connectivity Media: UTP 10/100Base-TX

Extended Details
