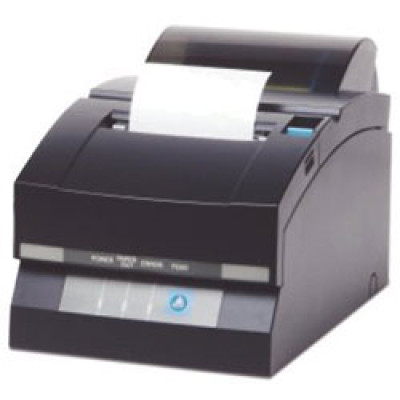

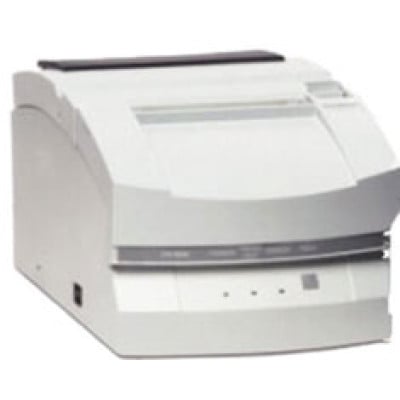

Citizen CD-S500 Receipt Printer

Citizen CD-S500 Receipt Printer

The Citizen CD-S500 is tabletop or wall mountable with an internal or external power supply. The CD-S500 includes built in non-volatile memory, which retains data if the power source is removed. The CD-S500 is designed to accommodate several printing applications including receipts, coupons, tickets, daily reports, kitchen slips and delivery slips. It features a logic seeking print head, is ESC/POS compatible and features a built-in buzzer. The CD-S500 also features two-color printing capability.
  • Built-in buzzer
  • Built-in NV memory
  • Drop-in paper handling
  • ESC/POS compatibility
  • High-speed printing
  • Logic-seeking control
  • Memory switches
  • Multiple interface options
  • Selectable paper width
  • Two color printing
Drop-in Paper Loading, Dot Matrix Impact Printer
  • High-speed printing
  • Drop-in paper handling
  • Logic-seeking control
  • Selectable paper width
  • Two color printing
  • ESC/POS* compatibility
  • Built-in buzzer
  • Built-in NV memory
  • Multiple interface options
  • Memory switches

Specifications

Printing Method Serial dot impact (Logic-seeking control)
Printing Direction Bi-directional
Font 7x 9/9x9 matrix
Number of Columns 40/33 or 42/35 columns
Printing width 76/69.5/57.5mm
Printing Speed 5.0 lines/sec. (40 columns)
Character size (wxh) 1.25x3.12mm (7x9 dots), 1.57x3.12mm (9x9dots)
Character set Alphanumeric, International, 9-Code page versions
Line Spacing 1/144inch
Line feed speed 40 lines/sec
Paper feed method Friction
Paper 76/69.5/57.5mm +/- 0.5mm x Æ 83mm, plus one copy
Interface Centronics Parallel, Serial, USB, 10/100 base T
Input buffer 4k/40 bytes
NV bit map data area 128k
Drawer kick-out 2 drawers
Ink ribbon Red/black, Black, Purple Cassette
Power supply DC24V +/- 7%
AC adaptor Input: AC 100-230V, 1.3A Output: DC24V +/- 5%
Weight 2.8kg standard, 3.2kg with winder
Dimensions (wxdxh) 156 x 258.7 x 174.4mm (standard)

156 x 258.7 x 131.9mm (w/oAC adapter)

156 x 288.7 x 197.8mm (w/winder)

156 x 288.7 x 155.3mm (w/o AC adapter)

Operating environment 0-50°C, 10-90% RH
Storage environment -20-70°C, 5-90%RH
Reliabilty Printer:MCBF 7.5 million lines; Cutter 1 million cuts
Safety standards UL, C-UL, FCC Class A, TUV-GS, CE Marking
