CognitiveTPG DBD42-2085-G1E Barcode Label Printer CognitiveTPG DBD42-2085-G1E Barcode Label Printer CognitiveTPG DBD42-2085-G1E Barcode Label Printer CognitiveTPG DBD42-2085-G1E Barcode Label Printer CognitiveTPG DBD42-2085-G1E Barcode Label Printer CognitiveTPG DBD42-2085-G1E Barcode Label Printer

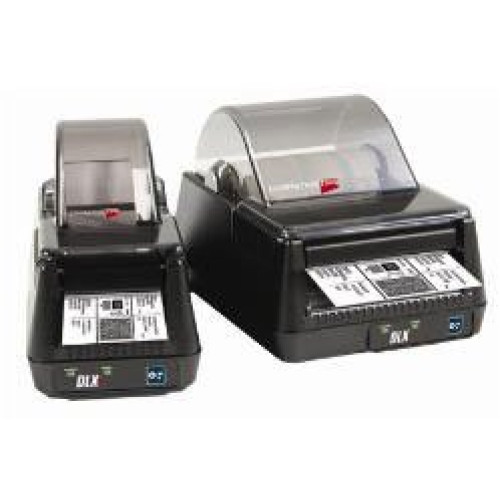

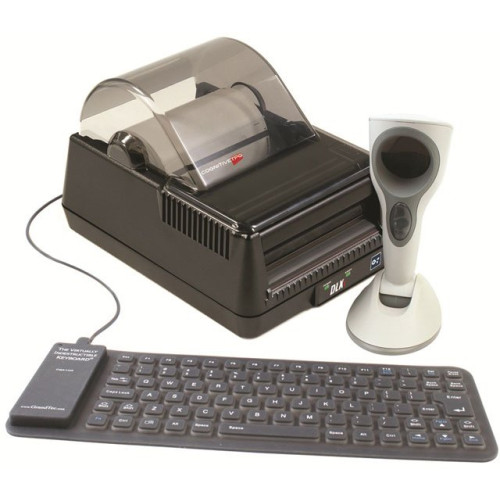

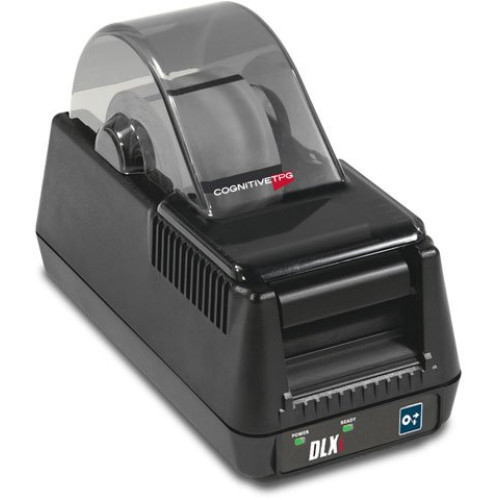

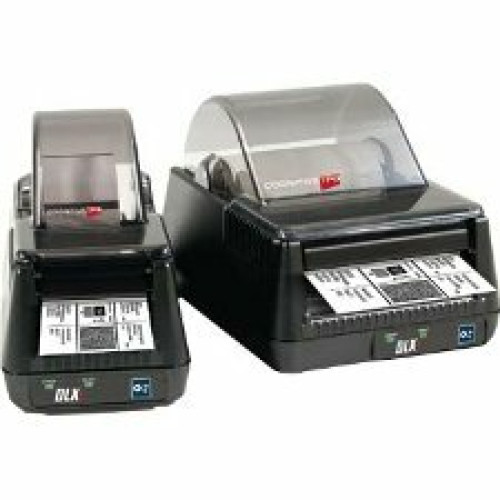

CognitiveTPG DBD42-2085-G1E Barcode Label Printer
Part #: DBD42-2085-G1E | SKU: COG168024

Robust and rugged are the hallmarks of our thermal label printers. The DLXi combines this legendary reliability with the latest communication interfaces and performance.

CognitiveTPG DBD42-2085-G1E Barcode Label Printer

Part Details: Desktop direct thermal label printer, 203 DPI, maximum print width 4", 8MB, print speed 5" per second, Interface Options: USB-A, Serial, Ethernet, North American Power cord included
Need a different version of the CognitiveTPG DLXi Barcode Label Printer? View all 23 configurations
MSRP: $783.02 Price: $527.84
In Stock

Additional Information

Interface Options Ethernet, Parallel, Serial (RS-232), USB
Manufacturer CognitiveTPG
Max Roll Outer Diameter 4.7
Model Name DLXi
Print Resolution 203 dpi
Print Speed 5 ips
Printer Type Desktop
Printing Technology Direct Thermal
CognitiveTPG DLXi Specs CognitiveTPG DLXi Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 5 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 2.20"
  • Recommended Use: Label Print
  • Features: Peel Facility
  • Barcode Symbology Supported:
    • Add2
    • Add5
    • Codabar
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • D2 of 5
    • I-2/5
    • S2 of 5
    • EAN-8
    • EAN-8+
    • EAN-13
    • EAN-13+
    • EAN 128
    • Maxi Code
    • MSI1
    • MSI
    • Plessey
    • POSTNET
    • UPC-A
    • UPC-A+
    • UCP-E
    • UPC-E1
    • Data Matrix
    • Aztec Code
    • QR Code
    • RSS
    • PDF-417

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: CognitiveTPG
  • Manufacturer: Cognitive TPG
  • Product Model: DLXi
  • Product Name: DLXi Label Printer

Physical Characteristics

  • Height: 6.1"
  • Width: 4.7"
  • Depth: 9.4"
  • Form Factor: Desktop
  • Weight (Approximate): 3.10 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • DLXi Label Printer
    • Quick Start Guide
    • USB Cable
    • Power Supply
    • Power Cord
    • Special Serial Cable
    • DLXi Label Printer
    • Quick Start Guide
    • USB Cable
    • Power Supply
    • Power Cord
    • Special Serial Cable

Media Types & Handling

  • Maximum Label Width: 2.40"
  • Media Type:
    • Black Bar
    • Notch
    • Gap
  • Maximum Roll Diameter: 4.70"

Fonts & Emulation

  • Language Emulation:
    • CPL
    • ZcPL
    • EcPL

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Power Description

  • Input Voltage: 24 V DC
  • Power Source: Power Adapter

Warranty

  • Limited Warranty: 2 Year
Extended Details

Recommended Accessories for Model: CognitiveTPG DBD42-2085-G1E Barcode Label Printer

  • CognitiveTPG TPG-K320 Accessory
    Part #: TPG-K320 | SKU: COG168601

    Cognitive Standard Power Cord - 110V AC
    Price: $16.49

  • CognitiveTPG 189-9961425 Accessory
    Part #: 189-9961425 | SKU: COG409635

    MEDIA GUIDE AND SPINDLE KIT FOR 4" DT BLASTER, ADVANTAGE AND DLXI, REPLACES 60-98-14-0003
    Price: $17.57

  • CognitiveTPG 370-006-01 Accessory
    Part #: 370-006-01 | SKU: COG52730

    Power Supply - Switching - 100-240 VAC - 24V DC - 70Watt - Requires Power Cord (Part # 03130) - Compatible with CognitiveTPG DLX Series

  • CognitiveTPG 102-247-02K Accessory
    Part #: 102-247-02K | SKU: COG168603

    Cognitive Adjustable Media Tray For DLX 4 DT and DLX 4 TT Printers

  • CognitiveTPG 189-9961427 Accessory
    Part #: 189-9961427 | SKU: COG409637

    MEDIA GUIDE AND SPINDLE KIT FOR 2" DT BLASTER, ADVANTAGE AND DLXI, REPLACES 60-98-14-0002
View All Options

Recommended Labels for Model: CognitiveTPG DBD42-2085-G1E Barcode Label Printer

  • CognitiveTPG 03-02-1764 Barcode Label
    Part #: 03-02-1764 | SKU: COG8062

    Label - Direct thermal - Removable adhesive - 2.4" x 1" - 1,685 labels/roll - 12 roll case
    MSRP: $223.30 Price: $164.67
    In Stock

  • CognitiveTPG 03-02-1520 Barcode Label
    Part #: 03-02-1520 | SKU: COG8043

    1.15" x 1" Paper Label - Direct thermal - 2 across - 3,370 labels/roll - 12 roll case
    MSRP: $142.38 Price: $105.04
    In Stock

  • CognitiveTPG 03-02-1656 Barcode Label
    Part #: 03-02-1656 | SKU: COG8054

    2.3" x 1" Thermal Transfer Paper Labels, 1685 Labels Per Roll, Core Size/Inner Diameter: 1.5", Adhesive: Permanent, Color: White, Price for 12 Rolls
    MSRP: $125.61 Price: $92.67
    In Stock

  • CognitiveTPG 03-89-1006 Barcode Label
    Part #: 03-89-1006 | SKU: COG8013

    2.3-inch x 1-inch - Black Mark - Direct Thermal Paper Labels - 1685 Labels Per Roll - Core Size/Inner Diameter: 1.5-inch - Adhesive: Permanent - Color: White - Price for 12 Rolls
    MSRP: $145.20 Price: $107.07
    In Stock

  • CognitiveTPG 03-02-1545 Barcode Label
    Part #: 03-02-1545 | SKU: COG8006

    1.15" x 1" Direct Thermal Paper Labels, 3370 Labels Per Roll, Core Size/Inner Diameter: 1.5", Adhesive: Permanent, Color: White, Price for 12 Rolls
    MSRP: $145.20 Price: $107.07
    In Stock
View All Options

Recommended Ribbons for Model: CognitiveTPG DBD42-2085-G1E Barcode Label Printer

  • Cognitive 04-00-0028-08 Ribbon
    Part #: 04-00-0028-08 | SKU: COG8402

    Cognitive Label Ribbon - Thermal Transfer - Black - 1 roll
    Price: $15.40
    In Stock

  • Cognitive 04-00-0028-07 Ribbon
    Part #: 04-00-0028-07 | SKU: COG8401

    Wax-Resin Ribbon, Black, 4.25" x 263', Rolls per Case: 12, Core Size: 0.5", For Use With(Labels): Polypropylene Labels, For Use With(Printer): Desktop
    Price: $16.43
    In Stock

  • CognitiveTPG 04-00-0031-02-R Ribbon
    Part #: 04-00-0031-02-R | SKU: COG143925

    Wax-Resin Ribbon, Black, 2.4" x 3150', rolls/case: 1, Core Size: 1", For Use With (Labels): Polypropylene Labels, For Use With (Printer): Industrial, single roll. Available as a case (04-00-0031-02)
    Price: $15.40
    In Stock

  • Cognitive 04-00-0028-03 Ribbon
    Part #: 04-00-0028-03 | SKU: COG8398

    Blaster Advantage, 4.25" x 263' Black Resin Ribbon, Compatible with Desktop printers and Polyester Labels, Core Size: 0.5", Priced per Roll
    MSRP: $20.00 Price: $18.00
    In Stock

  • Cognitive 04-00-0031-01 Ribbon
    Part #: 04-00-0031-01 | SKU: COG8403

    Wax Ribbon, Black, 2.4" x 263', Rolls per Case: 12, Core Size: 0.5", For Use With(Labels): Paper Labels, For Use With(Printer): Desktop, Available as a single roll (04-00-0031-01-R)
    MSRP: $37.44 Price: $32.46
    In Stock
View All Options
