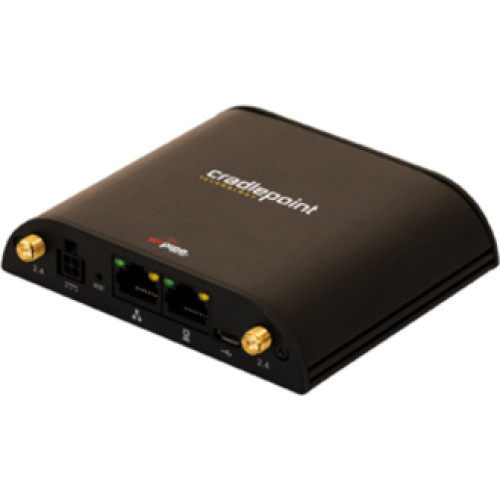

CradlePoint IBR600LE-VZ Telecommunication Equipment
Part #: IBR600LE-VZ | SKU: CRA176358

Products and parts from CradlePoint.

CradlePoint IBR600LE-VZ Telecommunication Equipment

Part Details: CradlePoint COR IBR600LE IEEE 802.11n Wireless Router - 4G - 2.40 GHz ISM Band - 4 x Antenna - 6.75 MB/s Wireless Speed - 1 x Network Port - 1 x Broadband Port - USB - Desktop

Need a different version of the CradlePoint Parts Accessory? View all 536 configurations

Additional Information

Manufacturer	CradlePoint
Model Name	Parts

General Information

Product Type: Wireless Router
Brand Name: CradlePoint
Manufacturer: CradlePoint, Inc
Product Model: IBR600LE
Product Name: COR IBR600LE Integrated Broadband Router
Product Line: COR

Physical Characteristics

Height: 0.9"
Width: 4"
Depth: 3.3"
Form Factor: Desktop
Weight (Approximate): 7.20 oz

Interfaces/Ports

Ethernet Port: Yes
Fast Ethernet Port: Yes
Gigabit Ethernet Port: No
USB: Yes
Number of Network (RJ-45) Ports: 1
Number of Broadband (RJ-45) Ports: 1
PoE (RJ-45) Port: No
VGA: No
Network (RJ-11): No
Powerline: No
Management Port: No
Serial: No

Wireless Specifications

Broadband Transmission Technology: Cellular
Wireless LAN Standard: IEEE 802.11n
ISM Band: Yes
UNII Band: No
ISM Maximum Frequency: 2.40 GHz
Cellular Data Connectivity Technology:
- LTE
- EVDO
Cellular Generation: 4G
Cellular Network Supported: CDMA2000 1X
Total Number of Antennas: 4
Wireless Transmission Speed: 54 Mbps
Antenna Connector: RP-SMA Connector
Features:
- Quality of Service (QoS)
- MIMO Technology
Wireless Security:
- WEP
- WPA
- WPA2
- WPA2-Enterprise
- AES

Management & Protocols

Management:
- VLAN
- DHCP
- Web Based Management
- SNMP v1/v2c/v3
- CLI
- WiPipe Central Management
Security Features:
- VPN Pass-Through
- IPSec
- PPTP
- L2TP
- PPPoE
- MAC Address Filtering
- NAT
- DMZ
- Website Filtering
- Content Filtering
- SPI
- SSH

Other

Certifications & Standards:
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.1Q
- FCC
System Requirements:
- Web Browsers:
- Firefox v2.0
- Internet Explorer v7.0
- Chrome
- Safari v1.0

Power Description

Input Voltage: 12 V DC
Power Source: AC Adapter

Network & Communication

Network Technology: 10/100Base-TX

I/O Expansions

Expansion Slots: 1 x SIM Card

Extended Details
