Cubiscan 1200-AKL Scale
Part #: 1200-AKL | SKU: CUB364476

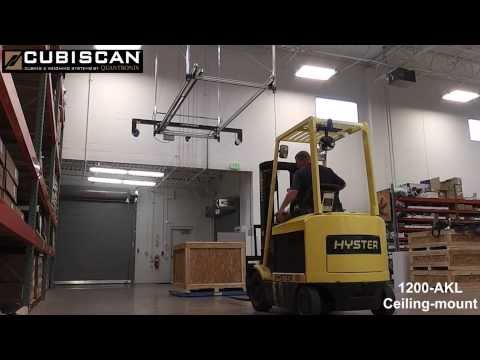

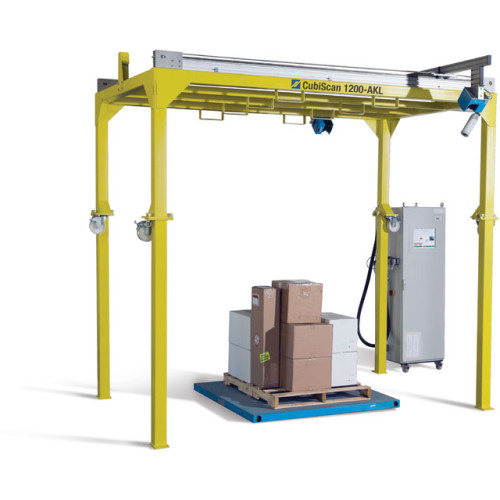

The CubiScan 1200-AKL is a large-scale static dimension scanning device that can work in conjunction with a heavy-capacity floor scale (or in a stand-alone position when weight is not required). Its overhead-mounted sensor configuration provides a comprehensive view of the freight measurement area while allowing access from any direction. In certain cases (depending on location and facility characteristics) it can be ceiling-mounted, providing unobstructed access for the user and protection against equipment damage. The powerful and accurate sensors measure freight in any orientation and of virtually any shape, color, or package material. The CubiScan 1200-AKL utilizes advanced Class 1 infrared laser sensing technology that is safe for operators and freight. Two laser scanners are fixed to parallel guides that pass over the freight (normally taking 5 seconds). The system scans a three-dimensional measurement area without special illumination or contact. In its standard configuration it is capable of measuring from six inches to 8′ x 8′ x 9′ (2.5 x 2.5 x 2.75 meters). Measurements resolution is ± 0.5 inches (10mm) on length, width, and height. Larger, customized versions of the system are available.

Cubiscan 1200-AKL Scale

Part Details: 1200-AKL, The CubiScan 1200-AKL is a large-scale static dimension scanning device that can work in conjunction with a heavy-capacity floor scale (or in a standalone position when weight is not required). For Domestic Use Only.

Need a different version of the Cubiscan 1200-AKL Scale? View all 2 configurations

Additional Information

Manufacturer	Cubiscan
Model Name	1200-AKL

Cubiscan 1200-AKL Specs (pdf)
