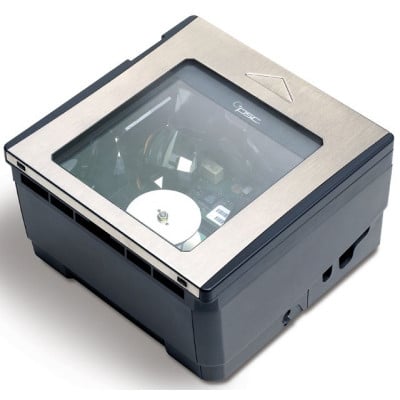

Datalogic Magellan 2300HS Barcode Scanner Datalogic Magellan 2300HS Barcode Scanner

Datalogic Magellan 2300HS Barcode Scanner

Datalogic Magellan 2300HS Barcode Scanner

The Magellan 2300HS horizontal scanner was designed using Magellan 8000 series technology to specifically optimize performance for medium to high throughput horizontal applications in grocery, drug, department and general retail environments. Unlike competitive horizontal scanners, the Magellan 2300HS offers category leading scanning performance, unique value added software features like Productivity Index Reporting, and our advanced FirstStrike decoding software. And because it's based on the Magellan platform, it does so much more.
Discontinued - Need Assistance
See all options
Datalogic Magellan 2300HS Specs Datalogic Magellan 2300HS Specs (pdf)

Mechanical

Length

  • 6.0” / 15.2 cm
Width
  • 6.0” / 15.2 cm
Depth
  • 3.83” / 9.7 cm
Weight
  • 2.5 lbs. / 1.1 kg

Optical

Scan lines

  • 18
Rate
  • 6,000 RPM
Scan Lines/Sec.
  • 1,800
Depth-of-field
  • 6.0” / 15.3 cm

Environmental

Temperature rating

  • Operating: 50° to 104° F / 10° to 40° C
  • Storage/transport: -40° to 158° F / -40° to 70° C

Humidity

  • Operating: 5 to 95% NC
  • Storage/transport: 5 to 95% NC

Electrical

AC Power requirements

  • 90-265 VAC, 47-63 Hz
  • 4.0 Watts (nominal), 9.6 Watts (maximum), 2.5 Watts (sleep mode)

Decoding Capability

The Magellan 2300HS autodiscriminates between all of the following supported symbologies

  • UPC Versions A&E
  • UPC Supplementals (Bookland & Coupon Code)
  • UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
  • Reduced Space Symbology (RSS-14 expanded and stacked)
  • EAN 8, 13
  • JAN 8, 13
  • EAN/JAN two label
  • UCC/EAN 128
  • Code 39 (with full ASCII)
  • Code 128
  • Code 93
  • I 2 of 5
  • Standard 2 of 5
  • Italian Pharmacode
  • Codabar/NW7
  • MSI/Plessey

Communications

Host

  • RS232, IBM 46XX, IBM USB, USB Keyboard

Other

  • Powered RS232 auxiliary port

Safety and Regulatory

Electrical

  • EN60 950 (TÜV Europe)
  • PSE-Mark (Japan); UL 60950 (USA)
  • CSA 60950 (Canada)

Emissions

  • CISPR22-B (World)
  • FCC part 15 Class B (USA)
  • VCCI-B (Japan)
  • EN 55022-B (Europe)
  • NOM (Mexico)

Laser Safety

  • CDRH Class IIa (USA/Canada)
  • EN 60825-1 Class 1(Europe)
  • IEC 60825-1 Class 1 (World) (CAUTION: Laser Radiation – do not stare into beam)
  • IEC 60825 Class 1 (Europe)

Other

EAS compatibility

  • Integrated EAS hardware will work with Counterpoint IV, V, VI and VII models available from Checkpoint® Systems
  • Good read acknowledgement with Sensormatic®
Extended Details
