Datalogic 345-1101-025 Mobile Computer
Part #: 345-1101-025 | SKU: DAT26028

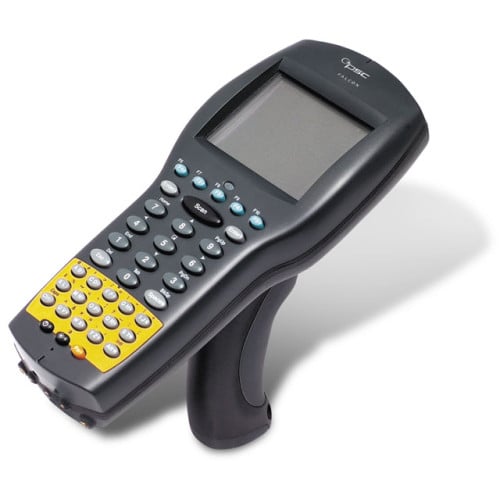

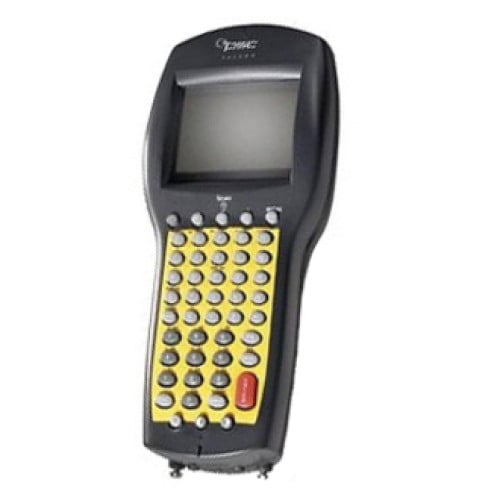

The Falcon 345 is the latest member of the growing family of feature-rich Falcon Industrial Data Collection Terminals from PSC. Engineered for fast accurate customizable real-time automatic data collection to solve the needs of businesses in their quest for greater efficiency productivity and profitability. The Falcon 345 was designed for easy integration in the supply chain systems of companies involved in logistics manufacturing retailing warehousing and distribution. At the heart of the Falcon 345 Portable Data Terminal is a powerful 32 bit 486 class processor running at 33MHz with 8MB of RAM and 2MB of Flash ROM. This flexible architecture also supports an internal PCMCIA Type II PC card for additional memory or wireless LAN connectivity. Because the Falcon 345 use a standard operating system DOS 6.22 you can run applications previously developed for other Falcon terminals and other DOS terminals. You can also use popular PC development tools like PSC's Universal Program Generator (UPG) or RF SDK to create custom applications for your data collection needs.

Datalogic 345-1101-025 Mobile Computer

Part Details: Falcon 345 Portable Data Terminal (Cisco, 11 Mbps, 48-Key Keypad and Laser)

Need a different version of the Datalogic Falcon 345 Mobile Computer? View all 3 configurations

Additional Information

Manufacturer	Datalogic
Model Name	Falcon 345
Operating System	DOS
RAM Memory	8 MB
Scanner Type	Laser
Style	Gun

Datalogic Falcon 345 Specs (pdf)

Technical Information

Scanner Range: Standard Range
Connectivity Technology: Wireless
Light Source: Laser
Drop Specification: 48" To Concrete
Barcode Symbology Supported:
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- JAN-8
- JAN-13
- EAN Add-ons
- Code 128
- Interleaved 2 of 5
- Code 39
- Standard 2 of 5
- Code 128 Full ASCII
- Matrix 2 of 5
- Code 93
- MSI/PLESSEY
- Code 11
- Codabar
- ISBN Conversion
- Label Codes 4/5
- Ames

General Information

Product Type: Handheld Terminal
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Model: 345
Product Name: Falcon 345 Portable Data Terminal
Product Line: Falcon

Physical Characteristics

Height: 1.6"
Width: 2.5"
Length: 7.8"
Weight (Approximate): 1.08 lb

Other

Package Contents:
- Falcon 345 Portable Data Terminal
- Companion CD<
- Falcon 345 Portable Data Terminal
- Companion CD<
Certifications & Standards:
- Electrical:
- CE
- Emissions:
- FCC Part 15 - Class A
- Laser Classification:
- CDRH Class II
- IEC 60825 Class 2
Additional Information:
- IR Communication Ports:
- Communication with Falcon IR dock
- Supports IR portable printer
- IrDA compatible
- Speaker:
- Programmable for volume, duration and pitch
- 84 dB @ 24"

Display & Graphics

Display Screen Type: LCD
Number of Lines: 16
Number of Characters: 26
Display Color: Monochrome
Screen Resolution: 128 x 160

Network & Communication

Wireless LAN: Yes
Antenna Form Factor: Internal
Wireless LAN Standard: IEEE 802.11b
Wireless Security: WEP 40 bit

Keyboard/Keypad

Keyboard Type: Alphanumeric
Number of Keys: 48

Memory

Flash Memory: 2 MB
Standard Memory: 8 MB

Warranty

Limited Warranty: 1 Year

Software

Operating System: DOS

Processor & Chipset

Processor Speed: 33 MHz

I/O Expansions

Expansion Slot Type: PC Card Type II
