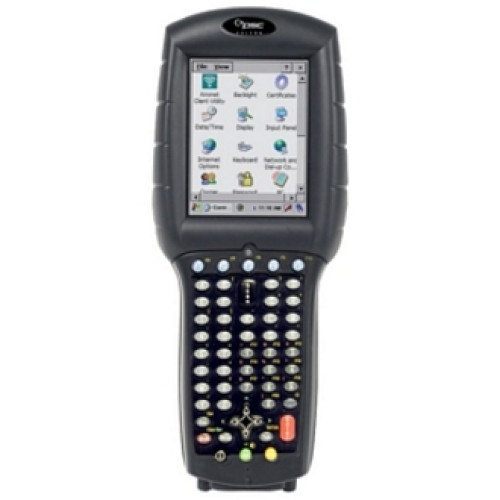

Datalogic 4423-11221 Mobile Computer
Part #: 4423-11221 | SKU: DAT20402

The Falcon 4410 and 4420 package the power of the latest mobile computing technology in a rugged and ergonomic mobile computer designed to master your inventory management applications. Whether in the harsh environment of a distribution center or in a fast-paced retail-in-store environment, the Falcon 4410-4420 has the feature set, accessories, and tools to meet your needs.

Datalogic 4423-11221 Mobile Computer

Part Details: Datalogic Falcon 4423 Mobile Computer - Intel XScale 400 MHz - 64 MB RAM - 64 MB Flash - 3.5" LCD - 52 Keys - Alphanumeric Keyboard - Wireless LAN

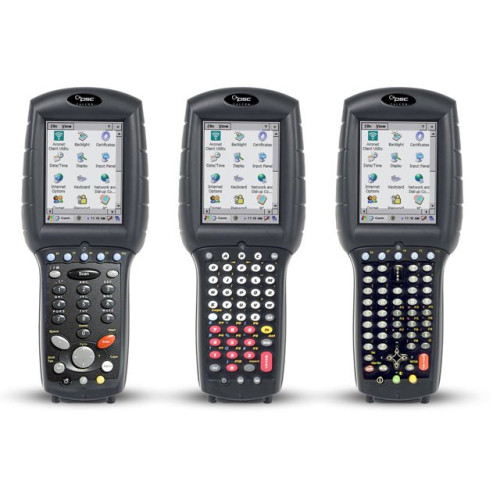

Need a different version of the Datalogic Falcon 4420 Mobile Computer? View all 11 configurations

Additional Information

Display Resolution	240 x 320
IP Rating	IP54
Manufacturer AIDC	DataLogic
Model Name	Falcon 4420
Operating System	Windows CE
RAM Memory	64 MB
Scanner Type	Laser
Style	Gun

DataLogic Falcon 4420 Specs (pdf)

Technical Information

Operating System: Windows CE .NET 4.2
Processor: Intel PXA255 XScale 400MHz
Data Collection Type: Wireless
Wireless Security:
- EAP-TLS
- PEAP
- WPA Home (PSK)
- WEP 40 bit
- WEP 64 bit
- WEP 128 bit
Scanner Type: Laser Standard Range
Symbologies Supported:
- Codabar
- Code 32
- Code 39
- Code 39 Full ASCII
- Code 93
- Code 128
- Code 128 Extensions
- EAN-128
- EAN/JAN-8
- EAN/JAN-13
- EAN-UCC Composite
- Interleaved 2 of 5
- Matrix 2 of 5
- MSI/PLESSEY
- RSS-14
- RSS-Limited
- Standard 2 of 5
- UPC-A
- UPC-E
- UPC/EAN 2 Digit Extensions
- UPC/EAN 5 Digit Extensions

General Information

Manufacturer: PSC Inc.
Product Line: Falcon
Product Name: Falcon 4423 Mobile Computer

Physical Characteristics

Display: 3.5" Color QVGA - Touch Screen LCD
Display Resolution: 320 x 240
User Accessible Expansion Slot: PC Card Type I/II
Keyboard: 52 Key Full Alphanumeric Integrated
Battery Capacity: 2000 mAh
Battery Type: Lithium Ion
Dimensions: 1.6" (41mm) x 3.5" (89mm) x 9" (229mm)

Environmental Conditions

Environmental Sealing: IP54DW
Temperature:
- -10Â°C (14Â°F) to 50Â°C (122Â°F) Operating
- -25Â°C (-13Â°F) to 70Â°C (158Â°F) Storage
Humidity: 5 to 95% Non-condensing
Drop Spec: 5' To Concrete Multiple

Wireless Data Communications

Network Connectivity: WLAN 802.11b
Maximum RF Data Rate Supported: 11 Mbps
Frequency Band/Bandwidth: 2.4GHz

Other

Additional Information: Communication Ports: USB 1.1 RS-232
Package Contents: Falcon 4423 Mobile Computer Battery Tethered Stylus Falcon Desktop Utility Software Falcon Management Utility Software

Memory

RAM Memory: 64MB
Flash Memory: 64MB

Agency Approvals

Agency Approvals: Electrical: EN60950 UL60950 CSA60950 Battery: IATA/UN Emissions: FCC Part 15C EN55022 VCCI ICES-003 CNS 13438 AS/NZS 3548 Radio: FCC Part 15:247 EN 300 328 Laser Classification: CDRH Class II IEC 60825-1 Class 3R

Warranty

Manufacturer Warranty: 1 Year(s) Limited

Extended Details
