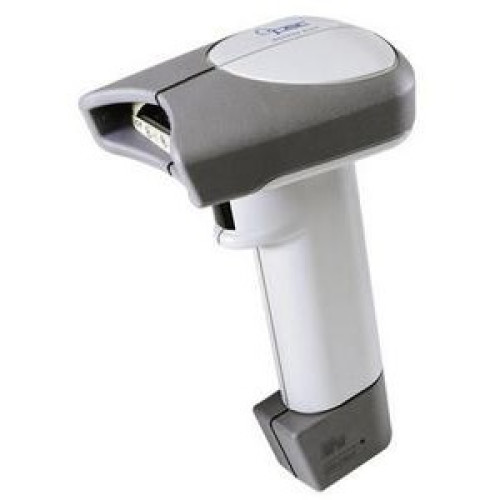

Datalogic 668112-101001-0104 Barcode Scanner
Part #: 668112-101001-0104 | SKU: DAT27986

The QuickScan 6000 Plus Handheld Scanner offers great performance at a very affordable price. With a high first pass read rate and the best speed-to-read of any scanner in its class the QS6000 Plus speeds retail checkout. And its 13 inch (33 cm) depth of field with 100 percent UPC labels extends the user's working range. Support for all popular POS interfaces and keyboard wedges is standard. The QS6000 Plus reads all major bar code symbologies auto-discriminating between codes. Full support is also included for the UPC-EAN family add-ons and other types of code extensions.

Datalogic 668112-101001-0104 Barcode Scanner

Part Details: Keyboard wedge, CL2, ENG ST, Logo, Cable 8-0424-03 and Stand.

Need a different version of the Datalogic QS6000 Plus Barcode Scanner? View all 13 configurations

Additional Information

Manufacturer AIDC	DataLogic
Model Name	QS6000 Plus
Scanner Capability	1D
Scanner Type	Laser

DataLogic QS6000 Plus Specs (pdf)

Technical Information

Scan Rate: 42 scan/s
Connectivity Technology: Cable
Light Source: Laser
Barcode Symbology Supported:
- UPC-A
- UPC-E
- EAN-13
- EAN-8
- JAN-13
- JAN-8
- Code 128
- EAN-128
- Codabar
- Pharmacode 39
- Code 93
- Interleaved 2 of 5
- Standard 2 of 5
- IATA
- Code 39
- MSI/PLESSEY
- UPC-A
- UPC-E
- EAN-13
- EAN-8
- JAN-13
- JAN-8
- Code 128
- EAN-128
- Codabar
- Pharmacode 39
- Code 93
- Interleaved 2 of 5
- Standard 2 of 5
- IATA
- Code 39
- MSI/PLESSEY
Maximum Scan Resolution: 5 mil
Depth of Field:
- 20"@20 mil
- 1" - 3"@5 mil
- 0 mil - 13"@13 mil
- 0.50" - 6"@7.50 mil
- 0 mil - 9"@10 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Model: QS6000 Plus
Product Name: QuickScan QS6000 Plus Barcode Reader
Product Line: QuickScan

Physical Characteristics

Height: 6.5"
Width: 2.8"
Depth: 4.2"
Weight (Approximate): 6.50 oz

Interfaces/Ports

Host Interface: Keyboard Wedge

Other

Package Contents:
- QS6000 Plus Barcode Reader
- Autosense Stand
- QS6000 Plus Barcode Reader
- Autosense Stand

Warranty

Limited Warranty: 5 Year

Power Description

Input Voltage: 14 V DC

Extended Details

Recommended Accessories for Model: Datalogic 668112-101001-0104 Barcode Scanner

Datalogic 8-0734-08 Accessory
Part #: 8-0734-08 | SKU: DAT21693

USB Cable (12 feet, Serial A, POT) for the QuickScan 2500
Datalogic 8-0481-08-B Accessory
Part #: 8-0481-08-B | SKU: DAT21694

USB cable, 12 ft. straight, black. For QS6000, QS6500, QS2500, PS7000, MG1000i series.
Datalogic 8-0737-11 Accessory
Part #: 8-0737-11 | SKU: DAT28007

Cable - Datalogic Magellan 9500 - RJ-45 Male Serial - AUX Port - 12ft - ROHS
Datalogic 8-0738-01 Accessory
Part #: 8-0738-01 | SKU: DAT26093

Cable Assembly (12 Feet, Keyboard Wedge, 5/6 Din, IBM, AT/PS2, POT - E/P, ROHS)
Datalogic 8-0423-80 Accessory
Part #: 8-0423-80 | SKU: DAT2936

Cable Assembly (12 ft., RS and 9D)
