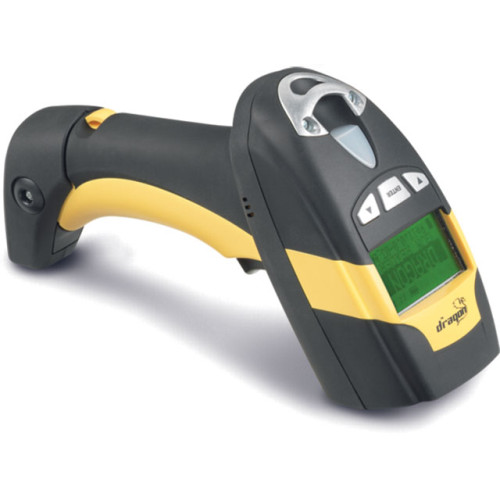

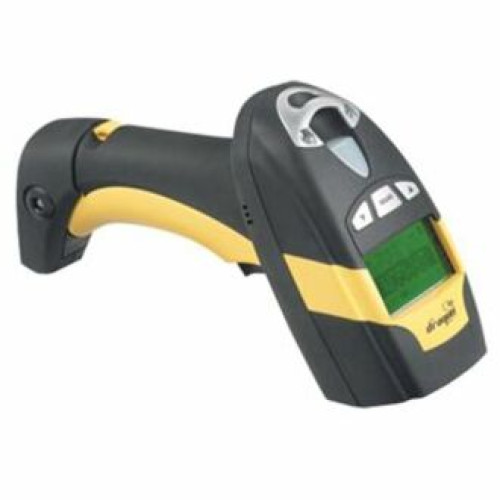

Datalogic 902201770 Barcode Scanner
Part #: 902201770 | SKU: DAT7607

The Dragon family offers ergonomics, robustness and high reliability for barcode reading in industrial environments. The Dragon's features include a clearly audible beeper, bright good read LEDs for areas where noise levels are normally high, and aim mode, to help point to the right code. Optical parts are completely suspended on shock absorbers and a careful choice of the body materials, such as co-molded rubber, protect the Dragon from damage due to falls. The enhanced architecture, based on a M16 high-speed microprocessor, provides the Dragon with a much faster reading speed of standard codes, as well as the ability to read poorly printed and damaged codes. Puzzle Solver Technology, a patent from Datalogic, adds further strength to the Dragon powerful engine. In all applications where mobility is a value, the new Dragon M represents the key to increase productivity and flexibility in the working area. Dragon M communicates through a low power, license-free radio in the 433 Mhz band (910 Mhz for USA version) and allows bi-directional communication between the base station and the host. Dragon M also includes a display and a 3 push-button keypad. Thanks to these features, the operator can receive information from the host, actively interact with the central system and visualize the code read. The cordless system offers scalable solutions to solve simple applications and complex projects.

Datalogic 902201770 Barcode Scanner

Part Details: Dragon Cordless, M101 version, scanner only, includes display. Cables not included. See accessories.

Need a different version of the Datalogic Dragon Barcode Scanner? View all 3 configurations

Additional Information

Manufacturer AIDC	DataLogic
Model Name	Dragon
Scanner Capability	1D

DataLogic Dragon Specs (pdf)

Technical Information

Scan Rate: 35 scan/s
Connectivity Technology: Wireless
Light Source: Laser
Barcode Symbology Supported:
- Industrial 2 of 5
- Code 39 (plus Code 32 Cip 39)
- EAN/UPC
- EAN-128
- Code 128
- Code 93
- Codabar
- Code 49
- Code MSI
- Code 11
- Code 16K
- ISBN/ISSN
- ISBT 128
- RSS Code
- Interleaved 2 of 5
- Industrial 2 of 5
- Code 39 (plus Code 32 Cip 39)
- EAN/UPC
- EAN-128
- Code 128
- Code 93
- Codabar
- Code 49
- Code MSI
- Code 11
- Code 16K
- ISBN/ISSN
- ISBT 128
- RSS Code
- Interleaved 2 of 5
Maximum Scan Resolution: 5 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Model: M101/D
Product Name: Dragon Mobile M101/D Barcode Reader
Product Line: Dragon

Physical Characteristics

Weight (Approximate): 13.93 oz

Interfaces/Ports

Host Interface: Multi-interface

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- Dragon Mobile M101 Barcode Reader
- Li-ION Battery
- Dragon Mobile M101 Barcode Reader
- Li-ION Battery
Certifications & Standards: RoHS Compliance
Additional Information:
- Interfaces Supported :
- USB
- RS-232
- Wedge
- RS485

Warranty

Limited Warranty: 3 Year

Battery Information

Battery Chemistry: Lithium Ion (Li-Ion)

Power Description

Input Voltage: 5 V DC

Extended Details
