Datalogic M2200-00111-0604A Barcode Scanner Datalogic M2200-00111-0604A Barcode Scanner Datalogic M2200-00111-0604A Barcode Scanner Datalogic M2200-00111-0604A Barcode Scanner

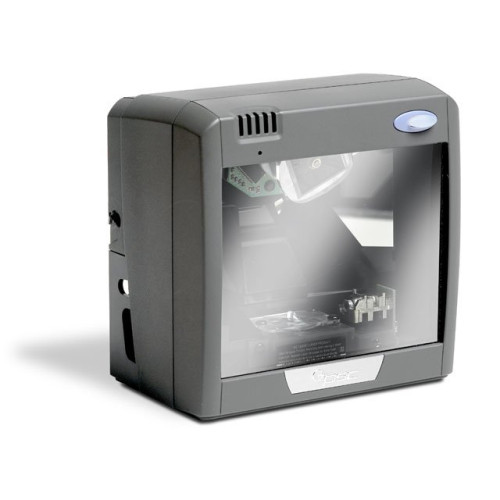

Datalogic M2200-00111-0604A Barcode Scanner
Part #: M2200-00111-0604A | SKU: DAT48221

The Magellan 2200VS vertical scanner from Datalogic was designed specifically to optimize performance for medium to high throughput applications in grocery, drug, variety, and convenience stores. Unlike competitive vertical scanners, the Magellan 2200VS offers category leading scanning performance, unique value added software features like Productivity Index Reporting, and our advanced FirstStrike decoding software. And because it's based on the Magellan platform, it does so much more.

Datalogic M2200-00111-0604A Barcode Scanner

Part Details: Magellan 2200VS Vertical Scanner (US Power Supply and USB Cable #8-0732-04)
Need a different version of the Datalogic Magellan 2200VS Barcode Scanner? View all 25 configurations

Additional Information

Manufacturer Datalogic
Model Name Magellan 2200VS
Scanner Capability 1D
Datalogic Magellan 2200VS Specs Datalogic Magellan 2200VS Specs (pdf)

Technical Information

  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC Versions A&E
    • UPC Supplementals (Bookland & Coupon Code)
    • UPC Add-on C128
    • UPC Add-on sub 2 or P2
    • UPC Add-on sub 5 or P5
    • RSS-14
    • RSS-Expanded
    • RSS-Stacked
    • EAN-8
    • EAN-13
    • JAN-8
    • JAN-13
    • EAN/JAN Two Label
    • UCC/EAN 128
    • Code 39 Full ASCII
    • Code 128
    • Code 93
    • Interleaved 2 of 5
    • Standard 2 of 5
    • Italian Pharmacode
    • Codabar (NW7)
    • MSI/PLESSEY
    • RSS
    • UPC Versions A&E
    • UPC Supplementals (Bookland & Coupon Code)
    • UPC Add-on C128
    • UPC Add-on sub 2 or P2
    • UPC Add-on sub 5 or P5
    • RSS-14
    • RSS-Expanded
    • RSS-Stacked
    • EAN-8
    • EAN-13
    • JAN-8
    • JAN-13
    • EAN/JAN Two Label
    • UCC/EAN 128
    • Code 39 Full ASCII
    • Code 128
    • Code 93
    • Interleaved 2 of 5
    • Standard 2 of 5
    • Italian Pharmacode
    • Codabar (NW7)
    • MSI/PLESSEY
    • RSS
  • Depth of Field: 8"@

General Information

  • Product Type: Desktop Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: 2200VS
  • Product Name: Magellan 2200VS Barcode Reader
  • Product Line: Magellan

Physical Characteristics

  • Height: 6"
  • Width: 6"
  • Depth: 3.8"
  • Weight (Approximate): 2.50 lb

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Magellan 2200VS Barcode Reader
    • 15 ft USB Type A Cable
    • European Power Supply
    • Magellan 2200VS Barcode Reader
    • 15 ft USB Type A Cable
    • European Power Supply
  • Certifications & Standards:
    • Electrical:
    • EN60 950(TÜVEurope)
    • PSE-Mark(Japan)
    • UL60950(USA)
    • CSA 60950(Canada)
    • Emissions:
    • CISPR22-B(World)
    • FCC part 15 Class B(USA)
    • VCCI-B(Japan)
    • EN 55022-B(Europe)
    • NOM(Mexico)
    • Laser Safety:
    • CDRH Class IIa(USA/Canada)
    • EN 60825-1 Class 1(Europe)
    • IEC 60825-1 Class 1 (World)
    • IEC 60825 Class 1(Europe)
    • Restriction of Hazardous Substances:
    • EU RoHS
  • Additional Information:
    • Supported Interfaces:
    • SerialIBM 46XXUSBKeyboard Wedge

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Warranty

  • Limited Warranty: 1 Year
Extended Details
