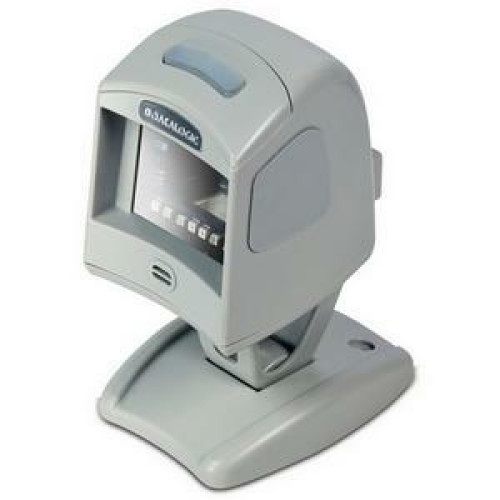

Datalogic MG10-3010-102-106R Barcode Scanner
Part #: MG10-3010-102-106R | SKU: DAT28041

The Magellan 1000i is designed for small-counter retail environments incorporates several new design wins for the user. Our design objectives were simple: improve checkout productivity while protecting the customer's investment by adding capabilities that would extend the typical life of the scanner. We developed a new bar code scanner that is faster at capturing of hard-to-read labels, has outstanding ergonomics especially when handheld use is required, and has an excellent price to value ratio. The Magellan 1000i will also be very effective at protecting the user's investment by potentially extending the useful life of the scanner. Datalogic's new imaging technology has no moving parts providing excellent reliability and durability. This new technology also has a significant software component that will make adding new features and enhancements much easier. Features such as RFID coupling and new code symbologies can be enabled via software changes. And, like the entire Magellan family, the Magellan 1000i has multi-interface support built into each scanner that allows a new interface with a simple program parameter change and a cable switch.

Datalogic MG10-3010-102-106R Barcode Scanner

Part Details: Magellan 1000i Omni-Directional Imaging Scanner (EZ Kit, with Target RS232, Power Supply, Stand and Cable) - Color: Grey

Need a different version of the Datalogic Magellan 1000i Barcode Scanner? View all 22 configurations

Additional Information

Manufacturer	Datalogic
Model Name	Magellan 1000i
Scanner Capability	1D

Datalogic Magellan 1000i Specs (pdf)

Technical Information

Connectivity Technology: Cable
Light Source: Laser
Barcode Symbology Supported:
- Retail Codes:
- UPC Versions A&E
- UPC Supplementals (Bookland & Coupon Code)
- UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
- Dual Barcodes for Japan (2 label read)
- Reduced Space Symbology (RSS) RSS-14, RSS expanded, and RSS Stacked Omni-directional)
- EAN 8 & 13 with full expansion 8 to 13
- JAN 8 & 13 with full expansion 8 to 13
- EAN/JAN two label
- UCC/EAN 128
- Italian Pharmacode
- Supports GTIN
- Industrial Codes:
- Code 39 (with full ASCII)
- Code 128 (Up to 80 characters, including Code 39 conversions)
- Code 93
- Interleaved 2 of 5
- Standard 2 of 5
- Codabar
- MSI/Plessey
- Retail Codes:
- UPC Versions A&E
- UPC Supplementals (Bookland & Coupon Code)
- UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
- Dual Barcodes for Japan (2 label read)
- Reduced Space Symbology (RSS) RSS-14, RSS expanded, and RSS Stacked Omni-directional)
- EAN 8 & 13 with full expansion 8 to 13
- JAN 8 & 13 with full expansion 8 to 13
- EAN/JAN two label
- UCC/EAN 128
- Italian Pharmacode
- Supports GTIN
- Industrial Codes:
- Code 39 (with full ASCII)
- Code 128 (Up to 80 characters, including Code 39 conversions)
- Code 93
- Interleaved 2 of 5
- Standard 2 of 5
- Codabar
- MSI/Plessey
Maximum Scan Resolution: 5 mil

General Information

Product Type: Desktop Barcode Scanner
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Model: 1000i
Product Name: Magellan 1000i Barcode Reader
Product Line: Magellan

Physical Characteristics

Height: 3.3"
Width: 2.8"
Depth: 3.7"
Color: Gray
Weight (Approximate): 7 oz

Interfaces/Ports

Host Interface: Multi-interface

Warranty

Limited Warranty: 2 Year

Other

Additional Information: 12 ft RS-232 Cable

Extended Details

Recommended Accessories for Model: Datalogic MG10-3010-102-106R Barcode Scanner

Datalogic 11-0114 Accessory
Part #: 11-0114 | SKU: DAT20274

3" riser stand w/tilt adjustment & fixed mounting holes,black
Datalogic 8-0736-02 Accessory
Part #: 8-0736-02 | SKU: DAT26892

8' coiled DB25 RS232 cable. Requires external power supply, not included.
Datalogic 8-0429-02 Accessory
Part #: 8-0429-02 | SKU: DAT20280

Datalogic Coiled POT Cable - 12ft
Datalogic 8-0423-02 Accessory
Part #: 8-0423-02 | SKU: DAT20281

Datalogic RS-232 Cable - Female - 12ft
