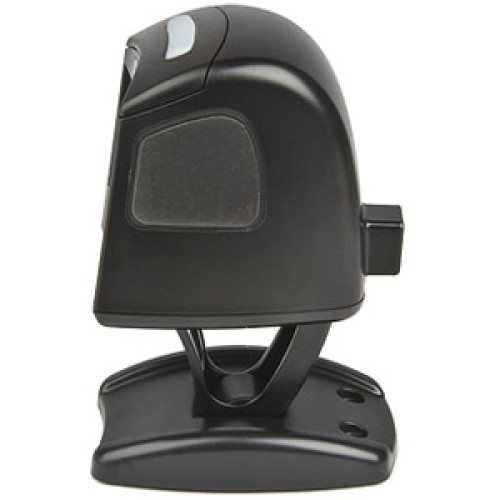

Datalogic MG112010-101-106 Barcode Scanner
Part #: MG112010-101-106 | SKU: DAT81296

The Datalogic Magellan 1100i reader's compact size makes it the ideal solution for space-constrained environments. With a precise reading area, the Magellan 1100i is perfect for hands-free or handheld scanning and helps reduce accidental misreads of items caused by stray laser scan lines - improving productivity and customer satisfaction. A wide variety of connectivity options, a comprehensive multi-interface set and a powerful label-editing feature allow easy integration into existing or new host systems. Magellan Value Added Features such as Diagnostics Reporting, Host Download, plus optional Productivity Index Reporting allow management to use data from the Magellan 1100i scanner to improve throughput and manage maintenance. In addition, each scanner supports Remote Management Systems to streamline operations and ongoing support across an enterprise.

Datalogic MG112010-101-106 Barcode Scanner

Part Details: RS-232 Kit, Button w/Targeting Green Spot, 1D only, Riser Stand, Power Supply (US), RS-232 DB9 2 m Cable, Black (Kit includes Scanner, Stand, Power Supply and Cable.)

Additional Information

Connection RS-232 Serial
Form Factor Presentation
Manufacturer Datalogic
Model Name Magellan 1100i

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • 2D Codes:
    • Aztec Code
    • Data Matrix
    • MaxiCode
    • QR Code
    • Stacked Codes:
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MicroPDF417
    • PDF417
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • 2D Codes:
    • Aztec Code
    • Data Matrix
    • MaxiCode
    • QR Code
    • Stacked Codes:
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MicroPDF417
    • PDF417
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 0.50" - 1.80"@5 mil
    • 0.25" - 2.25"@7.50 mil
    • 0 mil - 5"@10 mil
    • 0 mil - 7"@13 mil
    • 0 mil - 7"@20 mil

General Information

  • Product Type: Desktop Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: 1100i
  • Product Name: Magellan 1100i Barcode Reader
  • Product Line: Magellan

Physical Characteristics

  • Height: 2.3"
  • Width: 2.8"
  • Depth: 3.9"
  • Color: Black
  • Weight (Approximate): 7 oz

Interfaces/Ports

  • Host Interface: Serial

Warranty

  • Limited Warranty: 2 Year
Extended Details

Recommended Accessories for Model: Datalogic MG112010-101-106 Barcode Scanner

  • Datalogic 11-0387 Power Device
    Part #: 11-0387 | SKU: DAT81302

    Power Supply Kit - 5 Volt DC - AC/DC - Brick with NA Adapter
    MSRP: $43.00 Price: $37.55
  • Datalogic 11-0160 Accessory
    Part #: 11-0160 | SKU: DAT27953

    DLS, 9" FLEX GOOSENECK STND, FOR MAGELLAN 1000I, GREY
  • Datalogic 11-0114 Accessory
    Part #: 11-0114 | SKU: DAT20274

    3" riser stand w/tilt adjustment & fixed mounting holes,black
  • Datalogic 11-0143 Accessory
    Part #: 11-0143 | SKU: DAT27951

    DLS, 9" FLEX GOOSENECK STND, FOR MAGELLAN 1000I, BLACK
  • Datalogic 11-0115 Accessory
    Part #: 11-0115 | SKU: DAT20275

    3" riser stand w/tilt adjustment & fixed mounting holes, gray

Recommended Warranties for Model: Datalogic MG112010-101-106 Barcode Scanner

  • Datalogic Q-1100I-5 Service Contract
    Part #: Q-1100I-5 | SKU: DAT111046

    Datalogic Ease of Care Quick Replacement Comprehensive - 5 Year Extended Service - Service - Next Business Day - Maintenance - Physical Service
