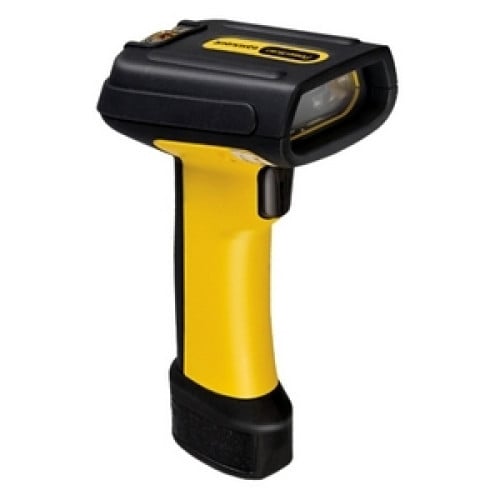

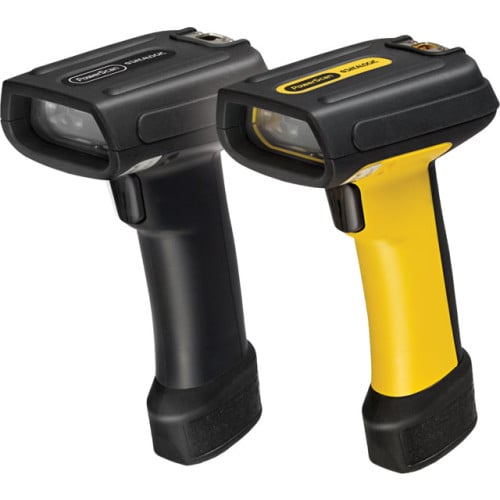

Datalogic PD7130-YB Barcode Scanner
Part #: PD7130-YB | SKU: DAT54077

The Datalogic PowerScan PD7100 is a rugged industrial linear imager that offers the highest standards of reliability, robustness and performance plus exceptional value. The unit is 2-meter drop-tested to concrete, IP65 rated against water and dust, and capable of operating in the most extreme temperature conditions. Three year standard warranty ensures low total cost of ownership. The PowerScan PD7100 features advanced code stitching capabilities, making it easier to read poorly printed and damaged codes the first time. The PowerScan PD7100 is available with two multi-interfaces, depending on application requirements: industrial applications and harsh environments: RS-232, Wedge, Wand Emulation and USB and for POS checkouts: RS-232, IBM 46xx and USB.

Datalogic PD7130-YB Barcode Scanner

Part Details: SCANNER ONLY - 1D linear imager - Standard - Multi-interface - No pointer - Yellow/Black - Requires interface cable

Additional Information

Color Yellow
Connectivity Corded
Form Factor Handheld
Included Cables Scanner Only - No Cable
Manufacturer Datalogic
Model Name PowerScan PD7100
Ruggedness Rugged
Scanner Type CCD

Technical Information

  • Barcode Dimension: 1D
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
  • Depth of Field:
    • 0.59" - 5.51"@5 mil
    • 0 mil - 17.32"@7.50 mil
    • 0 mil - 23.62"@10 mil
    • 0 mil - 31.50"@13 mil
    • 0 mil - 46.85"@20 mil
    • 0.79" - 94.49"@40 mil
    • 1.97" - 118.11"@55 mil - Reflective
    • 5.12" - 17.39 ft@100 mil - Reflective

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: PD7100
  • Product Name: PowerScan PD7130 Barcode Reader
  • Product Line: PowerScan

Physical Characteristics

  • Height: 20.3"
  • Width: 11.4"
  • Depth: 7.6"
  • Color:
    • Yellow
    • Black
  • Weight (Approximate): 9.90 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Additional Information: Supported Interface:
Extended Details

Recommended Accessories for Model: Datalogic PD7130-YB Barcode Scanner

  • Datalogic 7-0404 Accessory
    Part #: 7-0404 | SKU: DAT3192

    Take Up Reel - Datalogic Powerscan - Industrial
    MSRP: $104.00 Price: $90.82
  • Datalogic 11-0140 Accessory
    Part #: 11-0140 | SKU: DAT36957

    Heated Holder - 48VDC - ROHS - for the PowerScan (not for use with PBT8300-D/-DK models)
    MSRP: $592.00 Price: $516.99
  • Datalogic 11-0139 Accessory
    Part #: 11-0139 | SKU: DAT36956

    Heated Holder - 24VDC - ROHS - for the PowerScan (not for use with PBT8300-D/-DK models)
  • Datalogic 11-0138 Accessory
    Part #: 11-0138 | SKU: DAT48360

    Heater Holder (36 Volt, ROHS) Works with PowerScan/5300. (not for use with PBT8300-D/-DK models)
  • Datalogic 11-0111 Accessory
    Part #: 11-0111 | SKU: DAT26018

    Universal mounting kit for PowerScan PD7100 series
