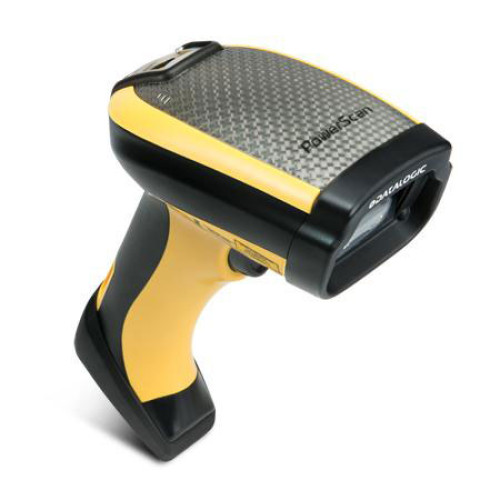

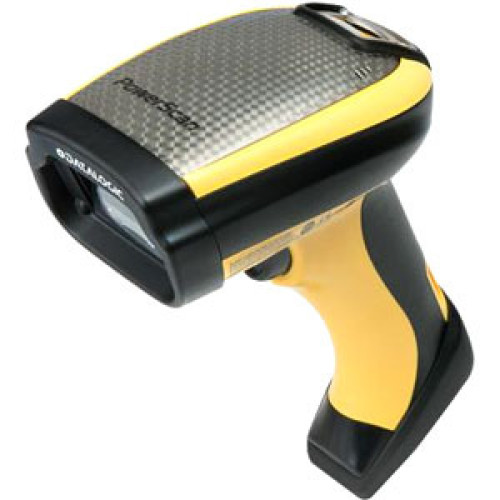

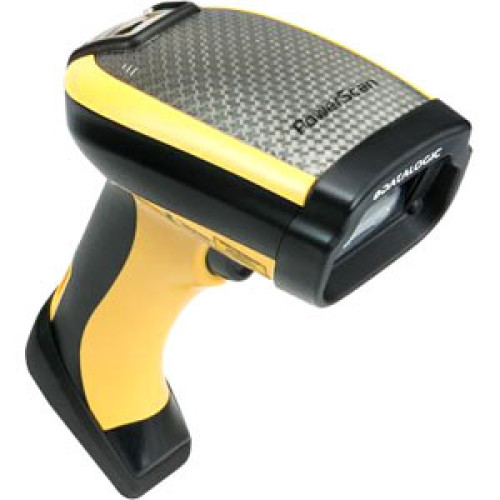

Datalogic PD9530-DPM Barcode Scanner
Part #: PD9530-DPM | SKU: DAT221984

Warehouses, logistic centers and manufacturing plants depend on speed and reliability when managing goods and tracking merchandise in order to improve efficiency while reducing costs. Datalogic’s PowerScan PD9500 area imager, the latest generation of rugged 2D area imagers, is the perfect answer for these applications.

Datalogic PD9530-DPM Barcode Scanner

Part Details: Datalogic PowerScan PD9530-DPM Handheld Barcode Scanner - Cable Connectivity - 1D, 2D - Imager - Omni-directional - Serial, USB, Keyboard Wedge - Yellow, Black
Need a different version of the Datalogic PowerScan PD9530-DPM Barcode Scanner? View all 3 configurations

Additional Information

Connectivity Corded
Form Factor Handheld
Included Cables Scanner Only - No Cable
Manufacturer AIDC DataLogic
Model Name PowerScan PD9530-DPM
Scanner Capability 2D
Scanner Type Imager
DataLogic PowerScan PD9530-DPM Specs DataLogic PowerScan PD9530-DPM Specs (pdf)

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
    • 2D Codes:
    • Aztec Code
    • China Han Xin Code
    • Data Matrix
    • MaxiCode
    • Micro QR Code
    • QR Code
    • Postal Codes:
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked GS1
    • DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
    • 2D Codes:
    • Aztec Code
    • China Han Xin Code
    • Data Matrix
    • MaxiCode
    • Micro QR Code
    • QR Code
    • Postal Codes:
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked GS1
    • DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites
  • Maximum Scan Resolution: 4 mil
  • Depth of Field:
    • 1.10" - 2.40"@2 mil
    • 0.90" - 3"@2.50 mil
    • 0.40" - 3.50"@5 mil
    • 1" - 2"@4 mil - Data Matrix
    • 0.80" - 2.80"@5 mil - Data Matrix
    • 0.80" - 4.10"@10 mil - Data Matrix
    • 0.90" - 6.30"@13 mil - EAN13
    • 0.40" - 3.50"@5 mil - PDF
    • 0.40" - 4.90"@10 mil - PDF

General Information

  • Product Type: Handheld Barcode Scanner
  • Product Series: 9500
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: PD9530-DPM
  • Product Name: PowerScan PD9530-DPM Handheld Barcode Scanner
  • Product Line: PowerScan

Physical Characteristics

  • Height: 8.3"
  • Width: 2.9"
  • Depth: 4.3"
  • Color:
    • Yellow
    • Black
  • Weight (Approximate): 11.60 oz

Interfaces/Ports

  • Host Interface:
    • Serial
    • USB
    • Keyboard Wedge
Extended Details
