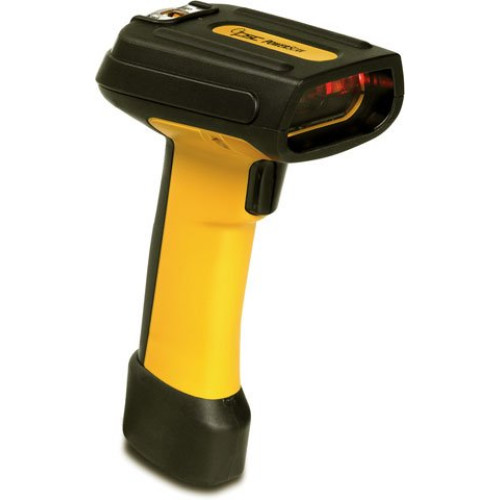

Datalogic PS72-1000-0100 Barcode Scanner
Part #: PS72-1000-0100 | SKU: DAT48347

The PowerScan 7000 Standard Range Linear Imaging Scanner (SRI) has been designed from the ground up to be the most rugged, durable and reliable industrial handheld scanner on the market. It is perfect for package handling and tracking, warehouse applications, shipping and receiving, manufacturing shop floor and other demanding applications. The overmold covers all of the likely drop contact points, adding an extra degree of shock protection for the scanner. In fact the scanner can withstand 50 drops of two meters (6.5') to concrete. The scanner is sealed to dust and water at an industry leading IP65 rating. It can operate between -30� C and 50� C. These specifications are not surpassed by any competitive scanner.

Datalogic PS72-1000-0100 Barcode Scanner

Part Details: PowerScan 7000 SRI Industrial Strength Imaging Scanner (2D, Standard Range, RS232 and No Accessories) - Color: Yellow/Black

Need a different version of the Datalogic PowerScan 7000 Barcode Scanner? View all 14 configurations

Additional Information

Manufacturer	Datalogic
Model Name	PowerScan 7000
Scanner Capability	1D
Scanner Type	Imager

Datalogic PowerScan 7000 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Barcode Dimension: 1D/2D
Symbologies Supported:
- Code 11
- Code 128
- UPC/EAN/JAN
- RSS
- Code 39
- Codabar
- Interleaved 2 of 5
- Code 93
- Code 2 of 5
- PDF 417
- MaxiCode
- Aztec Mesas
- Aztec
- Micro PDF
- DataMatrix
- EAN-UCC Composite
- Code 49
- QR Code
- Postnet
- Canadian Post
- British Post
- China Post
- Japanese Post
- Kix
- Planet Code
- OCR-A
- OCR-B
- China Postal Code
Scanner Type: LED
Interface Options: RS-232
Interface Connectivity: Corded
Scan Pattern: Linear
Input Voltage Range: 4 to 14 V DC
Depth of Field:
- 2.5 - 6.6"@8mils - Linear
- 1.5 - 11.5"@13mils - UPC
- 3.5 - 5.3"@6.6mils - PDF417
- 2.7 - 5.5"@15mils - Data Matrix
- 1.0 - 12.0"@35mils - Maxi Code

General Information

Manufacturer:
- PSC Inc.
- Datalogic S.p.A
Product Line: PowerScan
Product Name: PowerScan 7000 Barcode Scanner

Physical Characteristics

Weight: 9.6 oz - without cable
Color:
- Yellow
- Black

Agency Approvals

Agency Approvals:
- Vibration: Meets MIL-STD-810E
- Water & Dust: IEC529 Rating IP54DW
- TÃ

Extended Details

Recommended Accessories for Model: Datalogic PS72-1000-0100 Barcode Scanner

Datalogic 8-0736-03 Accessory
Part #: 8-0736-03 | SKU: DAT23214

Cable - RS-232 - DB9 Serial - Coiled Assembly Cable - 8 ft - Black

MSRP: $46.00 Price: $36.88
Datalogic 8-0736-80 Accessory
Part #: 8-0736-80 | SKU: DAT21865

Cable - Datalogic PowerScan 2D - RS-232 - Coiled - External Power - 9D Serial - 12 ft

MSRP: $32.00 Price: $24.61
Datalogic 4004-0798 Accessory
Part #: 4004-0798 | SKU: DAT27964

Power Supply (Wall Mount) for the PowerScan
Datalogic 11-0139 Accessory
Part #: 11-0139 | SKU: DAT36956

Heated Holder - 24VDC - ROHS - for the PowerScan (not for use with PBT8300-D/-DK models)
Datalogic 8-0736-02 Accessory
Part #: 8-0736-02 | SKU: DAT26892

8' coiled DB25 RS232 cable. Requires external power supply, not included.
