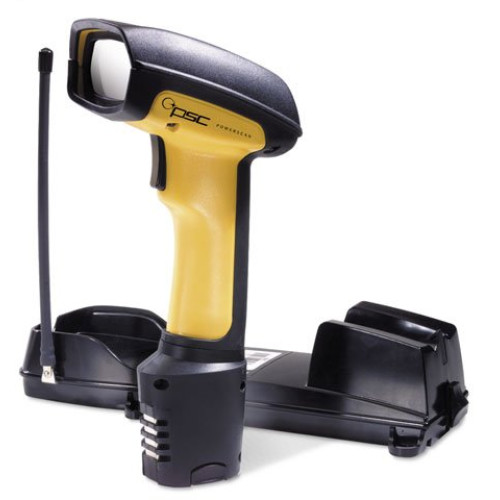

Datalogic PSRF-1000-01 Barcode Scanner
Part #: PSRF-1000-01 | SKU: DAT15904

Are restrictive interface cables keeping you from doing business the way you want? Are you restricted to scanning only in the 25.0' (7.62m) area around your host terminal? Well not anymore! With the PSC PowerScan RF wireless scanner you now have the freedom to go where the work is not the other way around. Now you only have to take the 27.5 oz. (0.8 kg) PowerScan RF scanner to the 500 lb. (227 kg) pallet; not the pallet to the scanner. Utilizing the latest in Radio Frequency (RF) technology the PowerScan RF has a range of up to 150.0' (45.7 m). This allows you the freedom to scan pallets at the other end of the loading dock or boxes at the end of a warehouse aisle up to 150.0 (45.7 m) from your fork truck. Its unique acknowledgment tone lets you know that your data transmission was successful.

Datalogic PSRF-1000-01 Barcode Scanner

Part Details: PowerScan RF Industrial Handheld Bar Code Scanner (PowerScan SR, Keyboard Wedge Interface, Base Station, Battery, Cable and Power Supply)

Need a different version of the Datalogic PowerScan RF Barcode Scanner? View all 6 configurations

Additional Information

Manufacturer	Datalogic
Model Name	PowerScan RF
Scanner Capability	1D

Datalogic PowerScan RF Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Barcode Dimension: 1D
Resolution: 5 mil(s)
Symbologies Supported:
- Pharmacode 39
- UPC/EAN/JAN
- Code 39
- Standard 2 of 5
- Code 93
- Code 39 Full ASCII
- Codabar
- Code 128
- UPC
- Interleaved 2 of 5
- MSI/PLESSEY
Scanner Type: Laser
Scan Rate: 37 scan / sec
Interface Options: Keyboard Wedge
Interface Connectivity: Cordless
Cordless Range: 46m
Input Voltage Range: 7.5 to 14 V DC
Depth of Field:
- 3.0 - 6.0"@5mils - Standard Range (Decoded, Code 39)
- 2.0 - 10.0"@7.5mils
- 1.0 - 16.0"@10mils
- 0.5 - 27.0"@15mils
- 0.5 - 36.0"@20mils
- 5.0 - 48.0"@40mils
- 6.0 - 60.0"@55mils
- 1.25 - 2.0"@2.5mils - High Density (Decoded, Code 39)
- 1.0 - 2.25"@3mils
- 1.0 - 3.0"@4mils
- 0.7 - 4.0"@5mils
- 8 - 13"@7.5mils - Long Range (Decoded, Code 39)
- 9 - 7.0"@40mils
- 15 - 9.0"@55mils
- 3.3 - 5.0"@15mils - Extra Long Range (Decoded, Code 39)
- 2.3 - 12.0"@40mils
- 3.3 - 15.0"@55mils

General Information

Manufacturer: Datalogic S.p.A
Product Line: PowerScan
Product Name: PowerScan RF 1000 Barcode Scanner

Physical Characteristics

Weight:
- 12.7 oz - Scanner
- 16 oz - Base Station
Color:
- Yellow
- Black

Agency Approvals

Agency Approvals:
- Complies to: TÜV
- UL
- cUL
- Complies to: FCC A
- EN 55022 B
- BCIQ CNS13438
- AS/NZS 3548
- CDRH Class II
- XLR model is Class IIIA. (CAUTION: Laser Radiation do not stare into beam)
- IEC 60825 Class 2
- Model with 433MHz radio complies to EU RoHS

Other

Package Contents:
- PowerScan RF 1000 Barcode Scanner
- Base
- Power Supply
- Battery
- Cable

Environmental Conditions

Temperature:
- -10°C (14°F) to 50°C (122°F) Operating
- -20°C (-4°F) to 60°C (140°F) Storage
Humidity: 5 to 95% Non-condensing

Warranty

Manufacturer Warranty: 3 Year(s)
