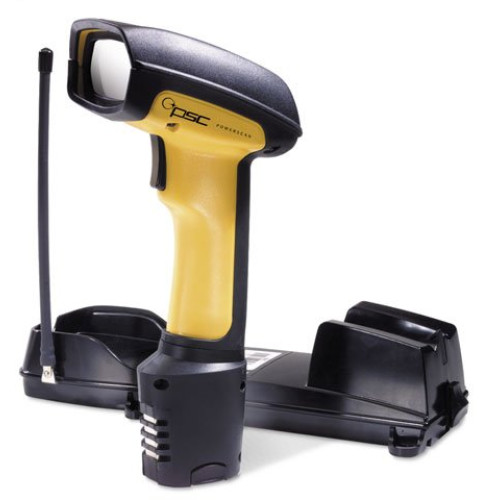

Datalogic PSRF-1300 Barcode Scanner
Part #: PSRF-1300 | SKU: DAT15906

Are restrictive interface cables keeping you from doing business the way you want? Are you restricted to scanning only in the 25.0' (7.62m) area around your host terminal? Well not anymore! With the PSC PowerScan RF wireless scanner you now have the freedom to go where the work is not the other way around. Now you only have to take the 27.5 oz. (0.8 kg) PowerScan RF scanner to the 500 lb. (227 kg) pallet; not the pallet to the scanner. Utilizing the latest in Radio Frequency (RF) technology the PowerScan RF has a range of up to 150.0' (45.7 m). This allows you the freedom to scan pallets at the other end of the loading dock or boxes at the end of a warehouse aisle up to 150.0 (45.7 m) from your fork truck. Its unique acknowledgment tone lets you know that your data transmission was successful.

Datalogic PSRF-1300 Barcode Scanner

Part Details: PowerScan RF Industrial Handheld Bar Code Scanner (Extra Long Range, RS232, Keyboard Wedge, 915 Mhz with Battery - Requires Base)

Need a different version of the Datalogic PowerScan RF Barcode Scanner? View all 6 configurations

Additional Information

Manufacturer	Datalogic
Model Name	PowerScan RF
Scanner Capability	1D

Datalogic PowerScan RF Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Symbologies Supported:
- UPC
- EAN
- Code 39
- Codabar
- Pharmacode 39
- Code 39 Full ASCII
- Code 128
- EAN-128
- Code 93
- Interleaved 2 of 5
- Standard 2 of 5
- MSI/PLESSEY
- JAN
Scanner Type: Laser
Scan Rate: 37 Scans/sec
Interface Options:
- RS-232
- Keyboard Wedge
Interface Connectivity: Cordless
Cordless Range: 46m
Input Voltage: 110 V AC
Depth of Field:
- 3.3 - 5.0@15mils - Code 39
- 2.3 - 6.0@20mils - Code 39
- 2.3 - 12.0@40mils - Code 39
- 3.3 - 15.0@55mils - Code 39
- 3.3 - 15@40mils - Reflective Labels Code 39
- 6.7 - 25@70mils - Reflective Labels Code 39
- 6.7 - 36@100mils - Reflective Labels Code 39

General Information

Manufacturer:
- PSC Inc.
- Datalogic S.p.A
Product Line: PowerScan
Product Name: PowerScan Extra Long Range RF Industrial Barcode Scanner

Physical Characteristics

Weight:
- 12.7 oz - Scanner
- 16 oz - Base Station

Agency Approvals

Agency Approvals:
- TUV
- UL
- cUL
- FCC-A
- EN 55022-B
- BCIQ CNS13438
- AS/NZS 3548
- CDRH Class 2
- IEC 60825 Class 2
- ETSI-ETS-300 220
- FCC Part 15.249

Environmental Conditions

Temperature:
- -10Â°C (14Â°F) to 50Â°C (122Â°F) Operating
- -20Â°C (-4Â°F) to 60Â°C (140Â°F) Storage
Humidity: 5 to 95% Non-condensing

Other

Package Contents:
- PowerScan Extra Long Range RF Industrial Barcode Scanner
- Battery

Warranty

Manufacturer Warranty: 3 Year(s)
