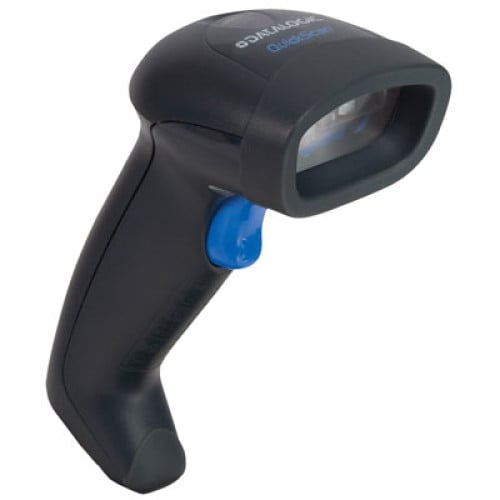

Datalogic QuickScan L: QD2300 Barcode Scanner
Part #: QD2330-BK | SKU: DAT37986

Used in retail and office application environments, the Datalogic QuickScan L: QD2300 reader provides a snappy scanning performance and is capable of reading a wide range of barcodes including the majority of 1D and GS1 DataBarcodes (previously known as RSS). The QuickScan L: QD2300 reader has been designed with durability in mind. It meets the IP42 sealing rating (against dust and liquid spills) and has a 5 ft / 1.5 m drop specification. This scanner also has a greater than 1 million duty cycle trigger specification as well as sustainable 20 kV of Electro Static Discharge (ESD). These are the best class specifications of any product on the market.

Datalogic QuickScan L: QD2300 Barcode Scanner

Part Details: Color: Black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 90A052044), PS/2 (Part# 90A051360), or RS-232 Serial cables (Part# 90G001070) and a Power supply (Part# 4004-0837).

Additional Information

Manufacturer Datalogic
Model Name QuickScan L: QD2300
Product Condition New

Technical Information

  • Barcode Dimension: 1D
  • Scan Rate: 100 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • Interleaved 2 of 5
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Discrete 2 of 5
    • UPC/EAN with supplementals
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar
    • Code MSI
    • Code 11
    • IATA
    • GS1 Databar
    • Chinese 2 of 5
    • Interleaved 2 of 5
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Discrete 2 of 5
    • UPC/EAN with supplementals
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar
    • Code MSI
    • Code 11
    • IATA
    • GS1 Databar
    • Chinese 2 of 5
  • Maximum Scan Resolution: 5 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Product Series: L
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Name: QuickScan L Barcode Reader
  • Product Line: QuickScan

Physical Characteristics

  • Color: Black
  • Weight (Approximate): 4.52 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • RoHS Compliant
    • Water and Dust Resistance IP42
    • Electrical:
    • UL60950 (USA)
    • CAN/CSA-22.2 No 60950 (Canada)
    • EN60960 (TUV Europe)
    • Emissions:
    • FCC part 15 ,Class B (USA)
    • EN 55022-B (Europe)
    • AS/NZS CISPR 22-B (Australia/New Zealand)
    • VCCI-B (Japan)
    • CNS 13438-B (Taiwan)
    • ICES-003 - B (Canada)
    • Laser Safety:
    • Class 2 Laser Product
    • 21 CFR 1040.10 and 1040.11
    • IEC/EN60825-1:2007
  • Additional Information:
    • Supported Interfaces:
    • SerialKeyboard WedgeUSB

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 5 V DC
Extended Details
