Datalogic QD2430-WH Barcode Scanner Datalogic QD2430-WH Barcode Scanner Datalogic QD2430-WH Barcode Scanner Datalogic QD2430-WH Barcode Scanner Datalogic QD2430-WH Barcode Scanner

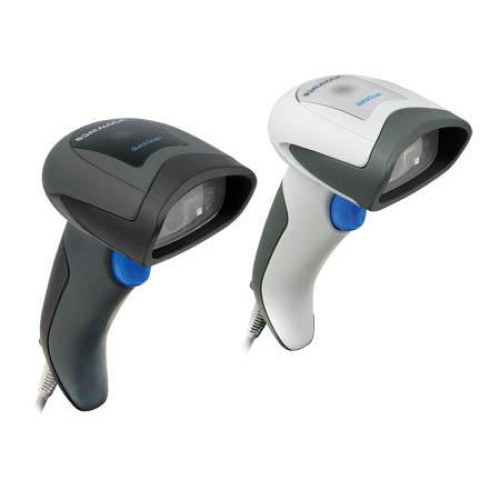

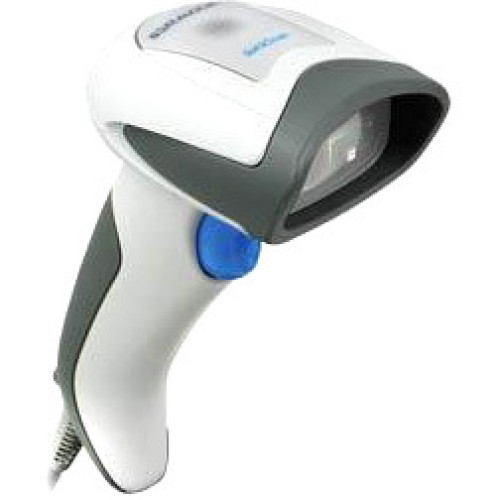

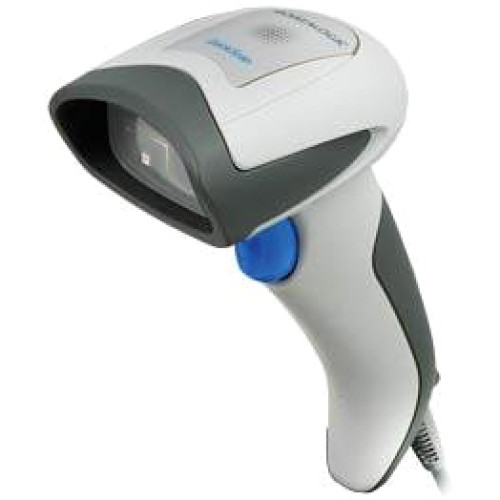

Datalogic QD2430-WH Barcode Scanner
Part #: QD2430-WH | SKU: DAT222913

Ideally suited for applications at the point-of-sale (POS), the QuickScan QD2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during the daily scanning activities.

Datalogic QD2430-WH Barcode Scanner

Part Details: Corded Barcode Scanner - Datalogic QuickScan QD2430 - 2D Imager - General Purpose - Handheld - Multi-Interface Connection - SCANNER ONLY - White
Need a different version of the Datalogic QuickScan QD2400 Barcode Scanner? View all 11 configurations
MSRP: $369.00 Price: $175.82

Additional Information

Color White
Connectivity Corded
Form Factor Handheld
Included Cables Scanner Only - No Cable
Manufacturer Datalogic
Model Name QuickScan QD2400
Scanner Capability 1D, 2D
Scanner Type CCD, Imager
Datalogic QuickScan QD2400 Specs Datalogic QuickScan QD2400 Specs (pdf)

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes.
    • 2D Codes:
    • Aztec Code
    • Aztec Mesas
    • Data Matrix
    • MaxiCode
    • QR Code
    • Micro QR Code
    • China Han Xin Code
    • Postal Codes:
    • Australian Post
    • British Post
    • Canadian Post
    • China Post
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes.
    • 2D Codes:
    • Aztec Code
    • Aztec Mesas
    • Data Matrix
    • MaxiCode
    • QR Code
    • Micro QR Code
    • China Han Xin Code
    • Postal Codes:
    • Australian Post
    • British Post
    • Canadian Post
    • China Post
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites
  • Maximum Scan Resolution: 4 mil
  • Depth of Field:
    • 0.20" - 5.90"@5 mil - Code 39
    • 0.20" - 13.80"@13 mil - EAN/UPCA
    • 0.40" - 5.10"@6.60 mil - PDF417
    • 0.40" - 5.10"@10 mil - Data Matrix

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: QD2430
  • Product Name: QuickScan QD2430 Handheld Barcode Scanner
  • Product Line: QuickScan

Physical Characteristics

  • Height: 6.4"
  • Width: 1.6"
  • Depth: 3.6"
  • Color: White
  • Weight (Approximate): 5.11 oz

Interfaces/Ports

  • Host Interface:
    • Keyboard Wedge
    • Serial
    • USB
