Datalogic PowerScan Barcode Scanner Datalogic PowerScan Barcode Scanner

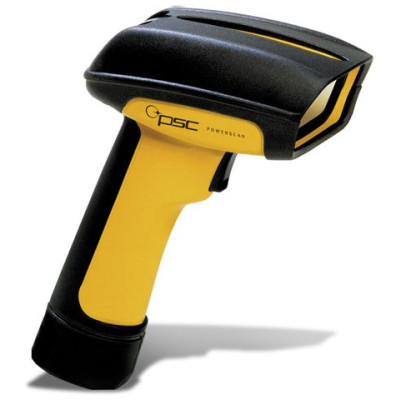

Datalogic PowerScan Barcode Scanner

Datalogic PowerScan Barcode Scanner

The PowerScan family of Handheld Laser Barcode scanners has been specifically designed "from the ground up" to meet the demands of industrial users. In this tough environment the right tool makes all the difference. With a Datalogic PowerScan Scanner on the job you'll have one of the toughest most reliable tools around. You can rely on the PowerScan Scanner for fast accurate barcode reading from up close to over 65" (165cm) away. Even labels previously thought to be unreadable can now be read using Datalogic's new superior decoding software QuadraLogic. The Scanner will auto-discriminate all standard barcode symbologies and automatically adjust to read a wide range of code densities. The PowerScan Scanner also has a broad range of communication options using unique multiple interface modules which allow for connection to most host computer systems. Our AutoSelect feature allows you to quickly move between different hosts and applications by simply changing cables. Finally PowerScan's low current draw combined with its low power mode make it ideal for use with battery operated terminals.
Starting at: MSRP: $1,349.00 Price: $727.65
See all options
Datalogic PowerScan Specs Datalogic PowerScan Specs (pdf)

PowerScan

PowerScan Ideal For:

  • Warehousing & Outdoor Use
  • Transportation & Logistics
  • Package Distribution
  • Electronic Assembly
  • Heavy-Duty Manufacturing

PowerScan Features:

  • QuadraLogic™ II decoding software for superior scanning performance
  • Multi-interface modules provide ultimate flexible connectivity
  • Integrated metal tether hook
  • Programmable scan angle, beeper tone, and volume
  • Field upgradable flash memory
  • Flexible mounting and storage accessories available

A Tough Tool For Your Toughest Jobs PowerScan: Setting a New Standard The PowerScan family of handheld laser bar code scanners has been specifically designed "from the ground up" to meet the demands of industrial users. In this tough environment, the right tool makes all the difference. With a PSC PowerScan on the job, you'll have one of the toughest, most reliable tools around.

You can rely on the PowerScan for fast, accurate bar code reading, from up close to over 60" / 152 cm away. Even labels previously thought to be unreadable can now be read using PSC's superior decoding software, QuadraLogic™ II. The scanner will autodiscriminate all standard bar code symbologies and automatically adjusts to read a wide range of code densities.

Dependable In The Harshest Conditions

Even in the most harsh working environments, you can depend on the PowerScan to keep on working. Designed to meet the most stringent drop specification in the industry, the scanner will withstand multiple 6.5' / 2 m drops to concrete. The PowerScan has a sealing rating of IP54 which means it can withstand intermittant rain showers and keep on working. PowerScan also operates over a wide temperature range from -22° F / -30° C to over 122° F / 50° C.

Built To Stand Up To Abuse

Handheld scanners often are dropped and abused, so this scanner has been designed with high impact-resistant material and incorporates protective rubber cushioning at every point of impact. The frictionless scan mechanism and all internal optical components are shock mounted to maintain precise alignment under high shock loads. The scan window is made of shatter-proof material and is diamond coated to resist scratching. Even the replaceable interface cable is protected with an integrated metal strain relief.

Innovative Host Connectivity

The PowerScan has a broad range of communication options using unique multi-interface modules, which allow for connection to most host computer systems. Our AutoSelectTM feature allows you to quickly move between different hosts and applications by simply changing cables. In addition PowerScan 's low current draw, combined with its low power mode, make it ideal for use with battery operated terminals.

PowerScan SR/HD Specifications

Mechanical

PowerScan Dimensions

  • 2.7 x 4.4 x 7.2" / 6.9 x 11.2 x 18.3 cm

Weight

  • Scanner: 9.9 oz. / 280 g without cable

Optical

Light source

  • 650nm Visible Laser Diode (VLD)

Scan system

  • Frictionless flexure mechanism

Rate

  • 37 scans/sec. nominal

Depth-of-Field Chart – (printing resolution, contrast and ambient light dependent)

Label Density - Paper Labels

Standard (Decoded) Range

High Density (Decoded) Range

2.5 mil

1.25" to 2.0" / 3.2 to 5.1 cm

3 mil

1.0" to 2.25" / 2.5 to 5.7 cm

4 mil

1.0" to 3.0" / 2.5 to 7.6 cm

5 mil

3.0" to 6.0" / 7.6 to 15.2 cm

0.7" to 4.0" / 1.8 to 10.2 cm

7.5 mil

2.0" to 10.0" / 5.1 to 25.4 cm

0.5" to 4.5" / 1.3 to 11.4 cm

10 mil

1.0" to 16.0" / 2.5 to 40.6 cm

0.5" to 5.0" / 1.3 to 12.7 cm

15 mil

0.5" to 27.0" / 1.3 to 68.6 cm

20 mil

0.5" to 36.0" / 1.3 to 91.4 cm

40 mil

5.0" to 48.0" / 12.7 to 122 cm

55 mil

6.0" to 60.0" / 15.2 to 152 cm

PowerScan Print contrast ratio

  • 25% minimum

Pitch

  • ±65°

Skew

  • ±55°

Ambient light immunity

  • Artificial light: 1,200 foot candles / 12,900 Lux
  • Sunlight: 8,000 foot candles / 86,100 Lux

Electrical

Operating voltage

  • 4 VDC to 14 VDC

Operating current – nominal

  • Undecoded: 80mA @ 5 VDC
  • Decoded: 95mA @ 5 VDC

Idling current – low power mode:

  • <50µA @ 5 VDC

Environmental

PowerScan Temperature rating

  • Operating: -22° to 122° F / -30° to 50° C
  • Storage: -40° to 158° F / -40° to 70° C

Humidity

  • 5 to 95% NC

Shock (at 23°C)

  • withstands multiple 6.5' / 2 m drops to concrete

Vibration

  • meets MIL-STD-810E

Water & Dust

  • IEC529 rating IP54DW

Decoding Capability (autodiscriminates between)

  • UPC A, E / EAN 8,13 / JAN 8, 13
  • (P2 / P5, Code 128 EAN add-ons)
  • Code 39
  • Codabar
  • Pharmacode 39
  • Code 39 Full ASCII
  • Code 128
  • Code 93
  • Interleaved 2 of 5
  • Standard 2 of 5
  • MSI / Plessey BC412 (upon request)

Communications

Undecoded: Standard and Intermec-compatible Multi-interface modules (interchangeable, AutoSelect™ cable determines active interface)

  • RS232C
  • Standard Keyboard Wedge
  • Wand Emulation
  • Universal Keyboard Wedge
  • RS232*
  • IBM 46XX / RS232C

*This RS232 interface only supports RXD and TXD, no control signals are available.

Safety & Regulatory

Electrical: Complies to

  • Gost R
  • TÜV
  • UL
  • cUL

Emissions: Complies to

  • FCC-A
  • EN 55022-B
  • BCIQ CNS13438
  • AS/NZS 3548
  • VCCI-B

PowerScan Laser classification

  • CDRH Class II; (CAUTION: Laser Radiation – do not stare into beam)
  • IEC 60825 Class 2
