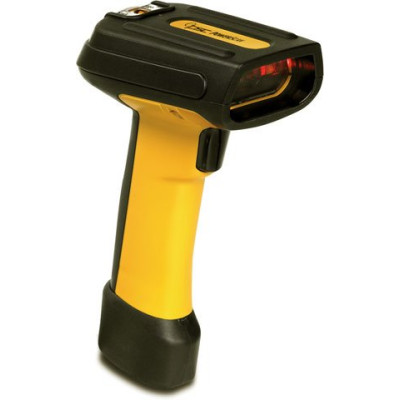

Datalogic PowerScan 7000 Barcode Scanner

The PowerScan 7000 Standard Range Linear Imaging Scanner (SRI) has been designed from the ground up to be the most rugged, durable and reliable industrial handheld scanner on the market. It is perfect for package handling and tracking, warehouse applications, shipping and receiving, manufacturing shop floor and other demanding applications. The overmold covers all of the likely drop contact points, adding an extra degree of shock protection for the scanner. In fact the scanner can withstand 50 drops of two meters (6.5') to concrete. The scanner is sealed to dust and water at an industry leading IP65 rating. It can operate between -30- C and 50- C. These specifications are not surpassed by any competitive scanner.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Datalogic PowerScan 7000 Specs (pdf)

PowerScan 7000 SRI Industrial Strength Imaging Scanner

Features

Solid state design makes the PowerScan 7000 the most rugged and reliable scanner on the market.
Lowest priced full performance industrial handheld scanner on the market
Best dust and water sealing (IP65) on the market
Industry leading standard range depth of field (DOF)
Full multi-interface capability
Industry Leading Four Year Warranty

Accessories

Universal Kit
Scan Stand
Take Up Reel
Holster/Fork Lift Mount
Power Hood

High Performance Scanning with Market Leading Ruggedness and Durability
The PowerScan 7000 Standard Range Linear Imaging Scanner (SRI) has been designed from the ground up to be the most rugged, durable and reliable industrial handheld scanner on the market. It is perfect for package handling and tracking, warehouse applications, shipping and receiving, manufacturing shop floor and other demanding applications.

The overmold covers all of the likely drop contact points, adding an extra degree of shock protection for the scanner. In fact the scanner can withstand 50 drops of two meters (6.5') to concrete. The scanner is sealed to dust and water at an industry leading IP65 rating. It can operate between -30° C and 50° C. These specifications are not surpassed by any competitive scanner.

The innovative and unique PSC optical design allows the scanner to feature a depth of field that is unsurpassed by any other standard range scanner, whether imager or laser. An optional integrated laser aiming beam is also available for applications that need more precise or brighter aiming cues. The high-speed digital hardware and advanced PSC decoding algorithms allow read rates up to 500 scans per second, making the PowerScan 7000 SRI the fastest industrial scanner available.

The scanner features a multiple interface architecture that allows connection to the majority of the host terminals on the market; including RS-232, USB, Keyboard Wedge, Wand Emulation and IBM POS interfaces. The scanner works with most of the same cables as the family of PowerScan laser and 2D imaging scanners.

PowerScan 7000 SRI Specifications

Mechanical

Dimensions

Height: 7.5" / 190 mm
Width: 3.0" / 75 mm
Length: 4.5" / 115 mm

Weight

11 oz / 312 g (without cable)

Beeper/Speaker

87 dBA for operator @ 50 cm (typical)

Environmental

Temperature Rating

Operating: -22° F to 122° F / -30 to 50° C
Storage: -40° to 140° F / -40 to 60° C

Humidity

5 to 95% NC

Shock

Withstands 50 drops from 6.5' / 2 m to concrete

Vibration

Meets MIL-STD-810E

Water & Particulate Sealing

IP65

Optical

Scanning Width

2" wide at 1" from scanner; 6" wide at 7" from scanner

Minimum Resolution

4 mil minimum element size

Skew (Yaw)

? 60°

Pitch

? 65°

Roll

? 40°

Ambient light capability

Up to 40,000 Lux

Depth of Field Range Comparisons

LABEL DENSITY	STANDARD RANGE
5 mil	3 to 6"/ 7.6 to 15.2 cm
7.5 mil	2 to 16" / 5.1 to 40.6 cm
10 mil	1.5 to 22"/ 3.8 to 55.9 cm
13 mil	1 to 30"/ 2.5 to 76.2 cm
20 mil	1 to 42"/ 2.5 to 106.7 cm
55 mil	2 to 80"/ 5.1 to 203.2 cm

Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, ambient light, temperature, and scan angle dependant.

Electrical

Input Voltage

+4 to 14 VDC

Input Power (typical)

Operating (scanning): 1.48 W
Standby (idling with no trigger): 0.96 W

Input Current (typical)

Operating (scanning): 295 mA @ 5 VDC
Standby (idling with no trigger): 190 mA @ 5 VDC
Sleep: 1 mA @ 5V

Decoding Capability (autodiscriminates among)

Codabar
Code 93
Code 128
Code 128 add-ons
Code 128 ISBT
EAN 128
Italian Pharmacode 39
P2 /P5 add-ons
MSI/Plessey
Interleaved 2 of 5
Standard 2 of 5
RSS-14
RSS Expanded
UPC/EAN/JAN
PDF-417

Host Communications

RS-232
Keyboard Wedge
USB
Wand Emulation
IBM
46XX
USB (IBM SurePos)

In addition to standard PC/AT/PS/2, the keyboard wedge interface supports the following:

Wyse 55, 60, 120, 150, etc.; IBM 347X/3487/31XX; Digital VT220, 240, 320, 420, 510, 520; Sun 420, ITX, and Sparc 5/10.

Safety & Regulatory

Electrical: Complies to:

GostR
UL
cUL
EN60950

Emissions: Complies to:

FCC
EN 55022
CISPR22
VCCI

Laser Classification

CDRH Class II, (Caution: Laser Radiation - do not stare into beam)
IEC 60825 Class 2
