Datalogic Topgun Handheld Computers

The Datalogic Topgun has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

Topgun is a cost-effective integrated laser scanning solution.

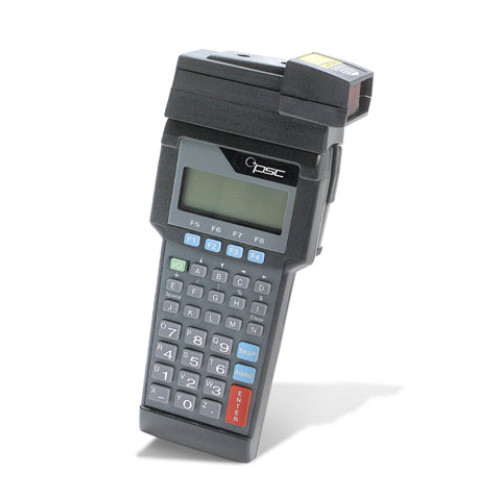

TopGun consists of a Datalogic PT 2000 Portable Data Collection Terminal integrated with a TopGun Laser Module. Weighing 16 ounces (including three AA batteries) TopGun is lightweight and easy to use. It operates like any other handheld laser -- just aim it and pull the trigger. TopGun comes fully programmed ready to scan. Using Datalogic Program Generator (PPG) a Microsoft Windows-Based application program generator you can create custom programs for TopGun in minutes! TopGun is a cost-effective laser scanning solution. It provides the convenience of one-handed portable scanning combined with the speed and accuracy of laser input. Add the PT Dock for data transfer and battery recharging and you have the answer to all your portable needs.
  • Batch portable data collector
  • Rotating scan head for left or right handed use
  • Features an integrated laser scanner
  • Full line of accessories
  • Includes terminal with scanner, upload software and cable
  • Easy to use, transfer data and program
  • 34 splash resistant keys with full alphanumeric capability
  • One of the most popular data terminals ever
  • 4 line x 16 character LCD
Topgun Options
Datalogic Topgun (42-011-TG)
Topgun, Portable Batch Terminal (2MB RAM and Integrated Laser)
Specs: 2 MB RAM - 128 KB Flash - LCD - 34 Keys - Alphanumeric Keyboard
Datalogic Topgun (42-010-TG)
Topgun, Portable Batch Terminal (1MB RAM and Integrated Laser)
Specs: Datalogic Falcon TopGun Portable Data Terminal
Datalogic Topgun (42-006-TG)
Topgun, Portable Batch Terminal (512KB RAM and Integrated Laser)
Specs: 16-bit CMOS 512KB RAM / 128KB Flash - Alphanumeric Keyboard - 4 Lines x 16 Characters - Proprietary - Laser Standard Range
Datalogic Topgun (42-002-TG)
Topgun, Portable Batch Terminal (256KB RAM and Integrated Laser)
Specs: 256 KB RAM - 128 KB Flash - LCD - 34 Keys - Alphanumeric Keyboard
Datalogic Topgun (42-000-TG)
Topgun, Portable Batch Terminal (128KB RAM, Integrated Laser and 00-884-28 Cable)
Specs: Datalogic Falcon TopGun Portable Data Terminal
Recommended Accessories
Datalogic (95ACC1198)
Scan module for PT 2000 - Turns PT 2000 into a TopGun
Ships in 3-5 Days
$569.30
+ Add to Quote

Datalogic Topgun Details

Topgun Features

  • Integrated laser scanner
  • 16-bit proprietary operating system
  • Memory expandable to 2MB
  • 4 x 16 LCD
  • Lightweight, compact design
  • Easy to upgrade
  • Easy-to-use Windows® based programming tool
  • Floating-point math
  • Wildcard field search and verification
  • All supported symbologies loaded
  • Larger applications supported (up to 64K)

Topgun Scanning barcodes on flat, curved, or irregular surfaces at distances from 2.5 to 36.0"/6.0 to 91.0 cm is easy with Topgun . Its rugged one-handed design gives you durability, reliable performance, and freedom of movement, even in the most demanding industrial work environments. Topgun consists of a PT2000® portable data collection terminal integrated with a Topgun laser module. Weighing 16 oz./480 g, including three AA batteries, Topgun is lightweight and easy to use. It operates like any other handheld laser – just aim it and pull the trigger.

Topgun 's balanced, ergonomic design quickly adapts for either right-or left-handed use. The unique modular construction of the Topgun laser module allows you to upgrade your existing PT2000® in seconds! LEDs located on the back of the scan head indicate laser activation and good reads. An audible tone also indicates scanning success.

Topgun is a cost-effective integrated laser scanning solution. It provides all the features of the PT2000® and the convenience of one-handed, portable scanning combined with the speed and accuracy of laser input. Add the PT Dock for data transfer and battery recharging and you have the answer to all your portable needs.

PT Dock Designed specifically for use with the PT2000® or Topgun , the PT Dock provides a connection between your PSC portable and your computer without sacrificing the convenience of portability.

The PT Dock allows you to transmit data to and from your host system, using serial or keyboard wedge communications. The PT Dock also recharges your NiCad battery pack and lithium backup battery with the dock power supply.

Topgun Specifications

Mechanical

Dimensions

  • TopGun
    • Length: 9.0"/229 mm
    • Width at grip: 2.9"/74 mm; 4.0"/102 mm (maximum)
    • Depth: 1.8"/45 mm (maximum)
  • PT Dock
    • Length: 6.1"/155 mm
    • Width: 6.0"/153 mm
    • Height: 4.3"/110 mm

Weight

  • TopGun: 16 oz /480 g (with batteries)
  • PT Dock: 24 oz /720 g (w/o power supply)

Display

  • 4 lines x 16 characters supertwist LCD

Keypad

  • 34 splash-resistant keys with full alphanumeric capability
  • Four programmable function keys

Construction

  • Industrial, high-strength polycarbonate/blend plastic
  • Chemical and splash resistant

Environmental

Temperature rating

  • Operating: 14° to 122° F /-10° to 50° C
  • Storage: -4° to 158° F /-20° to 70° C

Humidity

  • 5 to 95%NC

Shock

  • Multiple 4' /1.2 m drops to concrete

Decoding Capability (autodiscriminates between)

  • UPC A, E /EAN 8, 13 /JAN 8, 13 (extensions)
  • Code 128
  • Code 39
  • Code 93
  • Interleaved 2 of 5
  • Code 39 Full ASCII
  • Codabar

Optical

Light source

  • 650nm Visible Laser Diode (VLD)

Rate

  • 36 ±4 scans/sec. nominal

Scan Angle

  • 42° nominal

Topgun Depth-of-Field Chart (printing resolution, contrast and ambient light dependent *Minimum distance determined by symbol length and scan angle)

Label Density

Typical Range

5 mil

3.0" to 4.5"/8.0 to 11.4 cm

7.5 mil

2.5" to 7.0"/6.0 to 17.8 cm

10 mil

2.5" to 13.0"/6.0 to 33.0 cm

15 mil

2.5" to 19.0"/6.0 to 48.0 cm

20 mil*

2.5" to 21.0"/6.0 to 53.0 cm

40 mil*

2.5" to 30.0"/6.0 to 76.0 cm

55 mil*

3.5" to 36.0"/8.9 to 91.0 cm

Indicators

  • Topgun: Good read; scan
  • PT Dock: Dual LED; Indicates battery charge or unit properly seated in dock

Ambient light immunity

  • Artificial light: 450 ft-candles /4,844 lux
  • Sunlight: 8,000 ft-candles /86,112 lux

Safety and Regulatory

Electrical

  • Complies to CE

Topgun Emissions

  • FCC Part 15 -Class A

Laser

  • CDRH Class 2
  • IEC Laser Class 2

System

Beeper

  • Software programmable speaker volume, duration, and pitch

Topgun Data Communications

  • TopGun: Standard 15-pin D-sub connector
    • Serial (requires serial cable)
      • RS-232C
      • ASCII 7-or 8-bit
      • Selectable Parity
      • 300 to 76,800 baud programmable
      • Supports CTS/RTS and Xon/Xoff
    • Keyboard wedge (requires wedge cables)
      • AT interface
      • PS/2 interface
  • PT Dock: Standard 25-pin D-sub connector
    • Serial (requires serial cable)
      • RS-232C
      • ASCII 7-or 8-bit
      • Selectable Parity
      • 300 to 76,800 baud programmable
      • Supports CTS/RTS and Xon/Xoff
    • Keyboard wedge (requires wedge cables)
      • AT interface
      • PS/2 interface
      • IBM 3151, 3471, 3472, 3476, 3477 terminals

Hardware

  • 16-bit CMOS Microprocessor
  • Real-time Clock and Calendar
  • RAM: 128KB to 2MB
  • FLASH: 128KB

Power

  • TopGun: Two options
    • Three alkaline batteries
    • Nicad rechargeable battery pack
  • Rechargeable lithium backup battery protects RAM and real time clock
  • Low battery message and programmable automatic shutdown
  • PT Dock: Two options
    • 110-volt power supply
    • 220-volt power supply
  • Nicad and internal lithium backup batteries are recharged in the unit
  • Power supply is not needed when using the PT Dock as a wedge
  • Power supply must be purchased separately

Protocols

  • ACK/NAK with drivers for MS-DOS
  • X Modem
  • Carriage return only

Topgun Software

  • Supports programs generated with PSC Program Generator (PPG)
  • Supports floating point math (decimal and exponential notation up to 12 digits)
  • Supports wildcard field search and verification.
