Additional Information
| Interface Options | Ethernet, Parallel, Serial (RS-232), USB |
|---|---|
| Manufacturer AIDC | Datamax-O'Neil |
| Max Roll Outer Diameter | 8 |
| Model Name | H-4212X |
| Print Resolution | 203 dpi |
| Print Speed | 12 ips |
| Printer Type | Industrial |
| Ribbon Core Size | 1 inch |

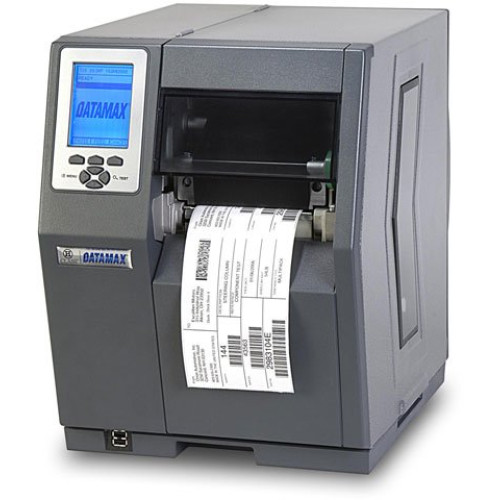

Datamax-O'Neil H-4212X Specs
Technical Information
- Maximum Mono Print Speed: 12 in/s
- Maximum Print Resolution: 200 dpi
- Print Color: Monochrome
- Maximum Print Width: 4.09"
- Recommended Use: Label Print
- Barcode Symbology Supported:
- Code 39
- UPC-A
- UPC-E
- Interleaved 2 of 5
- Code 128
- EAN-8
- EAN-13
- HIBC
- Codabar
- Plessey
- UPC 2 and 5 Digit Extension
- Code 93
- POSTNET
- UCC/EAN 128
- Telepen
- UPS Maxi Code
- FIM
- PDF-417
- USD-8
- Data Matrix
- QR Code
- Aztec Code
- TLC 39
- Micro PDF-417
- RSS
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Brand Name: Datamax
- Manufacturer: Datamax-O'Neil
- Product Model: H-4212X
- Product Name: H-4212X Thermal Label Printer
- Product Line: H-Class
Physical Characteristics
- Height: 16.4"
- Width: 12.6"
- Depth: 19.3"
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
- Parallel Port: Yes
Media Types & Handling
- Maximum Label Width: 9"
- Maximum Label Length: 99"
- Media Type:
- Roll Fed
- Fanfold
- Die-cut Label
- Continuous Label
- Perforated Label
- Continuous Tag
- Ticket Stock
- Media Sensor:
- Transmissive Media Sensor
- Reflective Media Sensor
- Label Core Size: 3"
- Ribbon Core Size: 1"
- Maximum Roll Diameter: 8"
Other
- Platform Supported: PC
- Package Contents:
- Datamax H-4212X Label Pinter
- Accessories CD
- Datamax H-4212X Label Pinter
- Accessories CD
- Certifications & Standards:
- Safety Standard:
- FCC
- CE
- Additional Information:
- Real Time Clock:
- Printer stores time and date with battery backup; Time stamp at print capability
- Graphics Support:
- PCX, .BMP, .IMG, and Datamax ASCII Format files
Memory
- Standard Memory: 16 MB
- Memory Technology: SDRAM
- Flash Memory: 8 MB
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
Network & Communication
- Ethernet: Yes
- Ethernet Technology: Ethernet
Warranty
- Limited Warranty: 2 Year
