Datamax-O'Neil C83-00-48E00004 Barcode Label Printer
Part #: C83-00-48E00004 | SKU: DAT185579

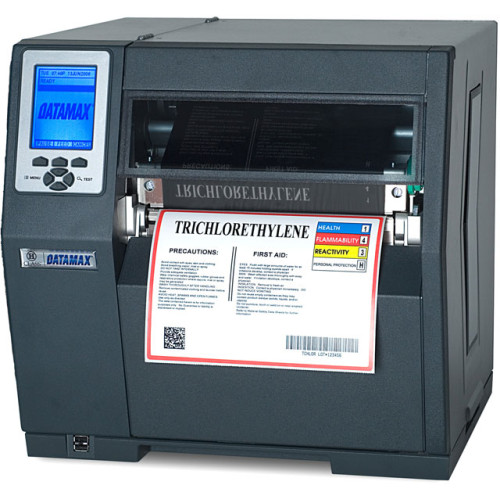

Datamax-O-Neil H-8308X Thermal Transfer Printer (Rewind)

Datamax-O'Neil C83-00-48E00004 Barcode Label Printer

Part Details: H8308X TT BASIC PEEL PRESENT INTERNAL REWIND

Additional Information

Interface Options Ethernet, Parallel, Serial (RS-232), USB
Manufacturer Datamax-O'Neil
Max Roll Outer Diameter 8
Model Name H-8308X
Print Resolution 300 dpi
Print Speed 8 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Ribbon Core Size 1 inch

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 8.52"
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Mirror Printing
    • Rewind
    • Peel Facility
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Industrial 2 of 5
    • Standard 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • EAN-13
    • EAN-8
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Addendums
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • Planet Code
    • FIM
    • USPS-4 State
    • Maxi Code
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Codablock
    • Code 16K
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: H-8308X
  • Product Name: H-Class H-8308X Label Printer
  • Product Line: H-Class

Physical Characteristics

  • Height: 16.4"
  • Width: 17"
  • Depth: 19.3"
  • Form Factor: Desktop
  • Weight (Approximate): 59 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 9"
  • Media Type:
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Continuous Tag
    • Perforated Label
    • Ticket Stock
    • Black Mark
    • Roll Fed
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Package Contents:
    • H-Class H-8308X Label Printer
    • Software CD
    • H-Class H-8308X Label Printer
    • Software CD

Memory

  • Standard Memory: 16 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Fonts & Emulation

  • Language Emulation:
    • PLB
    • PLI
    • PLZ

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD
Extended Details
