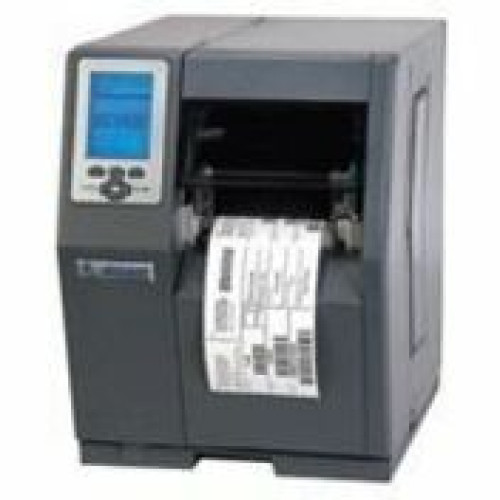

Datamax-O'Neil H-6308 Barcode Printer Part # C93-00-48040004

The Datamax-O-Neil H-Class family is the most advanced and feature-rich printer solution designed for today's dynamic enterprise applications. H-Class printers provide throughput that is up to twice as fast as other printers in its class, and its gear-driven design provides rugged and reliable performance for 24x7 mission-critical service. Modular construction increases up-time for the highest levels of user productivity, and helps provide the lowest cost of ownership. H-Class printers offer the industry's largest graphical display that provides an easy-to-read view for quick navigation and printer notifications. In addition, H-Class printers are designed with options to address evolving RFID applications. The Datamax-O-Neil H-Class - why consider anything else?

C93-00-48040004 - Datamax-O'Neil Datamax-ONeil H-6308 Printer Bar code Printer

Part Details: Datamax-ONeil H-6308 Printer, H6308 8MB TALL BI-TT CUTTER 3 PLASTIC MEDIA HUB
New
MSRP: $5,333.33 Price: $4,249.59
This item is temporarily not in stock but it is available for ordering

Additional Information

Included Features Cutter
Interface Options Ethernet, Parallel, Serial, USB
Label Core 1.5 inches, 3 inches
Manufacturer Datamax-O'Neil
Max Label Width 6.70
Max Roll Outer Diameter 8
Maximum Print Width 6.40
Model Name H-6308
Print Method Thermal Transfer
Print Resolution 300 dpi
Print Speed 8
Printer Mobility Not Mobile
Printer Type Industrial
Product Condition New
Ribbon Core 1

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 6.40"
  • Recommended Use: Label Print
  • Features: Cutter
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: H-6308
  • Product Name: H-6308 Thermal Label Printer
  • Product Line: H-Class

Physical Characteristics

  • Height: 13"
  • Width: 15"
  • Depth: 18.9"

Media Types & Handling

  • Maximum Label Width: 6.70"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Media Thickness: 10 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Other

  • Platform Supported: PC
  • Additional Information: Graphics Support : .PCX, .BMP, .IMG, and Datamax ASCII Format files

Warranty

  • Limited Warranty: 2 Year

Cutter

  • Cutting Method: Automatic
Extended Details

Recommended Accessories

Recommended Labels

  • Datamax Labels Label (420202)

    Duratran II, 2.5" x 1.5" Thermal transfer paper labels. 3600 labels/roll, 8 roll case. Also available as a single roll (Part# 420202-R).
    Price: $164.40
    This item is temporarily not in stock but it is available for ordering
  • Datamax-O'Neil Labels Label (ECL1253-10)

    Electronic Component Labeling, .50" x .4375" Thermal transfer synthetic electronics component label. 5 across. 10000 labels/roll, single roll.
    Price: $80.00
    This item is temporarily not in stock but it is available for ordering
  • Datamax-O'Neil Labels Label (ECL1453-10)

    Electronic Component Labeling, 1.5" x .25" Thermal transfer synthetic electronics component label. 2 across. 10000 labels/roll, single roll.
    Price: $109.80
    This item is temporarily not in stock but it is available for ordering
  • Datamax-O'Neil Labels Label (ECL1753-10)

    2" x 0.25" Thermal transfer Polyester Labels, 10000 labels/roll, Core Size/Inner Diameter: 3", Adhesive: Permanent, Color: White, Price for 1 Roll
    Price: $153.20
    This item is temporarily not in stock but it is available for ordering
  • Datamax-O'Neil Labels Label (ECL0354-10)

    Electronic Component Labeling, .75" x .25" Thermal transfer synthetic electronics component label. 4 across. 10000 labels/roll, single roll.
    Price: $506.80
    This item is temporarily not in stock but it is available for ordering

Recommended Printheads

Recommended Ribbons

  • Datamax-O'Neil PGR Plus Premium Wax/Resin Ribbon (295909)

    Wax-Resin Ribbon, Black, 4.25" x 1182', rolls/case: 24, Core Size: 1", For Use With (Labels): Polypropylene Labels, For Use With (Printer): Industrial, Available as a single roll (295909-R)
    Price: $860.47
    In Stock
  • Datamax-O'Neil PGR Plus Premium Wax/Resin Ribbon (295906)

    Wax-Resin Ribbon, Black, 4" x 1182', rolls/case: 24, Core Size: 1", For Use With (Labels): Polypropylene Labels, For Use With (Printer): Industrial, Available as a single roll (295906-R)
    Price: $809.55
    This item is temporarily not in stock but it is available for ordering
  • Datamax-O'Neil PGR Plus Premium Wax/Resin Ribbon (295907)

    PGR Plus Premium Wax-Resin, 4.5" x 1182' Black Wax-Resin Ribbon. Compatible with Industrial Printers. 24 ribbon case. Used with polypropylene labels. Also available as a roll (Part# 295907-R).
    Price: $910.52
    This item is temporarily not in stock but it is available for ordering
  • Datamax-O'Neil PGR Plus Premium Wax/Resin Ribbon (295904)

    Wax-Resin Ribbon - Black - 3" x 1182' - rolls/case: 24 - Core Size: 1" - For Use With (Labels): Polypropylene Labels - For Use With (Printer): Industrial
    Price: $910.09
    This item is temporarily not in stock but it is available for ordering
  • Datamax-O'Neil PGR Plus Premium Wax/Resin Ribbon (295902)

    PGR Plus Premium Wax-Resin, 2" x 1182' Black Wax-Resin Ribbon. Compatible with Industrial Printers. 36 ribbon case. Used with polypropylene labels. Also available as a single roll (Part# 295902-R).
    Price: $631.70
    This item is temporarily not in stock but it is available for ordering
