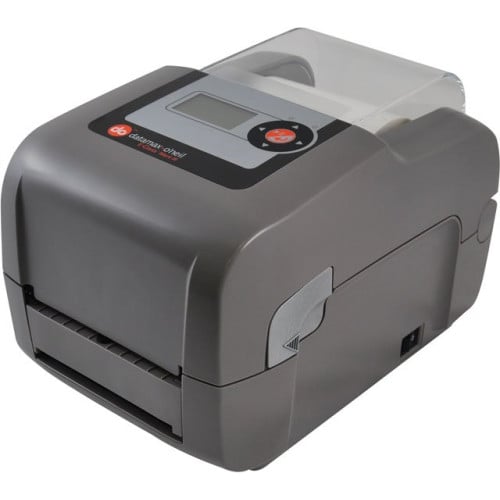

Datamax-O'Neil EP3-00-1J000Q00 Barcode Label Printer
Part #: EP3-00-1J000Q00 | SKU: DAT178162

The Datamax-O-Neil E-4305P is the E-Class professional model and is intended for sophisticated applications that require a higher level of interface capabilities, higher performance, and wireless communications. The E-4305P features 300dpi printing, a graphical display with a navigational menu interface, real time clock, audible alarm, USB host connectivity, faster print speed, and optional wireless LAN and Bluetooth communications.

Datamax-O'Neil EP3-00-1J000Q00 Barcode Label Printer

Part Details: E-4305P, E4305P TT WIRELESS 300DIT 5 ips 64MB FL Serial Parallel USB LAN Real-time clock

Additional Information

Interface Options Ethernet, Parallel, Serial (RS-232), USB, USB Host, Wi-Fi
Manufacturer Datamax-O'Neil
Max Roll Outer Diameter 5
Model Name E-4305P
Print Resolution 300 dpi
Print Speed 5 ips
Printer Type Desktop
Printing Technology Thermal Transfer
Ribbon Core Size 0.5 inch, 1 inch

Technical Information

  • Maximum Mono Print Speed: 5 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Features: Real Time Clock
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Addendums
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • K-Mart NON EDI
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • Data Matrix
    • QR Code
    • Aztec Code
    • GS1 DataBar
    • TCIF
    • TLC 39
    • Micro PDF-417

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax
  • Manufacturer: Datamax-O'Neil
  • Product Model: E-4305P
  • Product Name: E-Class E-4305P Mark III Label Printer
  • Product Line: E-Class

Physical Characteristics

  • Height: 7.4"
  • Width: 8"
  • Depth: 11.1"
  • Form Factor: Desktop
  • Weight (Approximate): 5.29 lb
  • Color: Warm Gray

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.40"
  • Media Type:
    • Continuous Label
    • Fanfold
    • Roll Paper
    • Gap
    • Black Bar
    • Notch
  • Media Thickness: 10 mil
  • Media Sensor: Adjustable Media Sensor
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 5"

Fonts & Emulation

  • Language Emulation:
    • PLB
    • PLE
    • PLI
    • PLZ

Memory

  • Standard Memory: 32 MB
  • Memory Technology: DRAM
  • Flash Memory: 64 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Display & Graphics

  • Display Screen Type: LCD

Other

  • Platform Supported: PC

Warranty

  • Limited Warranty: 1 Year

Power Description

  • Power Source: Battery
Extended Details
