Datamax-O'Neil G83-00-21000007 Barcode Label Printer Datamax-O'Neil G83-00-21000007 Barcode Label Printer

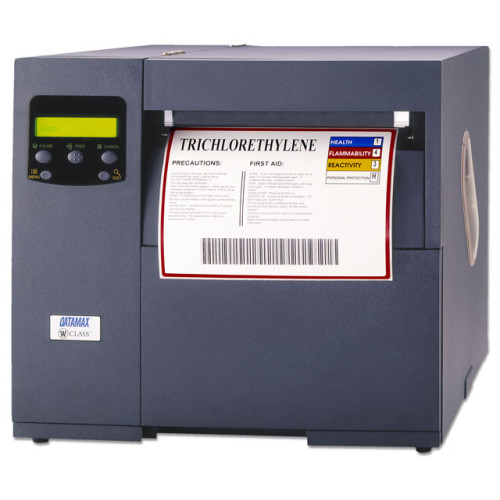

Datamax-O'Neil G83-00-21000007 Barcode Label Printer
Part #: G83-00-21000007 | SKU: DAT282

The DMX W-8306 is a perfect printer for applications that require large durable labels. It is equipped with a 32-bit 90-MHz true multi-tasking Motorola ColdFire processor and 16MB of standard memory which provides accelerated first-label output and variable-data printing. Typical industries that use this printer are the lumber chemical automotive and clinical industries.

Datamax-O'Neil G83-00-21000007 Barcode Label Printer

Part Details: Thermal transfer Printer (300 dpi, 8 in. Print width, 6 ips Print speed, Serial and Parallel Interfaces, Wide Web and 3 inch Media Hub)
Need a different version of the Datamax-O'Neil W-8306 Barcode Label Printer? View all 5 configurations

Additional Information

Interface Options Parallel, Serial (RS-232)
Manufacturer Datamax-O'Neil
Max Roll Outer Diameter 8
Model Name W-8306
Print Resolution 305 dpi
Print Speed 6 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Datamax-O'Neil W-8306 Specs Datamax-O'Neil W-8306 Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 300 dpi
  • Maximum Print Width: 8.53"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: W-8306
  • Product Name: W-8306 Thermal Label Printer
  • Product Line: W-Class

Physical Characteristics

  • Height: 14.8"
  • Width: 16.1"
  • Depth: 18.5"

Interfaces/Ports

  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 9"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Form
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Certifications & Standards:
    • Safety Standards:
    • UL
    • Canadian
    • European
    • Emissions Standard:
    • CE
    • FCC Class A
  • Additional Information:
    • Graphics Supported: .PCX, .BMP and .IMG files
    • Media Sensing: Adjustable sensor detects "see through" for liner-backed die-cut labels and tags or reflective sensing for media with black stripe sensing.

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 2 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Fonts & Emulation

  • Language Emulation: DPL
Extended Details
