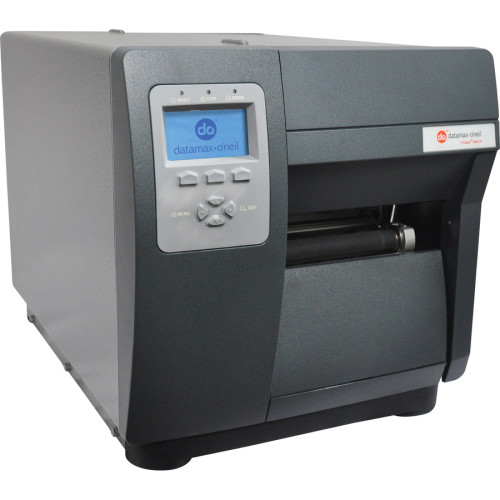

Datamax-O'Neil I13-00-46000L07 Barcode Label Printer Datamax-O'Neil I13-00-46000L07 Barcode Label Printer

Datamax-O'Neil I13-00-46000L07 Barcode Label Printer
Part #: I13-00-46000L07 | SKU: DAT241886

The Datamax-O-Neil I-4310e Mark II offers the fastest processor, largest memory and widest selection of communication ports available in a mid-range printer, the I-4310e Mark II provides lower operating costs and flawless print quality. For applications as diverse as shipping and receiving, product identification, pharmacy labeling and asset tracking, the I-4310e Mark II will maintain its reputation for providing outstanding for performance, reliability and value.

Datamax-O'Neil I13-00-46000L07 Barcode Label Printer

Part Details: I-4310e Mark II, 4"-300 dpi, 10 IPS, THERMAL TRANSFER BARCODE PRINTER WITH SERIAL, PARALLEL, USB, Real-time clock, LAN, MEDIA HUB, BRITISH & EUROPEAN PLUG
Need a different version of the Honeywell I-4310e Barcode Label Printer? View all 19 configurations

Additional Information

Interface Options Ethernet, Parallel, Serial (RS-232), USB
Manufacturer Datamax-O'Neil
Max Roll Outer Diameter 8
Model Name I-4310e
Print Resolution 300 dpi
Print Speed 10 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Ribbon Core Size 1 inch
Datamax-O'Neil I-4310e Specs Datamax-O'Neil I-4310e Specs (pdf) Datamax-O'Neil I-4310e Driver Datamax-O'Neil I-4310e Driver (download)

Technical Information

  • Maximum Mono Print Speed: 10 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.16"
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Media Supply Hub
    • Rotate Printing
    • Mirror Printing
  • Barcode Symbology Supported:
    • Data Matrix
    • POSTNET
    • PDF-417
    • Interleaved 2 of 5
    • UCC/EAN 128
    • Code 16K
    • Code 11
    • Code 3 of 9
    • Code 128
    • Codabar
    • Code 93
    • Micro PDF-417
    • Industrial 2 of 5
    • Telepen
    • UPC-E
    • EAN/JAN-8
    • UPC-A
    • EAN/JAN-13
    • Standard 2 of 5
    • Plessey
    • USD-8
    • Planet Code
    • HIBCC
    • TLC 39
    • GS1 DataBar
    • Maxi Code
    • QR Code
    • Aztec Code
    • FIM

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: I-4310e
  • Product Name: I-Class Mark II I-4310e Label Printer
  • Product Line: I-Class

Physical Characteristics

  • Height: 12.7"
  • Width: 12.6"
  • Depth: 18.6"
  • Form Factor: Desktop
  • Weight (Approximate): 45.20 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Continuous Paper
    • Continuous Form
    • Fanfold
    • Perforated Label
    • Die-cut Label
    • Tag Stock
    • Ticket
    • Label
  • Media Thickness: 10 mil
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Memory

  • Standard Memory: 32 MB
  • Memory Technology: SDRAM
  • Flash Memory: 64 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Display & Graphics

  • Display Screen Type: LCD

Fonts & Emulation

  • Language Emulation: DPL

Other

  • Platform Supported: PC

Power Description

  • Power Source: AC Supply
Extended Details

Recommended Accessories for Model: Datamax-O'Neil I13-00-46000L07 Barcode Label Printer

  • Honeywell 1-974028-025 Power Device
    Part #: 1-974028-025 | SKU: HON20787

    AC line cord
    Price: $21.31
    In Stock

  • Honeywell PHD20-2182-01 Printhead
    Part #: PHD20-2182-01 | SKU: HON81346

    Printhead Kit For Printer Model I-4308 Label Printer - Print Resolution 300 dpi
    MSRP: $1,090.28 Price: $787.33
    In Stock

  • Honeywell ROL15-2761-04 Accessory
    Part #: ROL15-2761-04 | SKU: HON269207

    Platen Roller Assembly Kit, Single Pack, Compatible with Datamax-O'Neil I-Class Printers
    MSRP: $114.46 Price: $75.21
    In Stock

  • Honeywell DPO78-2394-01 Accessory
    Part #: DPO78-2394-01 | SKU: HON28103

    DMXREW1, The DMX-REW1 is a low-cost universal label rewinder/unwinder supporting labels up to 5 inches wide at speeds of up to 15 ips (inches per second). Any rewind core from 1 inch to 4 inches in diameter can be used. Label rolls up to 8 inches in diameter can be accommodated.
    MSRP: $777.80 Price: $519.29
    In Stock

  • Honeywell PHD20-2278-01 Printhead
    Part #: PHD20-2278-01 | SKU: HON242019

    Replacement Printhead Kit, 203 dpi, Compatible with Honeywell I-4212E MARK II
    MSRP: $1,113.16 Price: $803.86
    In Stock
View All Options

Recommended Labels for Model: Datamax-O'Neil I13-00-46000L07 Barcode Label Printer

  • Honeywell 420202 Barcode Label
    Part #: 420202 | SKU: HON55587

    Duratran II, 2.5" x 1.5" Thermal transfer paper labels. 3600 labels/roll, 8 roll case. Also available as a single roll (Part# 420202-R).

  • Honeywell ECL0353-10 Barcode Label
    Part #: ECL0353-10 | SKU: HON84547

    Datamax-O'Neil Glossy Electronic Component Label - 3/4" x 1/4" Length - Rectangle - Thermal Transfer - White - Polyester - 10000 / Roll - 1 Pack. Minimum Order Quantity: $350

  • Honeywell ECL1253-10 Barcode Label
    Part #: ECL1253-10 | SKU: HON106511

    Electronic Component Labeling, .50" x .4375" Thermal transfer synthetic electronics component label. 5 across. 10000 labels/roll, single roll. Minimum Order Quantity: 2 rolls.

  • Honeywell ECL1753-10 Barcode Label
    Part #: ECL1753-10 | SKU: HON106516

    2" x 0.25" Thermal transfer Polyester Labels, 10000 labels/roll, Core Size/Inner Diameter: 3", Adhesive: Permanent, Color: White, Price for 1 Roll

  • Honeywell ECL0354-10 Barcode Label
    Part #: ECL0354-10 | SKU: HON106546

    Electronic Component Labeling, .75" x .25" Thermal transfer synthetic electronics component label. 4 across. 10000 labels/roll, single roll.
View All Options

Recommended Printheads for Model: Datamax-O'Neil I13-00-46000L07 Barcode Label Printer

  • Honeywell PHD20-2182-01 Printhead
    Part #: PHD20-2182-01 | SKU: HON81346

    Printhead Kit For Printer Model I-4308 Label Printer - Print Resolution 300 dpi
    MSRP: $1,090.28 Price: $787.33
    In Stock

  • Honeywell PHD20-2279-01 Printhead
    Part #: PHD20-2279-01 | SKU: HON175406

    Printhead Kit For Printer Model I-4310 Mark II, Print Resolution 300 dpi
    MSRP: $1,362.85 Price: $986.06
    In Stock

  • Honeywell 20-2182-01 Printhead
    Part #: 20-2182-01 | SKU: HON6180

    I-4308, Replacement printhead, 305 dpi.
    MSRP: $1,090.28 Price: $787.33
    In Stock

  • Honeywell PHD20-2281-01 Printhead
    Part #: PHD20-2281-01 | SKU: HON175407

    Printhead Kit For Printer Model I-Class Mark II, Print Resolution 609 dpi

  • Datamax-O'Neil DPO20-2181-01 Printhead
    Part #: DPO20-2181-01 | SKU: DAT22275

    I-Class, Replacement printhead, 203 dpi (post-2002 printers).
View All Options

Recommended Ribbons for Model: Datamax-O'Neil I13-00-46000L07 Barcode Label Printer

  • Honeywell 221917 Ribbon
    Part #: 221917 | SKU: HON104186

    4.33" x 1182' Black Resin Ribbon - Compatible with Industrial printers and Polyester Labels - Rolls per Case: 12 - Core Size: 1" - Available as a single roll (221917-R). Minimum Order Quantity: $350
View All Options

Recommended Warranties for Model: Datamax-O'Neil I13-00-46000L07 Barcode Label Printer

  • BCI TRUESUPPORT-BAS-PRINT-1YR Service Contract
    Part #: TRUESUPPORT-BAS-PRINT-1YR | SKU: BCI665134

    TrueSupport Basic Plan for Printers - 1 Year - Includes: Hardware Help Desk Support, RMA Triage, OEM Service contract mgmt.
    Price: $66.00
    In Stock
View All Options
