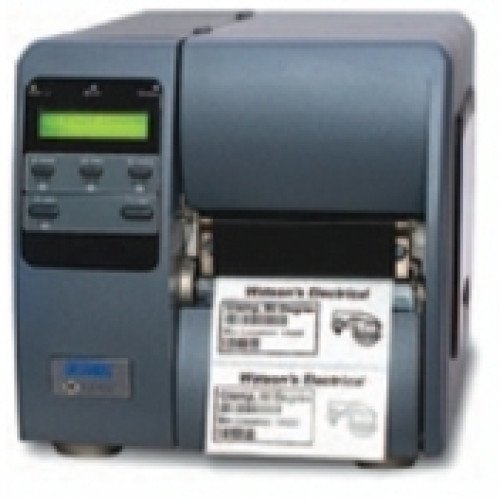

Datamax-O'Neil K22-00-18000L01 Barcode Label Printer Datamax-O'Neil K22-00-18000L01 Barcode Label Printer

Datamax-O'Neil K22-00-18000L01 Barcode Label Printer
Part #: K22-00-18000L01 | SKU: DAT9069

Since the introduction of the M-Class line, countless users have discovered the benefits of incorporating a sturdy, well-designed printer into mid-volume, high-performance printing applications. Users in the medical, manufacturing, government, retail and food processing sectors have embraced the M-Class, making it the most successful mid-range printer available on the thermal printer market today. The M-Class design is based on elements borrowed from the industry-leading Datamax I-Class printers, featuring a die-cast aluminum chassis to enhance durability and performance. The compact, modular design enables high-performance printing while allowing users to allocate less space to their printing capabilities. The M-Class features a robust option set including thermal transfer, internal rewind, cutter, and peel and present allowing compliance with the most demanding applications, and a value that goes far beyond what most users expect when budgeting for printer purchases.

Datamax-O'Neil K22-00-18000L01 Barcode Label Printer

Part Details: Thermal transfer Printer (203 dpi, 4 inch Print width, 8 ips Print speed, Internal Ethernet Interface, 2MB Flash and Metal Case)
Need a different version of the Datamax-O'Neil M-4208 Barcode Label Printer? View all 5 configurations

Additional Information

Interface Options Ethernet, Serial (RS-232), USB
Manufacturer Datamax-O'Neil
Max Roll Outer Diameter 8
Model Name M-4208
Print Resolution 203 dpi
Print Speed 8 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Ribbon Core Size 1 inch
Datamax-O'Neil M-4208 Specs Datamax-O'Neil M-4208 Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 203 dpi
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • TLC 39
    • Aztec Code
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: M-4208
  • Product Name: M-4208 Thermal Label Printer
  • Product Line: M-Class

Physical Characteristics

  • Height: 10.3"
  • Width: 9.8"
  • Depth: 18.1"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • M-4208 Label Printer
    • Accessories CD
    • Black Power Cord With US Plug
    • M-4208 Label Printer
    • Accessories CD
    • Black Power Cord With US Plug
  • Certifications & Standards:
    • Safety Standards:
    • UL
    • Canadian
    • European
    • Emission Standards:
    • CE
    • FCC Class A
  • Additional Information:
    • On-board Real Time Clock
    • Graphics supported .PCX, .BMP and .IMG files
    • 8" outer diameter on a 3.0" core and 7" on a 1.5" core

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Maximum Label Length: 99"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Memory

  • Standard Memory: 8 MB
  • Memory Technology: DRAM
  • Flash Memory: 2 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year
Extended Details
