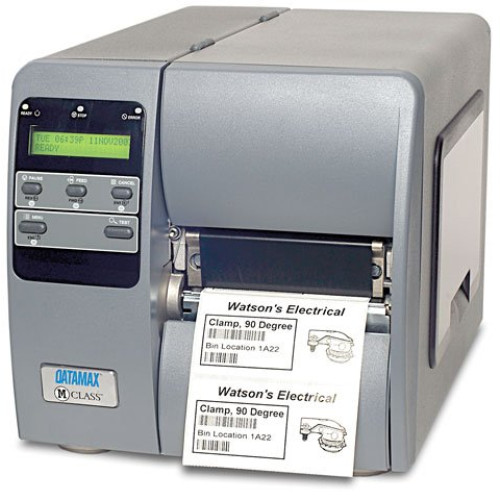

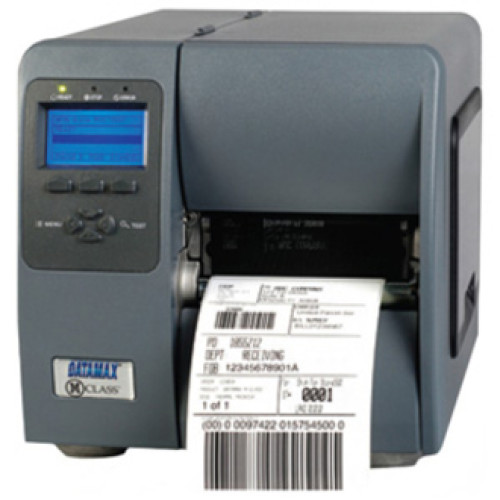

Datamax-O'Neil M-4308 Barcode Label Printer Part # KA3-00-48000Y00

The Datamax-O-Neil M-4308 offers users a durable, technologically advanced thermal printer featuring a 300 dpi resolution and an 8 ips printing speed with the design principles that have proven successful in other Datamax-O-Neil printers, in a smaller footprint for use in emerging market applications. The M-4308 is the most feature-rich printer available to address the desktop/light industrial marketplace with the performance and value required in these applications.

KA3-00-48000Y00

Part Details: M-4308 Mark II, Thermal transfer Printer (Bi-Directional and Internal LAN)
New

Additional Information

Filter Filter
Interface Options Ethernet, Parallel, Serial, USB
Label Core 1.5 inches, 3 inches
Manufacturer Datamax-O'Neil
Max Label Width 4.65
Max Roll Outer Diameter 8
Maximum Print Width 4.25
Model Name M-4308
Print Method Direct Thermal, Thermal Transfer
Print Resolution 300 dpi, 305 dpi
Print Speed 8
Printer Mobility Not Mobile
Printer Type Industrial
Product Condition New
Ribbon Core 1

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Rewinder
    • Tear-off
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: Mark II M-4308
  • Product Name: M-Class Mark II M-4308 Thermal Label Printer
  • Product Line: M-Class

Physical Characteristics

  • Height: 10.2"
  • Width: 10.1"
  • Depth: 18.2"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
    • Black Mark
  • Media Thickness: 10 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: DRAM
  • Flash Memory: 8 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 2 Year

Other

  • Platform Supported: PC

Fonts & Emulation

  • Language Emulation: DPL
Extended Details
