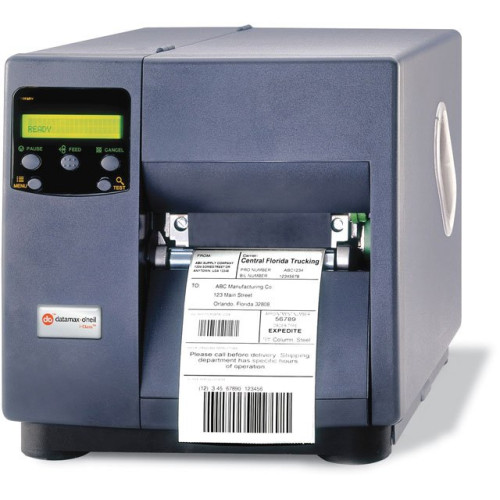

Datamax-O'Neil R23-00-08000007 Barcode Label Printer Datamax-O'Neil R23-00-08000007 Barcode Label Printer

Datamax-O'Neil R23-00-08000007 Barcode Label Printer
Part #: R23-00-08000007 | SKU: DAT206

The DMX-I-4308 is perfect for applications that demand printing very small labels high-resolution graphics or two-dimensional bar codes. Some applications the I-4308 can be used for are producing small labels for tracking small parts with high resolution bar code labels printing high quality graphics for identifying wiring harnesses or adding an intricate Datamatrix or PDF-417 bar code label to a package.

Datamax-O'Neil R23-00-08000007 Barcode Label Printer

Part Details: Direct thermal Printer (300 dpi, 4.1 inch Print width, 8 ips with Serial and Parallel Interfaces)
Need a different version of the Datamax-O'Neil I-4308 Barcode Label Printer? View all 14 configurations

Additional Information

Interface Options Parallel, Serial (RS-232)
Manufacturer Datamax-O'Neil
Max Roll Outer Diameter 8
Model Name I-4308
Print Resolution 305 dpi
Print Speed 8 ips
Printer Type Industrial
Printing Technology Direct Thermal
Ribbon Core Size 1 inch
Datamax-O'Neil I-4308 Specs Datamax-O'Neil I-4308 Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 300 dpi
  • Maximum Print Width: 4.16"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-13
    • EAN-8
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: I-4308
  • Product Name: I-4308 Thermal Label Printer
  • Product Line: I-Class

Physical Characteristics

  • Height: 12.7"
  • Width: 12.6"
  • Depth: 18.6"

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Maximum Label Length: 99"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Certifications & Standards:
    • UL, Canadian, and European safety standards
    • FCC Class A emissions standard
    • CE Mark
  • Additional Information:
    • Character Set: Modified IBM Code Page 850
    • Graphics Support: .PCX, .BMP and .IMG files
    • Rotation: Fonts and graphics can be printed in four directions: 0°, 90°, 180° and 270°
    • Media Sensor: Adjustable sensor detects "see through" for liner-backed die-cut labels and tags or reflective sensing for media with black stripe sensing.

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 2 MB
Extended Details
