Datamax-O'Neil XD1-00-07000000 Barcode Label Printer
Part #: XD1-00-07000000 | SKU: DAT101126

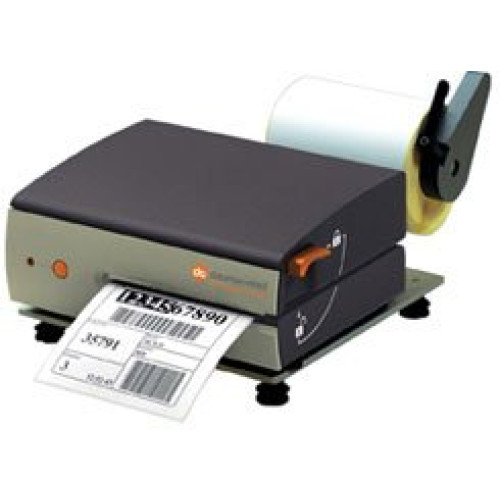

The Datamax-O-Neil MP Compact4 Mobile Mark II printer features a small footprint, industrial grade ruggedness, and high mobility which make it the perfect printer for lift truck and mobile cart printing solutions. The MP Compact4 Mobile Mark II is constructed on a solid cast metal frame and protected with metal die cast covers. Unlike other small printers, the MP Compact4 Mobile Mark II industrial printers are built to withstand the rigors of a warehouse or high volume printing application. Loading paper is easy too: The levers are large and easy to manage - so easy that the operation can be done single handed while wearing a leather or latex glove. The paper path is slotted through the side of the printer with no covers to open or clamshells to unlock. A variety of interface options is available.

Datamax-O'Neil XD1-00-07000000 Barcode Label Printer

Part Details: MP Compact4 Mobile Mark II, Mobile Printer, Direct thermal, Serial/Parallel/USB, Real-time clock, 4MB Flash/8MB DRAM, 200 dpi, 5"/sec print speed

Need a different version of the Datamax-O'Neil MP Compact4 Mobile Mark II Barcode Label Printer? View all 4 configurations

Additional Information

Interface Options	Ethernet, Parallel, Serial (RS-232), USB
Manufacturer AIDC	Datamax-O'Neil
Max Roll Outer Diameter	3.9, 4
Model Name	MP Compact4 Mobile Mark II
Print Resolution	203 dpi
Print Speed	5 ips
Printer Type	Forklift, Mobile
Printing Technology	Direct Thermal

Datamax-O'Neil MP Compact4 Mobile Mark II Specs (pdf)

Technical Information

Maximum Mono Print Speed: 4.90 in/s
Maximum Print Resolution: 200 dpi
Print Color: Monochrome
Maximum Print Width: 4.10"
Recommended Use: Label Print
Features: Real Time Clock
Barcode Symbology Supported:
- QR Code
- PDF-417
- Data Matrix
- Maxi Code
- EAN-13

General Information

Product Type: Direct Thermal Printer
Product Series: MP
Brand Name: Datamax-O'Neil
Manufacturer: Datamax-O'Neil
Product Model: Compact4 Mark II
Product Name: Compact4 Mark II Mobile Label Printer

Physical Characteristics

Height: 4.9"
Width: 9.1"
Depth: 10.2"
Form Factor: Portable

Interfaces/Ports

USB: Yes
Serial Port: Yes

Media Types & Handling

Maximum Label Width: 4.50"
Media Type:
- Die-cut Label
- Continuous Label
- Fanfold
- Ticket
- Tag
Media Thickness: 7.10 mil
Label Core Size: 1.57"
Maximum Roll Diameter: 3.90"

Memory

Standard Memory: 2 MB
Memory Technology: DRAM
Flash Memory: 2 MB

Network & Communication

Ethernet: Yes
Ethernet Technology: Ethernet

Other

Platform Supported: PC

Extended Details
