Digi 301-1000-10 Data Networking
Part #: 301-1000-10 | SKU: DIG18526

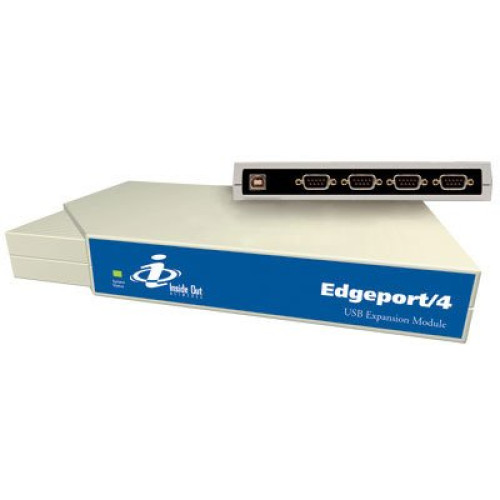

Edgeport USB-to-serial converters offer an easy Plug and Play solution for COM port expansion. An out-of-the-box (external) alternative to PCI cards, the Edgeport connects via USB to a PC or server, eliminating the need to open the chassis, reconfigure and reboot. Simply plug in the Edgeport and in a matter of minutes gain up to 16 serial ports to connect bar-code scanners, printers, or any serial peripheral device.

Digi 301-1000-10 Data Networking

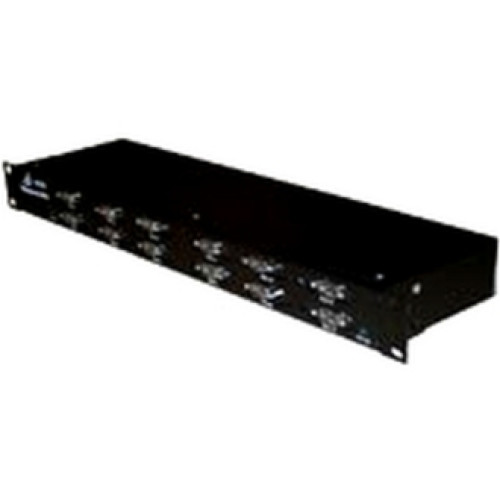

Part Details: Edgeport (416/DB-9 Rack Mount USB to 4 USB, 16 Port EIA-232)

Need a different version of the Digi Edgeport USB-to-Serial Converter Data Networking? View all 14 configurations

Additional Information

Manufacturer	Digi
Model Name	Edgeport USB-to-Serial Converter

Digi Edgeport USB-to-Serial Converter Specs (pdf)

General Information

Product Type: Multiport Serial Adapter
Brand Name: Digi
Manufacturer: Digi International
Product Name: Edgeport/416 Multiport Serial Adapter
Product Line: Edgeport
Packaged Quantity: 1

Technical Information

Host Interface: USB
Buffer: 64 Byte Per Port
Baud Rate: 230 Kbps (Maximum)
Protocols: RS-232

Physical Characteristics

Height: 5"
Width: 17"
Form Factor: Rack-mountable Hot-swappable
Dimensions: 1.8" Height x 17" Width x 5" Depth
Thickness: 1.8"
Weight (Approximate): 2.58 lb

Interfaces/Ports

Ports: 4 x 4-pin Type A - USB
Ports Expandability: 16 x 9-pin DB-9 Male RS-232 - Serial, Via Cable

Other

Cable Information: Type A 3.30 ft USB Cable
Package Contents:
- Ship with plugmounted 120/230VAC 60/50Hz at 5Vdc@3Amps max
- 1 x USB cable - 3.3 ft
- Ship with plugmounted 120/230VAC 60/50Hz at 5Vdc@3Amps max
- 1 x USB cable - 3.3 ft
Certifications & Standards:
- Plug-and-play
- FCC Part 15 Class B
- CE
- EN55022, Class B, 50082-1, 55024, 60950
- UL 1950
- CSA No. 950
Compatibility: PC
System Requirements:
- Windows 95 (OSR2), 98, SE, 2000, Me, CE, XP, XP Embedded, NT 4.0, NT Embedded; Linux; Macintosh
- 1 USB type A (downstream) port
Additional Information:
- Tri-state LED displays device status and COM port activity
- Automatic port reacquisition
- Remotely located host PC increases security, creates system redundancy
- Full hardware and software flow control
- No additional IRQ or memory address requirements
- Rugged metal enclosure

Warranty

Limited Warranty: 5 Year
Additional Warranty Information: Money back guarantee - 30 days

Environmental Conditions

Humidity: 0 to 95% Non-condensing Relative Humidity Operating
Temperature: 32°F (0°C) to 131°F (55°C) Operating

Power Description

Input Current: 3 A Maximum @ 5 V DC
Input Voltage: 120 V AC to 230 V AC
