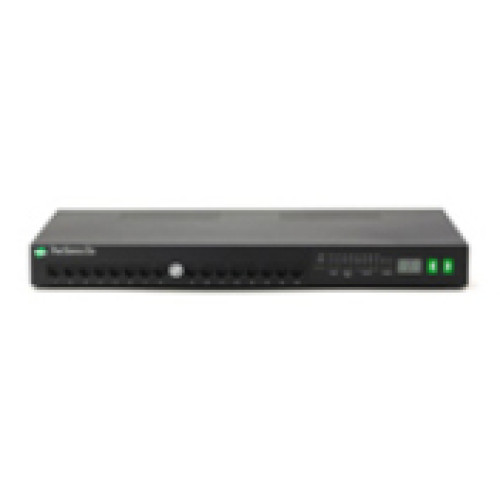

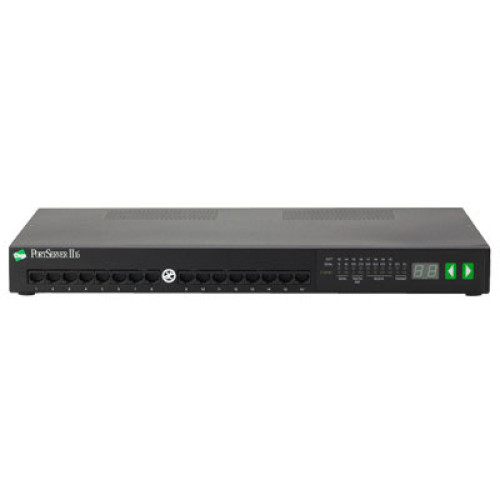

Digi 70000901 Data Networking
Part #: 70000901 | SKU: DIG18565

The PortServer II is a high performance communications server allowing the user to connect clusters of 16 to 64 high-speed serial ports to any TCP/IP Ethernet network. It supports asynchronous terminals, modems, printers, and other serial devices. The PortServer II is hardware independent, allowing users to access any type of networked server supporting TCP/IP. As with all Digi terminal server products, the PortServer II incorporates Digi's patented RealPort software which provides local serial port functionality as well as incoming and outgoing Rlogin and Telnet sessions on each port. The Digi Port Authority - Remote (DPA-Remote) gives PortServer II users a management tool for monitoring network and serial activity from a Windows or UNIX-based client or server.

Digi 70000901 Data Networking

Part Details: 16 (16 RJ45 - 16-Port TERM Server, Serial to Ethernet)

Need a different version of the Digi PortServer II Data Networking? View all 1 configurations

Additional Information

Manufacturer	Digi
Model Name	PortServer II

Digi PortServer II Specs (pdf)

General Information

Product Type: Terminal Server
Brand Name: Digi
Manufacturer: Digi International
Product Name: PortServer II 16 Terminal Server
Product Line: PortServer

Physical Characteristics

Height: 2.2"
Width: 12"
Depth: 8.8"
Weight (Approximate): 2.20 lb
Color:
- Black
- Green

Interfaces/Ports

Number of Network (RJ-45) Ports: 17
Network (RJ-45): Yes

Other

Certifications & Standards:
- FCC Part 15, Class B
- EN55022, Class B
- AS3548
- EN50082-2
- EN 60950
- UL 1950
- CSA 22.2 No 950
Additional Information:
- 115.2 Kbps throughput on asynchronous ports
- Digi RealPort software provides local serial port functionality
- Connectivity Technology: Cable
- Ports may be shared between multiple hosts running different operating systems
- Cost-effective Frame Relay can connect remote PortServer II terminal servers to a central site
- 56 Kbps on synchronous WAN ports
- LAN-to-LAN routing with RIP
- Power Supply Form Factor: External
- Password access, PAP, CHAP and RADIUS security
- External logging and tracking
- Automatic IP configuration through RARP and BootP
- Solaris Ready<br><br> Digi Port Authority Remote:
- Remote monitoring application
- Status ports
- Status Ethernet<br><br> Realport Software:
- Local emulation of UNIX TTY and Microsoft COM ports
- Transparent printing under UNIX
- Single TCP/IP connection per 16 port block reduces Ethernet traffic and minimizes host CPU utilization

Power Description

Input Voltage:
- 110 V AC
- 220 V AC

Processor & Chipset

Processor Manufacturer: IDT
Processor Speed: 20 MHz

Warranty

Limited Warranty: 5 Year

Media & Performance

Media Type Supported: Coaxial

Extended Details
