Digi 70001430 Data Networking
Part #: 70001430 | SKU: DIG80002

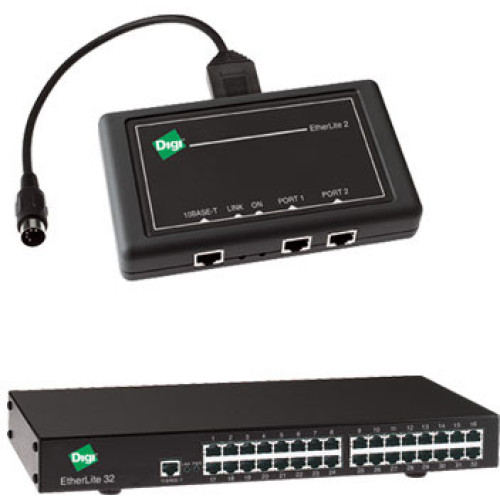

The EtherLite family blends the control and performance of asynchronous serial communications with the convenience of an Ethernet connection. Available in two- to 32-port versions, the traffic from all serial ports is serviced by a single TCP/IP session. The EtherLite network serial concentrator connects asynchronous serial ports to your network. It replaces the installation of serial adapters in servers for applications in retail/POS, process control, data collection and console management of clusters, routers, hubs, switches, PBXs and other networking devices with console ports.

Digi 70001430 Data Networking

Part Details: EtherLite, 2 Terminal Server (2-Port, RJ45 Serial to Ethernet)

Need a different version of the Digi EtherLite Data Networking? View all 3 configurations

Additional Information

Manufacturer	Digi
Model Name	EtherLite

Digi EtherLite Specs (pdf)

General Information

Product Type: Terminal Server
Brand Name: Digi
Manufacturer: Digi International
Product Name: EtherLite 2 Terminal Server
Product Line: EtherLite

Physical Characteristics

Height: 1.2"
Width: 6.3"
Depth: 3.8"
Weight (Approximate): 8 oz
Color: Black

Interfaces/Ports

Number of Network (RJ-45) Ports: 3
Network (RJ-45): Yes

Other

Certifications & Standards:
- FCC Class A
- CE Mark
- DOC Class A
Additional Information:
- Heat Flow Rate: 62 BTU/hr
- Built-in Devices Status: LCD
- Connectivity Technology: Cable
- Expansion Slots Total (Free): 1 ( 1 ) x expansion slot
- Multiple concurrent Telnet/SSH sessions (essentially unlimited)
- OpenSSH v2 server
- OpenLDAP
- NIS
- No inadvertent breaks - Solaris Ready
- Field-programmable flash for software updates
- Access ports via 10/100 Base-T network connection or serial port
- Optional Modem supports PPP, PAP, CHAP, Call Back
- Secure Access to administration functions from terminal, modem port, or over the network
- OptID/password security
- Configurable access rights

Power Description

Input Voltage:
- 110 V AC
- 220 V AC

Memory

Standard Memory: 512 KB
Memory Technology: SRAM

Warranty

Limited Warranty: 5 Year

Processor & Chipset

Processor Speed: 40 MHz

Extended Details
